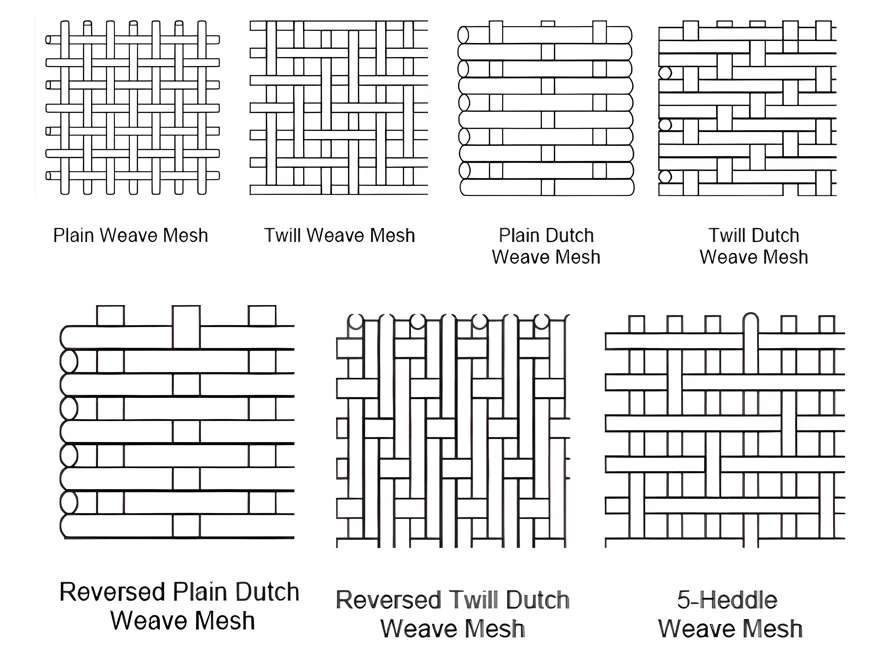

Plain Weave
The most common and straightforward weaving method, where each warp wire passes alternately over and under each weft wire. This produces a square mesh with uniform openings, excellent dimensional stability, and good strength. Plain weave is economical to produce and ideal for general screening, sorting, and filtration applications.
Twill Weave
In this pattern, each wire passes alternately over two and under two perpendicular wires, creating a distinctive diagonal rib pattern. This allows the use of heavier wires while maintaining the same mesh count, resulting in a tighter, more robust mesh. Twill weave offers improved strength, flexibility, and finer filtration capabilities compared to plain weave.
Plain Dutch / Twill Dutch Weave
A specialized weave combining a coarse warp wire with a finer weft wire, producing a mesh with very small openings and high density. Plain Dutch weave is commonly used for medium-fine filtration, while Twill Dutch weave, with its twill structure, achieves even finer filtration and higher mechanical strength. Both are excellent for liquid and gas filtration where precision and durability are critical.
Reverse Weave
The opposite of the standard Dutch weave: the warp wires are finer and more numerous, while the weft wires are heavier and fewer. This structure offers greater mechanical strength, superior pressure resistance, and excellent flow control, making it ideal for high-pressure liquid and gas filtration.
Five-Heddle Weave
A more complex weave in which each warp wire passes alternately over four and under one weft wire. This produces a smoother, flatter surface with minimal openings, which reduces clogging and makes cleaning easier. Five-heddle weave meshes are particularly valued in applications where hygiene, easy maintenance, and a uniform surface finish are important.

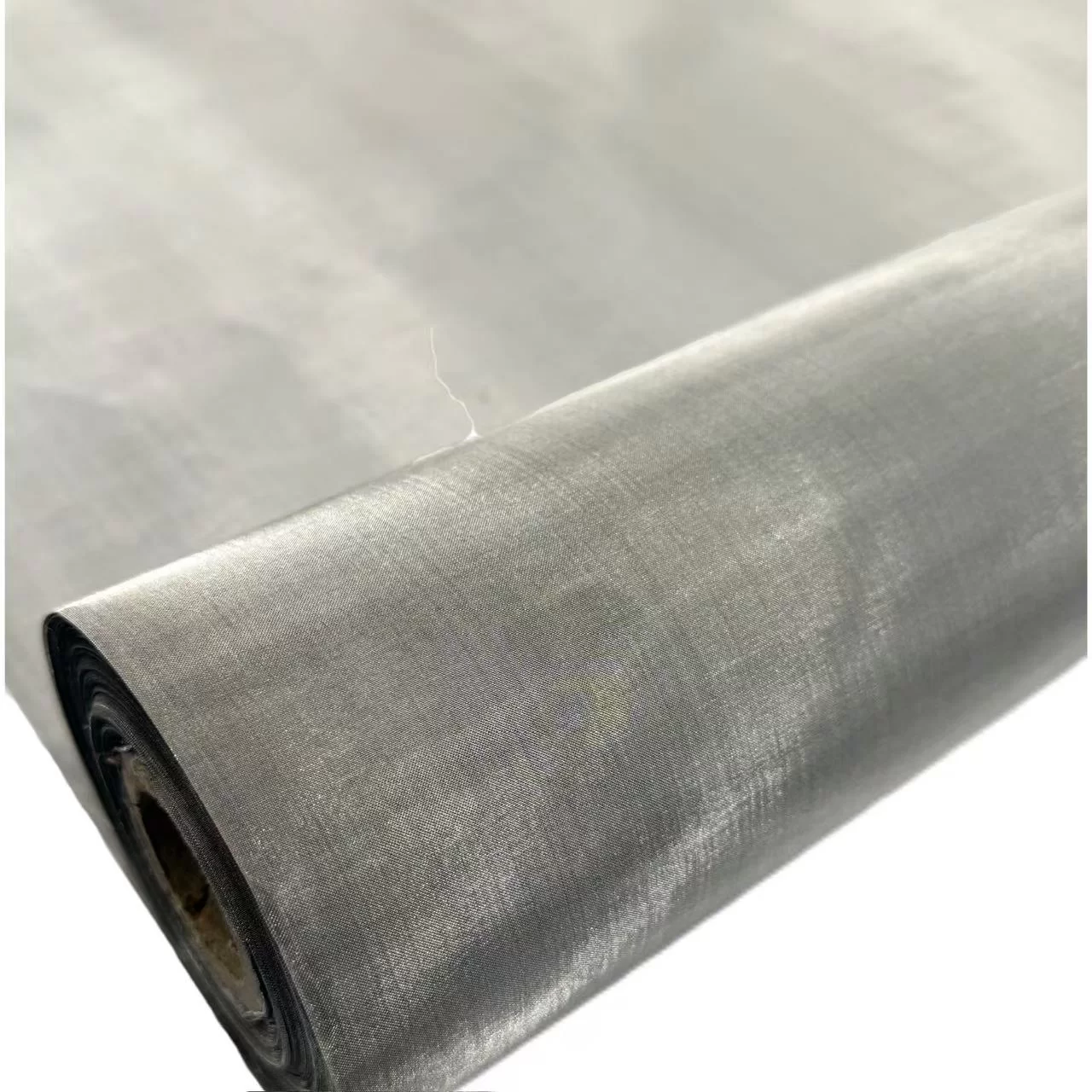

Specifications Of Stainless Steel Woven Wire Mesh
Material
304 Stainless Steel – standard grade, good corrosion resistance and strength.
316 Stainless Steel – marine-grade, enhanced chloride resistance.
310, 321, 904L, Duplex SS – for high-temperature or aggressive chemical environments.
Mesh Count
Coarse: 1–10 mesh – features large openings suitable for preliminary screening, removal of oversized particles, and applications where high flow rates are required.
Medium: 10–80 mesh – provides balanced filtration and separation, commonly used for sieving powders, filtering liquids, and general industrial or food processing needs.
Fine: 80–500 mesh – designed for precision filtration, capable of capturing small particles in chemical processing, pharmaceutical production, and laboratory applications.
Ultra-fine: above 500 mesh – offers micron-level filtration, ideal for critical processes such as gas purification, ultra-clean liquid filtration, and high-precision scientific or electronic manufacturing.
Wire Diameter
0.001–0.010 Inches (0.025–0.254 mm): Ultra-Fine Wire
Ideal for precision filtration in electronics, pharmaceuticals, and research, enabling accurate particle separation with minimal flow resistance.
0.011–0.030 Inches (0.279–0.762 mm): Fine Wire
Balances precision and strength for use in food processing, air filtration, and automotive fluids, ensuring consistent performance.
0.031–0.080 Inches (0.787–2.032 mm): Medium Wire
Offers a balance of strength and filtration for industrial screening, architectural features, and construction reinforcement.
0.081–0.250 Inches (2.057–6.35 mm): Heavy-Duty Wire
Built for demanding applications like safety barriers, heavy-load filtration, and structural frameworks, providing high strength and durability.
Surface Finish
Mill finish, bright annealed, electro-polished, passivated, or coated.
Standards & Tolerances
Manufactured according to ISO 9044, ASTM E2016, or equivalent.
Dimensional accuracy and flatness controlled to industry standards.

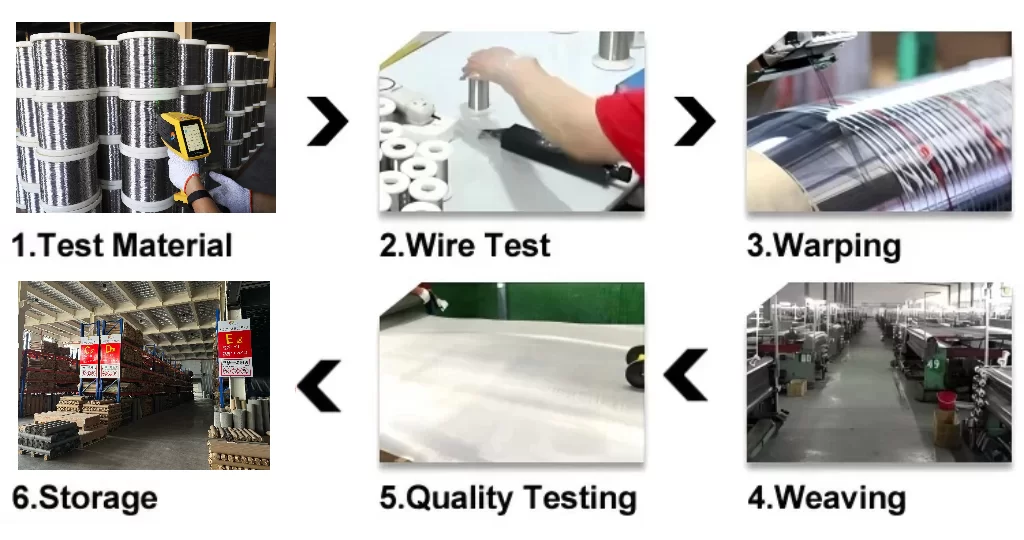

Production Process Of Stainless Steel Woven Wire Mesh
Test Material – First, the raw stainless steel is inspected using advanced testing instruments to verify its chemical composition and confirm it meets the required grade and performance standards.
Wire Test – The stainless steel wire is then tested for diameter accuracy, tensile strength, and surface condition to ensure it meets weaving requirements.
Warping – Qualified wires are arranged in parallel and wound onto warp beams according to the required mesh specifications, ensuring uniform tension for precise weaving.
Weaving – The warping beams are mounted on CNC weaving machines, where the wires are interlaced using the selected weave type (such as plain or twill weave) to form the mesh.
Quality Testing – The finished woven mesh undergoes strict inspection, including mesh count measurement, flatness check, and visual inspection, to eliminate defects and ensure accuracy.

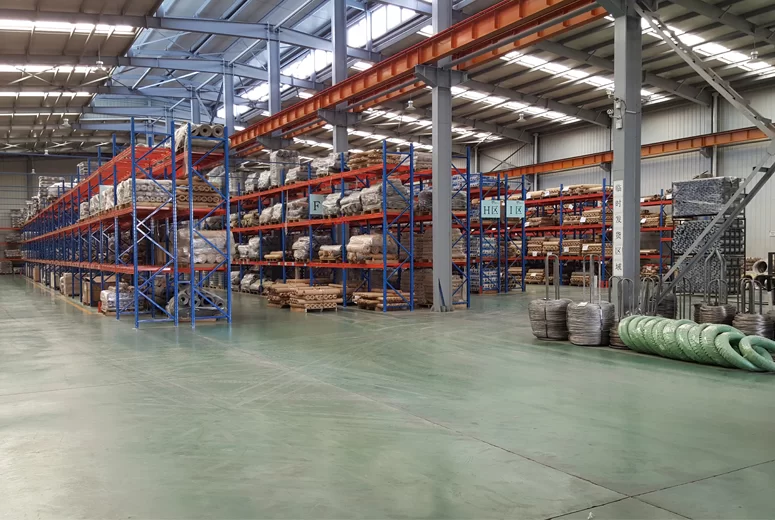

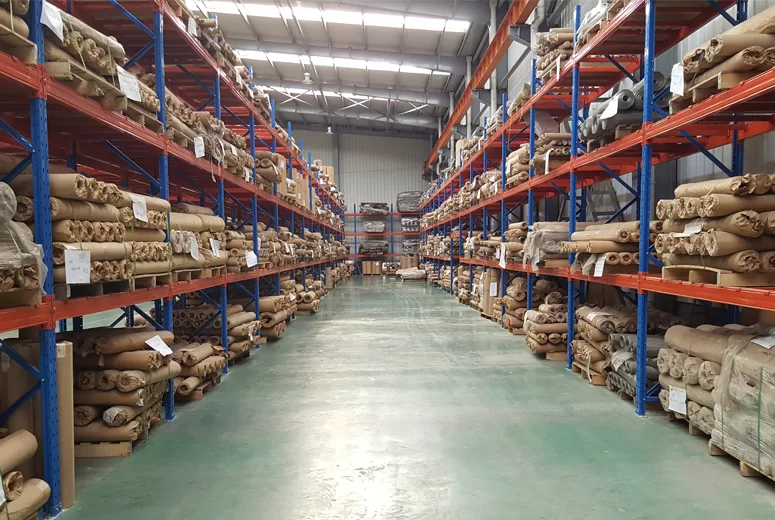

Storage – After passing all quality checks, the stainless steel woven mesh is carefully rolled, packaged, and stored in clean, dry warehouses, ready for prompt delivery to customers.
Features Of Stainless Steel Woven Wire Mesh
Smooth and Uniform Surface: Designed with a consistent, polished finish.
Excellent Mechanical Strength: Offers impressive structural strength and stability.
Superior Corrosion Resistance: Provides outstanding protection against corrosion for extended service life.
Long-Lasting and Wear-Resistant: Built for durability with high resistance to abrasion.
Resistant to Chemicals: Capable of enduring exposure to a variety of chemicals.
Easy to Work With: Can be cut and shaped effortlessly using common tools.
Highly Versatile: Adaptable for a wide array of applications.
Extensive Specification Options: Offered in multiple sizes and configurations to meet varying requirements.

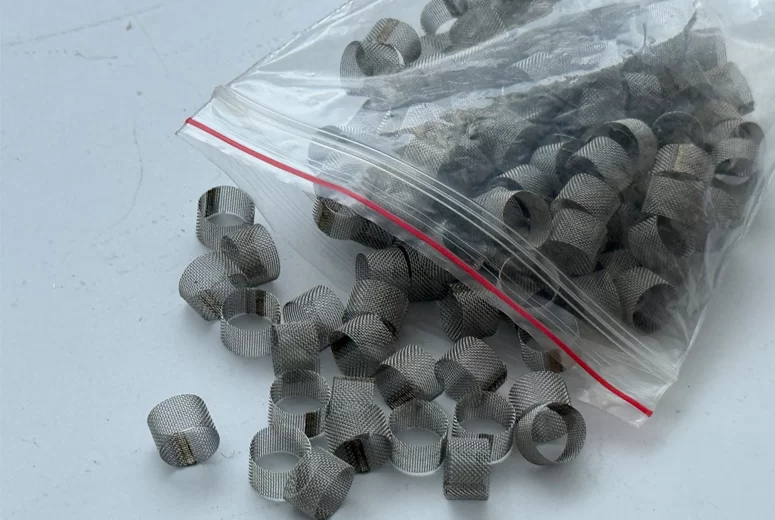

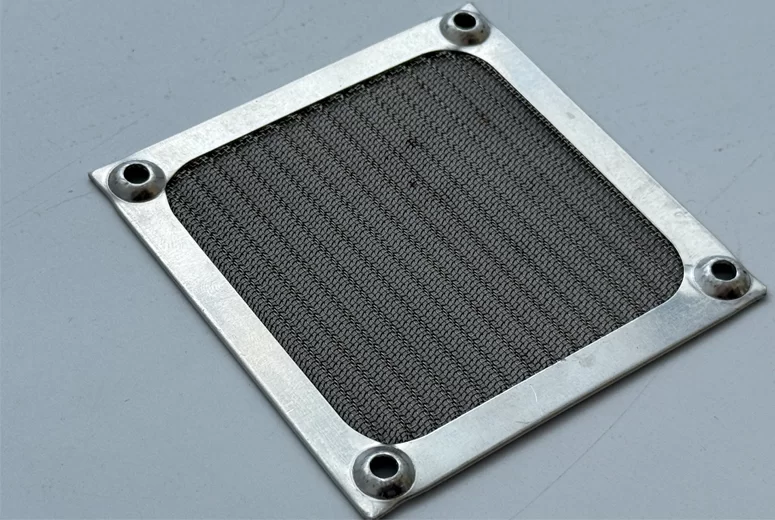

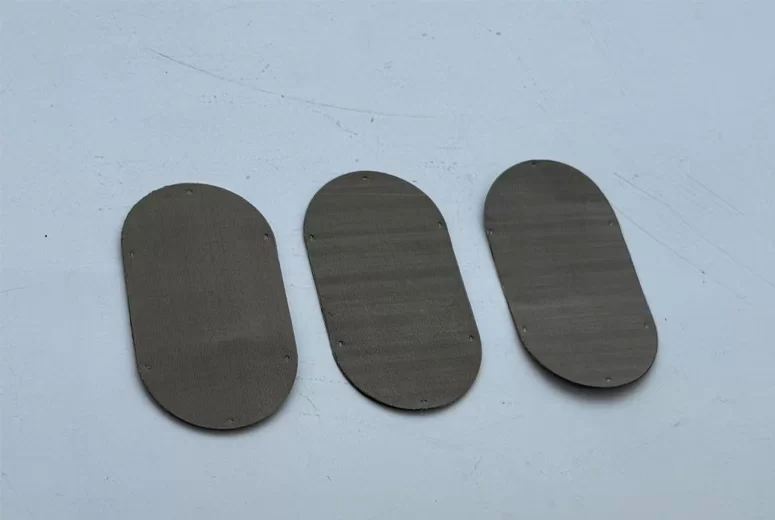

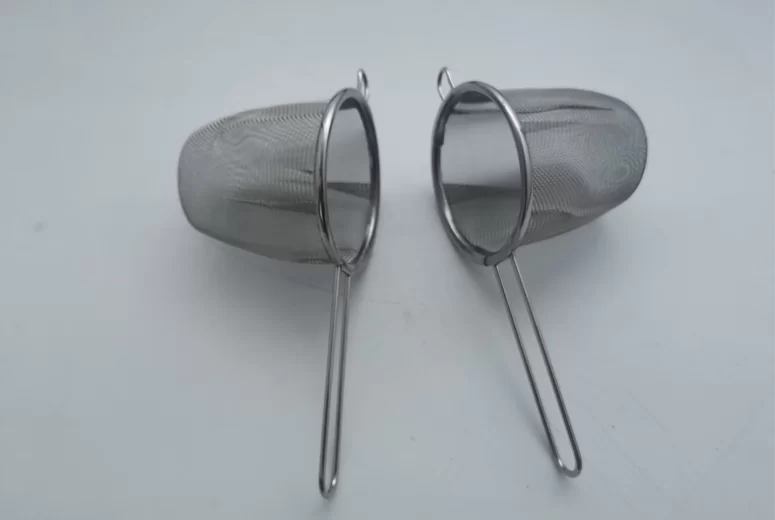

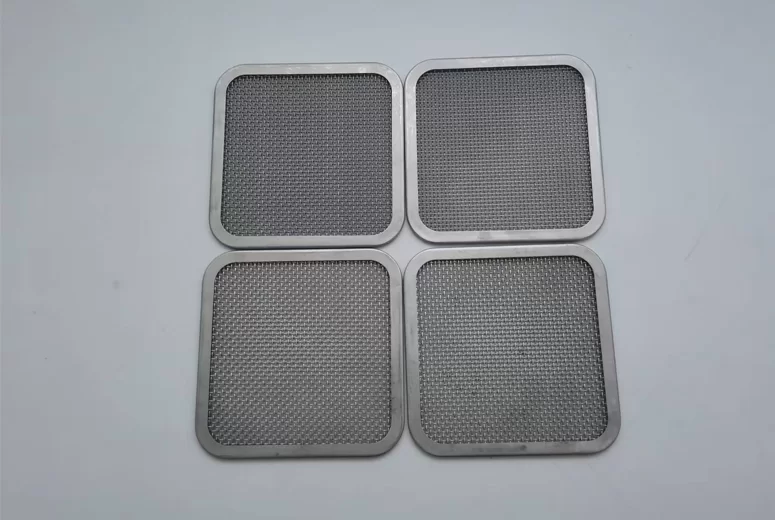

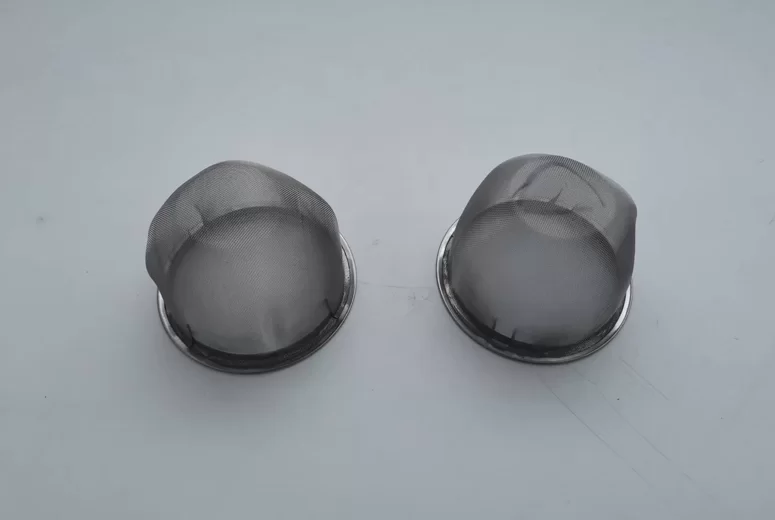

Applications Of Stainless Steel Woven Wire Mesh
Industrial Filtration: Oil & gas, chemicals, water treatment, pharmaceuticals.
Mining & Quarrying: Screening ores, aggregates, and coal.
Food & Beverage: Sieving, drying racks, brewing, and dairy filtration.
Architecture: Facades, partitions, decorative panels, sunshades.
Agriculture: Grain sieves, pest-proof barriers, greenhouse screening.
Automotive & Aerospace: Fuel and lubricant filters, heat-resistant components.
Environmental Protection: Wastewater screening, oil–water separation.
Electronics: EMI/RFI shielding, battery supports.
Safety & Security: Machine guards, protective fences, anti-vandal screens.
Laboratories: Particle analysis sieves, catalyst supports.
图片文字描述1
图片文字描述1
Why Choose Different Weaving Styles?
Customization for Application Needs:
Each weaving style is tailored to specific demands, such as strength, flexibility, or filtration efficiency.
Adaptability:
Whether it's for fine filtration, heavy-duty industrial use, or stress-resistant applications, there’s a twill weave style to match the requirement.
Enhanced Durability:
Depending on the weaving method, the mesh can be designed to withstand abrasive or corrosive environments.

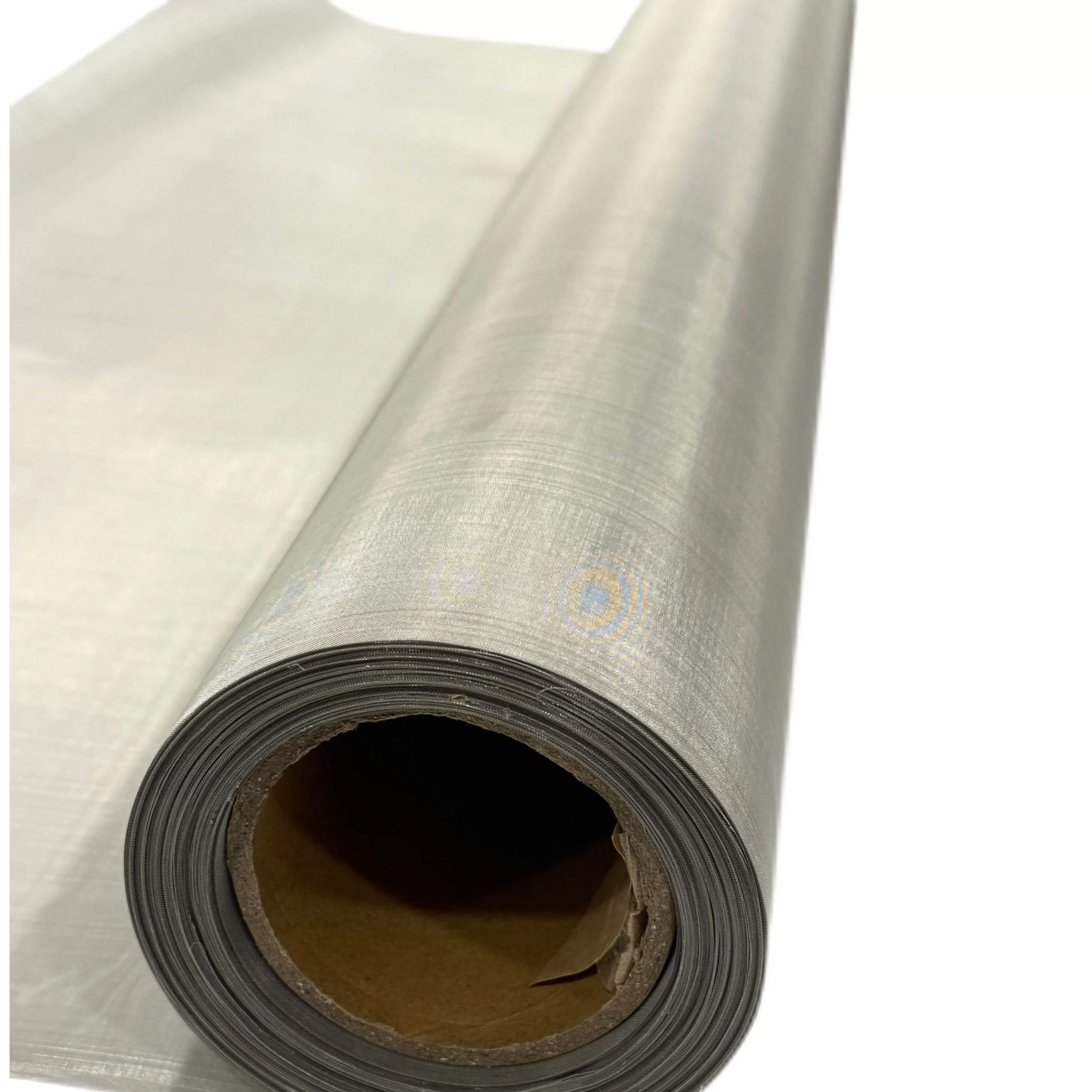

Stainless Steel Plain Weave Wire Mesh & Twill Weave Mesh Specification
Stainless steel plain weave wire mesh and twill weave mesh are two of the most common and widely used woven wire mesh types, both made from high-quality stainless steel wires. They are valued for their strength, precision, and excellent resistance to corrosion, making them suitable for a wide range of industrial and commercial applications.
Mesh Range | Wire Diameter(mm) | Hole Opening(mm) | Materials |
1 x 1 | 2.000 | 23.370 | SS 304 or 316 etc |
2 x 2 | 1.600 | 11.100 | SS 304 or 316 etc |
3 x 3 | 1.370 | 7.090 | SS 304 or 316 etc |
4 x 4 | 1.600 | 4.750 | SS 304 or 316 etc |
4 x 4 | 1.190. | 5.160 | SS 304 or 316 etc |
5 x 5 | 1.000 | 4.040 | SS 304 or 316 etc |
6 x 6 | 0.890 | 3.350 | SS 304 or 316 etc |
8 x 8 | 0.710 | 2.460 | SS 304 or 316 etc |
10 x 10 | 0.640 | 1.910 | SS 304 or 316 etc |
12 x 12 | 0.580 | 1.520 | SS 304 or 316 etc |
12 x 12 | 0.500 | 1.60 | SS 304 or 316 etc |
14 x 14 | 0.230 | 1.220 | SS 304 or 316 etc |
14 x 14 | 0.500 | 1.300 | SS 304 or 316 etc |
16 x 16 | 0.450 | 1.130 | SS 304 or 316 etc |
18 x 18 | 0.430 | 0.980 | SS 304 or 316 etc |
20 x 20 | 0.400 | 0.870 | SS 304 or 316 etc |
24 x 24 | 0.350 | 0.700 | SS 304 or 316 etc |
30 x 30 | 0.330 | 0.520 | SS 304 or 316 etc |
30 x 30 | 0.300 | 0.540 | SS 304 or 316 etc |
30 x 30 | 0.230 | 0.620 | SS 304 or 316 etc |
35 x 35 | 0.280 | 0.450 | SS 304 or 316 etc |
40 x 40 | 0.250 | 0.380 | SS 304 or 316 etc |
40 x 40 | 0.230 | 0.400 | SS 304 or 316 etc |
50 x 50 | 0.230 | 0.280 | SS 304 or 316 etc |
60 x 60 | 0.180 | 0.230 | SS 304 or 316 etc |
70 x 70 | 0.165 | 0.200 | SS 304 or 316 etc |
70 x 70 | 0.120 | 0.240 | SS 304 or 316 etc |
80 x 80 | 0.165 | 0.200 | SS 304 or 316 etc |
80 x 80 | 0.140 | 0.150 | SS 304 or 316 etc |
90 x 90 | 0.120 | 0.160 | SS 304 or 316 etc |
100 x 100 | 0.110 | 0.140 | SS 304 or 316 etc |
100 x 100 | 0.100 | 0.150 | SS 304 or 316 etc |
100 x 100 | 0.090 | 0.170 | SS 304 or 316 etc |
120 x 120 | 0.090 | 0.120 | SS 304 or 316 etc |
150 x 150 | 0.063 | 0.110 | SS 304 or 316 etc |
180 x 180 | 0.053 | 0.090 | SS 304 or 316 etc |
200 x 200 | 0.053 | 0.070 | SS 304 or 316 etc |
250 x 250 | 0.040 | 0.063 | SS 304 or 316 etc |
300 x 300 | 0.040 | 0.044 | SS 304 or 316 etc |
325 x 325 | 0.035 | 0.043 | SS 304 or 316 etc |
350 x 350 | 0.030 | 0.042 | SS 304 or 316 etc |
400 x 400 | 0.030 | 0.033 | SS 304 or 316 etc |
450 x 450 | 0.028 | 0.028 | SS 304 or 316 etc |
500 x 500 | 0.025 | 0.026 | SS 304 or 316 etc |
635 x 635 | 0.020 | 0.020 | SS 304 or 316 etc |
Plain Dutch Weave Wire Mesh Specification
Plain Dutch weave wire mesh is a specialized woven mesh type made from high-quality stainless steel wires. It combines the simple over-under weaving pattern of plain weave with a unique warp-to-weft ratio design, resulting in a tightly woven structure with superior filtration capability.
Mesh Range | Wire Diameter(mm) | Hole Opening(μm) | Materials |
7 x 44 | 0.71 x 0.63 | 315 | SS 304 or 316 etc |
8 x 60 | 0.63 x 0.45 | 300 | SS 304 or 316 etc |
14 x 88 | 0.50 x 0.40 | 200 | SS 304 or 316 etc |
22 x 64 | 0.58 x 0.40 | 280 | SS 304 or 316 etc |
24 x 110 | 0.36 x 0.25 | 150 | SS 304 or 316 etc |
30 x 150 | 0.23 x 0.18 | 100 | SS 304 or 316 etc |
40 x 200 | 0.18 x 0.13 | 80 | SS 304 or 316 etc |
50 x 250 | 0.14 x 0.11 | 60 | SS 304 or 316 etc |
80 x 400 | 0.10 x 0.065 | 40 | SS 304 or 316 etc |
78 x 700 | 0.11 x 0.08 | 30 | SS 304 or 316 etc |
Twill Dutch Weave Wire Mesh Specification
Twill Dutch weave wire mesh is a precision-woven stainless steel mesh that combines the diagonal weaving method of twill weave with the dense warp-to-weft ratio of Dutch weave. This unique structure allows for extremely fine filtration, high strength, and excellent durability, making it ideal for demanding industrial applications.
Mesh Range | Wire Diameter(mm) | Hole Opening(μm) | Materials |
80 × 700 | 0.110 × 0.080 | 30 | SS 304, 316 etc |
165 × 800 | 0.070 × 0.050 | 20 | SS 304, 316 etc |
165 × 1400 | 0.063 × 0.040 | 15 | SS 304, 316 etc |
200 × 600 | 0.050 × 0.032 | 10 | SS 304, 316 etc |
200 × 1400 | 0.050 × 0.032 | 10 | SS 304, 316 etc |
250 × 1600 | 0.050 × 0.032 | 8 | SS 304, 316 etc |
280 × 2200 | 0.050 × 0.032 | 7 | SS 304, 316 etc |
300 × 2100 | 0.036 × 0.025 | 6 | SS 304, 316 etc |
325 × 2300 | 0.035 × 0.025 | 4 | SS 304, 316 etc |
400 × 2800 | 0.030 × 0.018 | 3 | SS 304, 316 etc |
Reverse Dutch Weave Wire Mesh Specification
Reverse Dutch weave wire mesh is a specialized stainless steel woven mesh featuring a unique warp and weft wire arrangement opposite to standard Dutch weave. Unlike the traditional version, it uses thicker weft wires and finer warp wires, creating a strong, dense mesh with excellent mechanical strength and flow capacity.
Mesh Range | Wire Diameter(mm) | Materials |
75 × 15 | 0.45 × 0.50 | SS 304, 316 etc |
120 × 15 | 0.35 × 0.50 | SS 304, 316 etc |
132 × 17 | 0.32 × 0.45 | SS 304, 316 etc |
150 × 18 | 0.30 × 0.45 | SS 304, 316 etc |
152 × 24 | 0.28 × 0.40 | SS 304, 316 etc |
160 × 18 | 0.27 × 0.45 | SS 304, 316 etc |
180 × 18 | 0.26 × 0.45 | SS 304, 316 etc |
200 × 40 | 0.17 × 0.27 | SS 304, 316 etc |
260 × 40 | 0.15 × 0.27 | SS 304, 316 etc |
300 × 40 | 0.14 × 0.25 | SS 304, 316 etc |

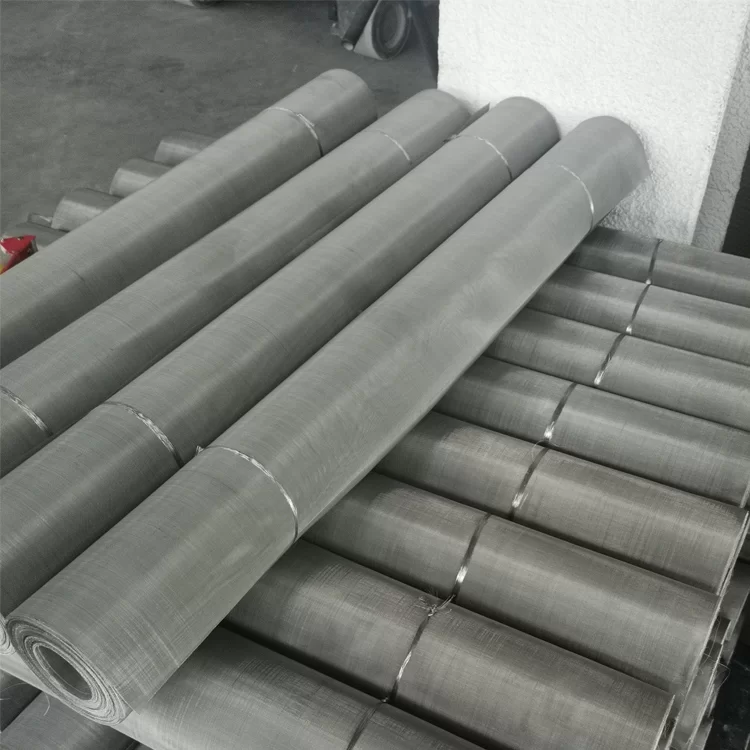

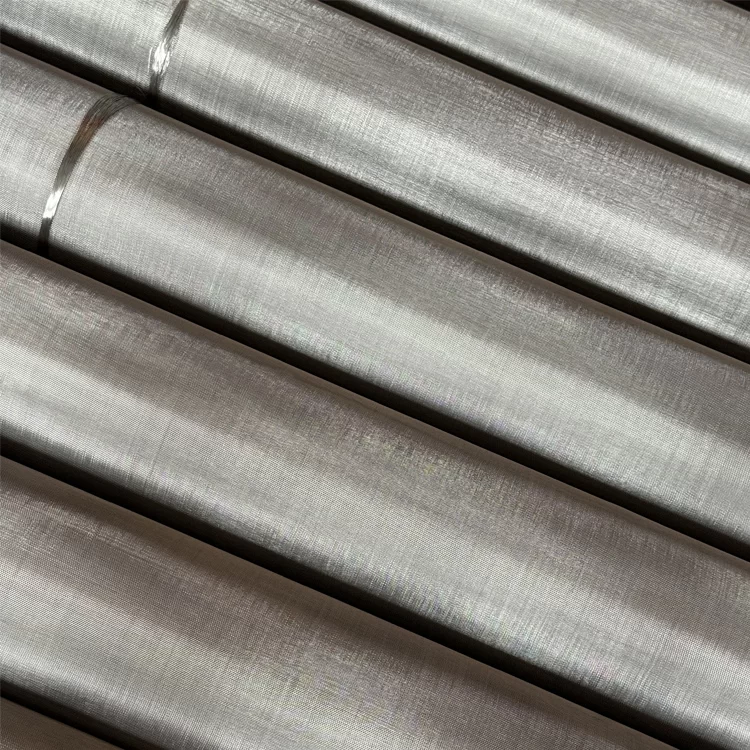

Packaging Of Stainless Steel Woven Wire Mesh
Stainless steel woven wire mesh undergoes rigorous inspection and roll handling before shipment. Depending on customer needs and mesh specifications, we typically use moisture- and dust-proof multi-layer packaging:
Inner layer: Wrapped in moisture-proof kraft paper, plastic film, or bubble wrap to prevent moisture, rust, and abrasion;
Outer layer: Reinforced with woven bags, wooden boxes, or cardboard boxes to protect against impact and pressure during transportation;
Roll/Flatpack: Roll packaging is common for easy handling and unrolling; flatpacking is available for some custom sizes;
Labeling and Marking: A label indicating the material, specifications, quantity, and production batch number is affixed to the outside of the package for easy verification and warehouse management.
Transportations Of Stainless Steel Woven Wire Mesh
Transportation Methods: We offer shipping by sea, land, and air, with the optimal option selected based on the urgency of the order.
Protective Measures: During long-distance and international transport, we use pallets or wooden frames to prevent deformation of the mesh due to bumps.
Loading Requirements: Ensure the mesh is stored vertically or flat to prevent heavy loads. Avoid mixing with strong acids, bases, or corrosive materials.
Logistics Tracking: We provide full-process tracking information, allowing customers to monitor the status of their shipment at all times.
Your Ideal Stainless Steel Woven Wire Mesh Supplier
Choosing our stainless steel wire mesh means securing a comprehensive guarantee of high quality, full specifications, and high efficiency. We are equipped with over 100 sets of advanced machinery, including CNC stainless steel wire mesh weaving machines, high-end punching and stretching machines, as well as precision cutting and flattening equipment, ensuring every piece of mesh meets international standards in dimensional accuracy, weave tightness, and surface flatness. Our product range covers a wide variety of wire diameters, mesh openings, and weaving styles, with a large inventory in stock year-round to quickly fulfill bulk orders and urgent demands. We strictly implement the ISO 9001 quality management system, monitoring every step from the selection of premium stainless steel raw materials to final product delivery, ensuring consistent corrosion resistance, strength, and service life. With 36 years of industry experience, we not only provide standardized products but also offer precise customization to meet specific requirements in filtration, protection, decoration, and other applications. Understanding the diverse needs of the market, we deliver stable quality, fast lead times, and competitive prices—helping you save time and costs while ensuring your projects run smoothly and achieve long-term success.
