Stainless Steel Welded Wire Mesh

Descriptions Of Stainless Steel Weled Wire Mesh

Processing Process:

From the initial selection of materials to the final delivery, every step is carefully managed to produce stainless steel welded wire mesh that is high-quality, long-lasting, and adaptable for numerous applications.

Material Selection:

Production starts with premium stainless steel wire, usually in grades such as 304 or 316, prized for their strength and resistance to corrosion.

Wire Drawing:

The chosen wire is drawn to the required diameter by passing it through a sequence of dies, reducing its cross-sectional area for precision sizing.

Wire Straightening and Cutting:

The drawn wire is straightened and cut to exact lengths, ensuring consistent dimensions and uniform mesh construction.

Crimping (if needed):

For certain mesh types, wires may be pre-crimped into a zigzag pattern before welding, helping secure the intersections firmly during the welding process.

Welding:

Using advanced automated welding technology, the wires are welded at every intersection to create a strong, stable, and structurally sound mesh.

Inspection and Quality Control:

Post-welding, the mesh is thoroughly inspected for defects. Quality checks verify weld strength, dimensional accuracy, and adherence to standards.

Finishing:

The mesh may be cleaned, polished, or coated to boost corrosion resistance and improve its appearance.

Cutting and Shaping:

It is then cut into the required sheets, rolls, or custom shapes—such as rectangles, squares, or discs—according to customer specifications.

Packaging and Shipping:

Finally, the completed mesh is securely packed to prevent damage during transport, ensuring it arrives in perfect condition, ready for its intended use.

Welding Process:

This accurate and controlled welding procedure is essential for producing stainless steel welded wire mesh that is strong, reliable, and suitable for a variety of industrial, architectural, and security purposes.

Setup and Calibration:

Prior to starting, welding equipment is precisely adjusted to match the mesh specifications. Parameters such as voltage, amperage, and wire feed speed are set according to the thickness and grade of stainless steel in use.

Wire Arrangement:

Stainless steel wires are laid out in a grid pattern, with both longitudinal and transverse wires spaced to the required measurements. This is usually done on a dedicated jig or table to guarantee accuracy and uniform spacing.

Spot Welding:

At each intersection, spot welding is performed by applying concentrated heat and pressure, fusing the wires securely. Automated machinery is often used to ensure uniform weld quality across the mesh.

Continuous Welding:

For heavier wires or when extra strength is needed, continuous welding along the length of the wires may be employed instead of spot welding. This method creates a stronger joint but takes more time to complete.

Weld Quality Check:

After welding, intersections are inspected to verify quality. This includes visual assessments and, if necessary, non-destructive testing to confirm weld integrity.

Cooling and Cleaning:

Once welding is completed, the mesh is allowed to cool, and any welding residue or slag is removed, leaving a smooth, clean surface.

Heat Treatment:

Depending on the stainless steel grade and application, post-weld heat treatment may be carried out to relieve internal stresses and restore any corrosion resistance affected during welding.

Final Finishing:

The process concludes with any necessary finishing work, such as grinding sharp edges or applying protective or decorative surface treatments to enhance both durability and appearance.

Welded Mesh Varieties:

Welded Mesh Panels: Highly valued for their exceptional structural stability, making them ideal for heavy-duty and long-term applications.

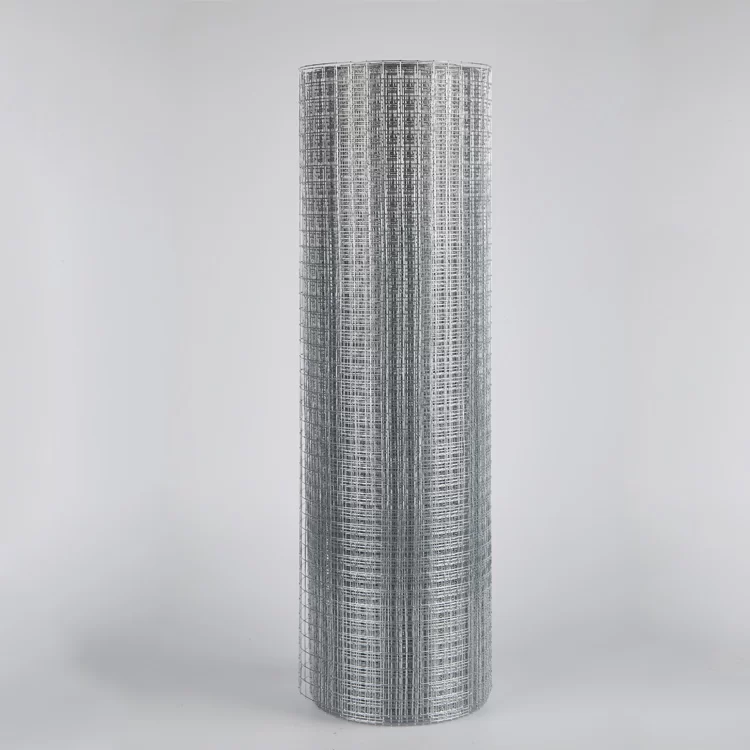

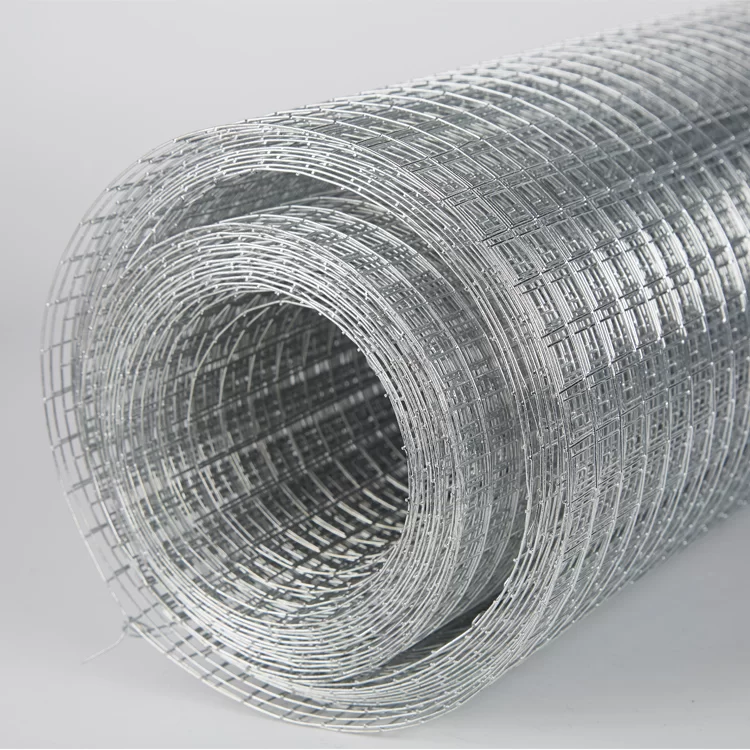

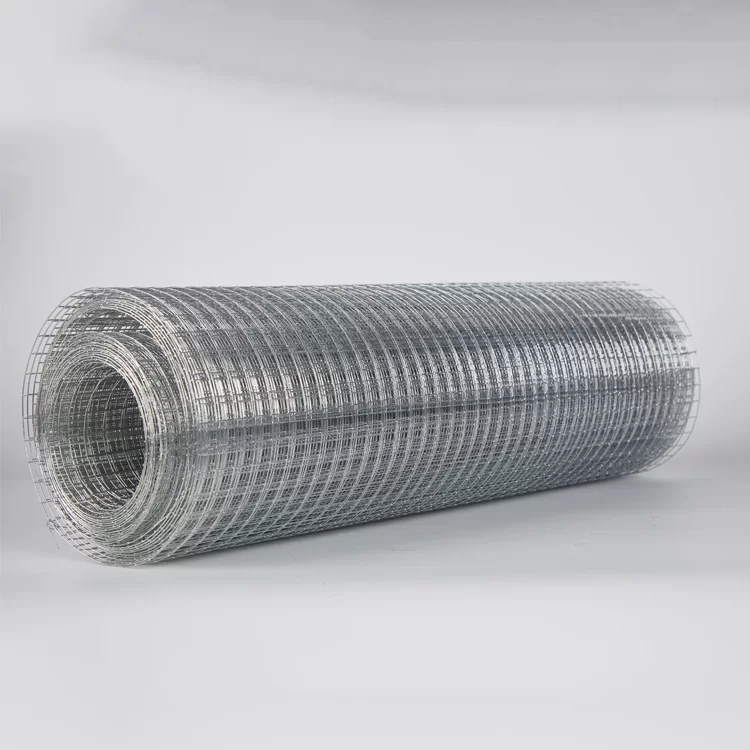

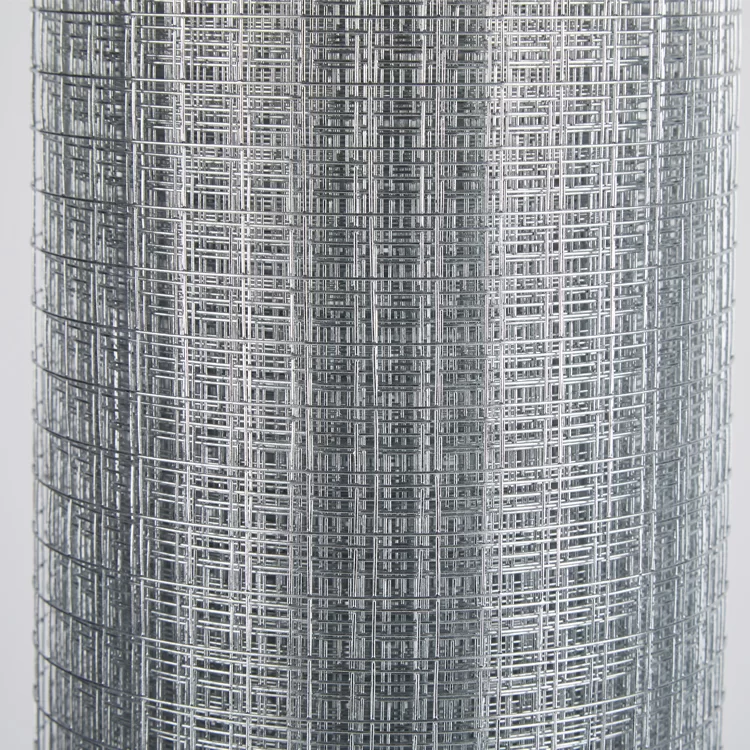

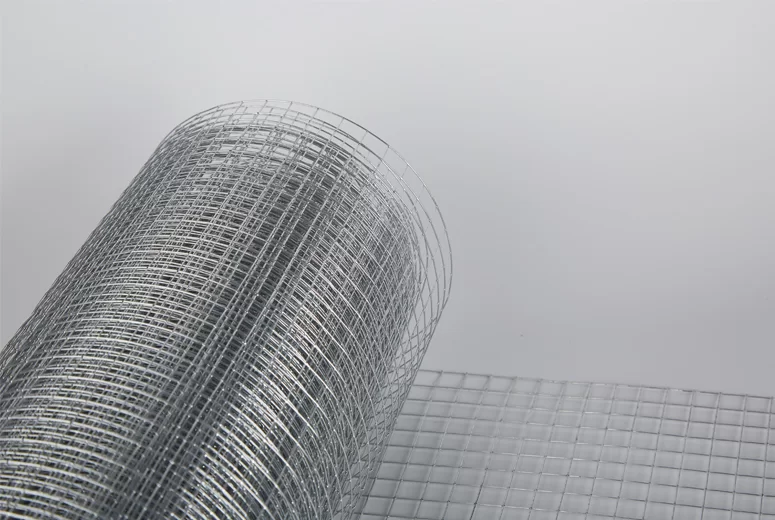

Welded Mesh Rolls: Offering notable flexibility, these rolls can easily conform to curved or uneven surfaces, providing versatile installation options.

Specifications for Welded Wire Mesh Roll

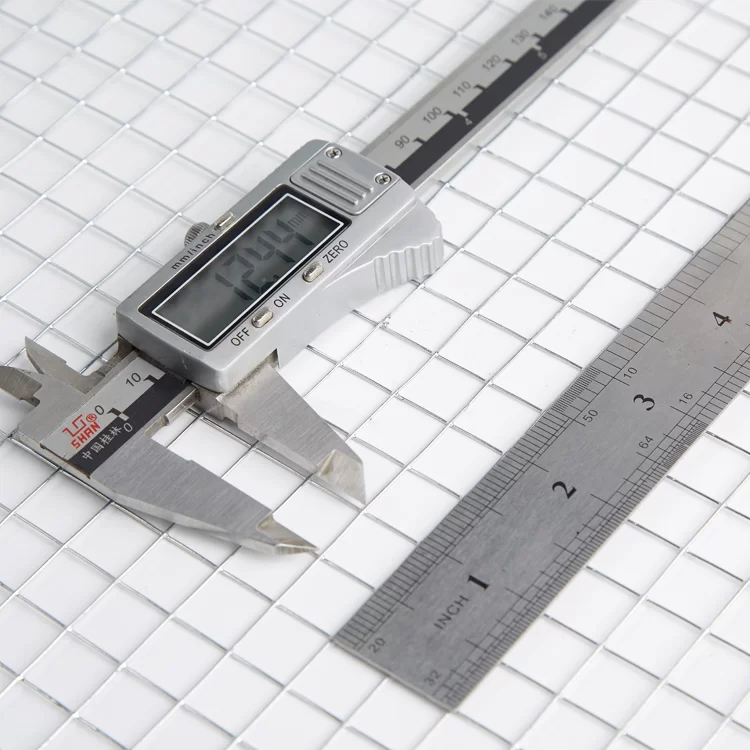

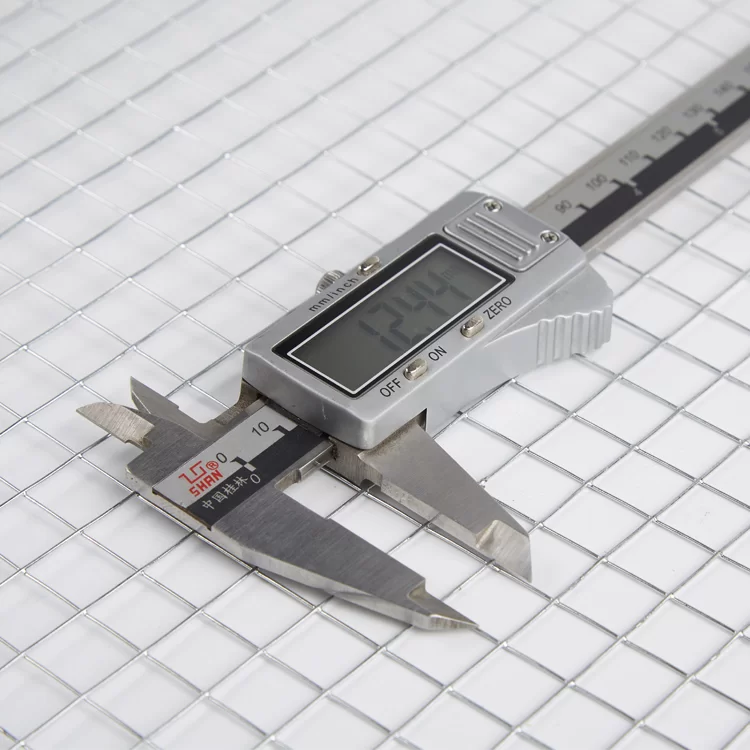

Mesh Hole Sizes: Available in sizes ranging from 1/4″ to 4″, with full customization possible to meet specific project needs.
Wire Gauge: Thickness options span from 0.5mm to 5mm, allowing selection based on required strength and rigidity.
Roll Width: Ranges from 0.5m to 2.5m, offering flexibility for both compact and large-scale installations.
Roll Length: Standard lengths include 15m, 30m, and 60m, providing sufficient coverage for a variety of uses.

Specifications for Welded Wire Mesh Panel

Wire Diameter: Offered in sizes from 1.0mm to 8.0mm, suitable for applications demanding different strength levels.
Opening Size: Available with openings between 25mm and 100mm, meeting both fine and coarse mesh preferences.
Panel Width: Spanning from 0.5m to 2.5m, adaptable for small enclosures or extensive barrier applications.
Panel Length: Common lengths include 2m, 2.4m, 2.5m, 3m, and more, to suit precise spatial requirements.

Note: Special sizes and specification can be customized.

Corrosion Resistance: Offers outstanding protection against corrosion, ensuring reliable performance in diverse environment.

Oxidation Resistance: Effectively resists oxidation, contributing to a longer service life.

Acid and Alkali Resistance: Well-suited for settings where contact with acidic or alkaline substances is frequent.

Aging Resistance: Retains its structural integrity over time, resisting wear from age-related factors.

Weather and Sunlight Resistance: Performs well under exposure to sunlight and varying weather conditions.

Strong and Rigid Structure: Built with a solid framework, providing stability and security.

Extended Lifespan: Its durable nature ensures many years of dependable use.

Integrated Strength: Features a unified, robust build, making it resistant to physical force and cutting.

Industrial Use: Widely used in industrial sectors for its strength, reliability, and durability.

Agriculture: Applied in farming for fencing, pens, and enclosures.

Construction: Essential for reinforcing structures and providing structural stability.

Animal Husbandry:Used to build secure and long-lasting enclosures for livestock and breeding operations.

Mining and Transportation: Supports safety and partitioning in mining operations and transport infrastructure.

Public Facilities: Commonly installed as security fencing in parks, walkways, and transport hubs.

Entertainment Venues: Serves as crowd control and safety barriers in event spaces.

Isolation Fencing: Functions as an effective barrier for separation and protection in both public and private areas.
