We are a specialist manufacturer of ultra-fine stainless steel wire ranging from 0.025 mm to 0.08 mm, available in 304, 304L, 316, and 316L. Both soft annealed and medium cut are offered, with customizable spool types and weights. Our precision production ensures exceptional control, achieving diameters with tolerances as tight as ±0.001 mm.
At our Xiangguang Metal factory, 30 dedicated production lines operate daily to produce up to 1,200 kg of ultra-fine wire, running on a three-shift system to guarantee continuous operation and on-time delivery. Most of our team members have over ten years of hands-on experience, making them true experts who understand every detail of the production process and are committed to delivering consistent, high-quality products.
Xiangguang Metal is a professional manufacturer specializing in 0.05mm ultra-fine 316L stainless steel wire. Now get a Quote.

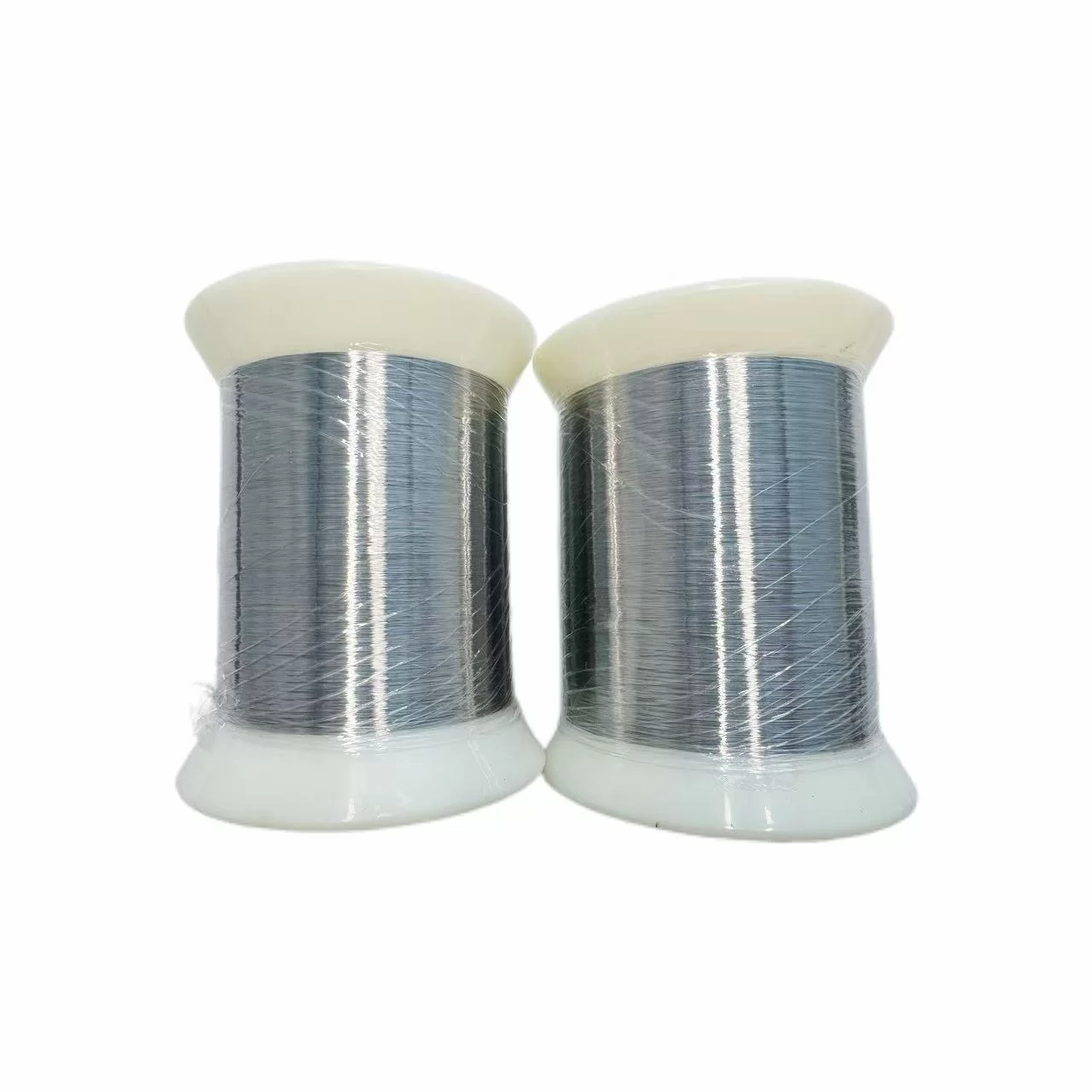

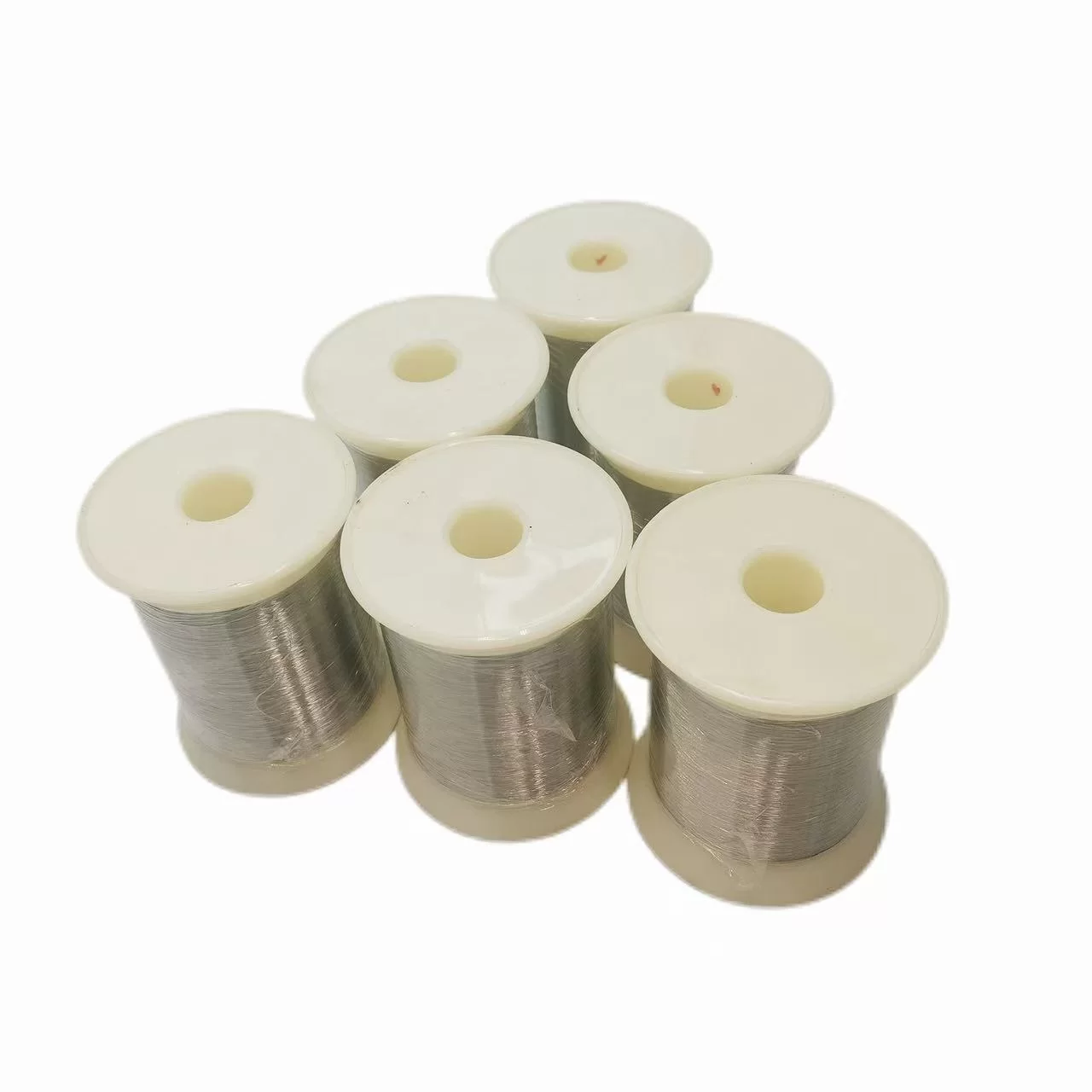

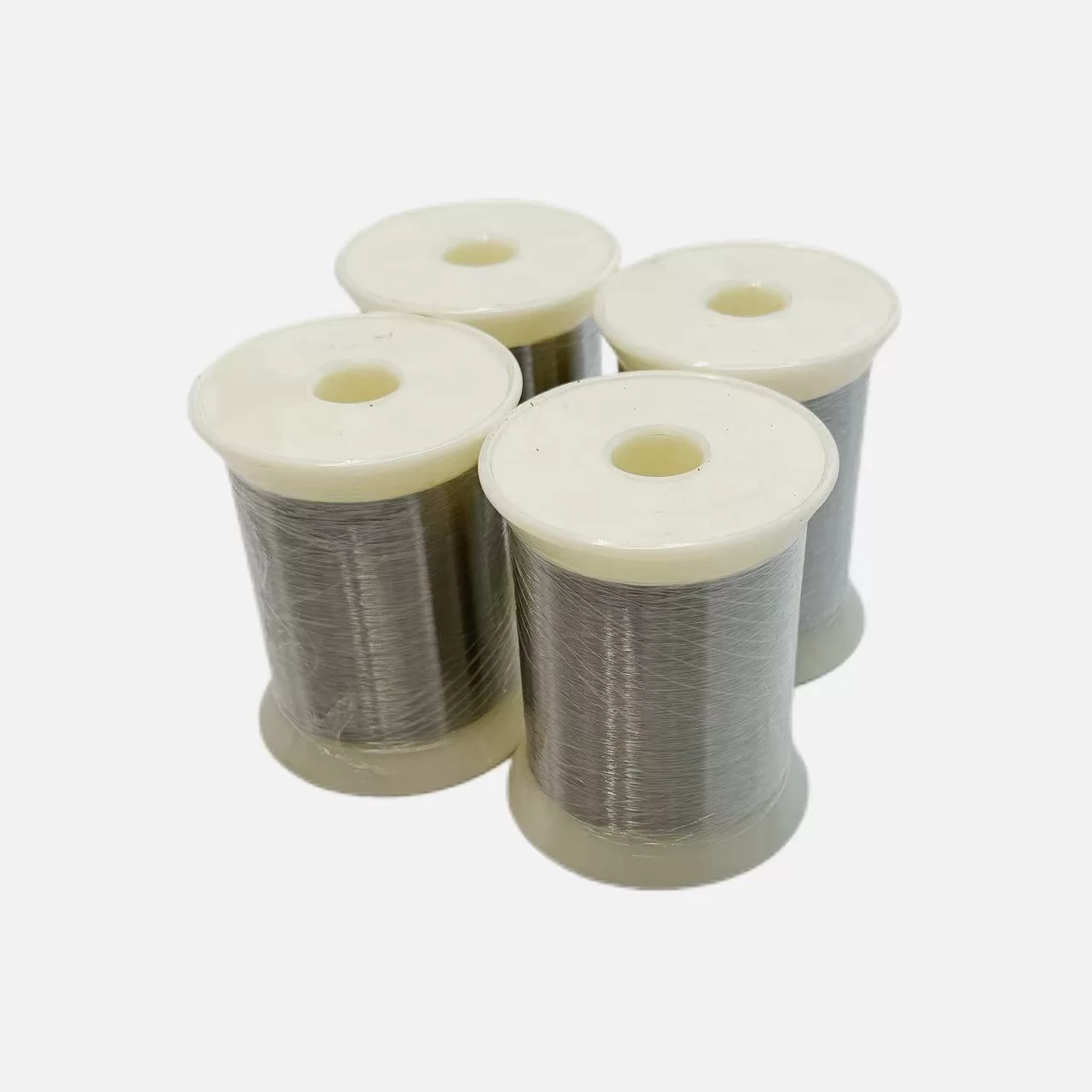

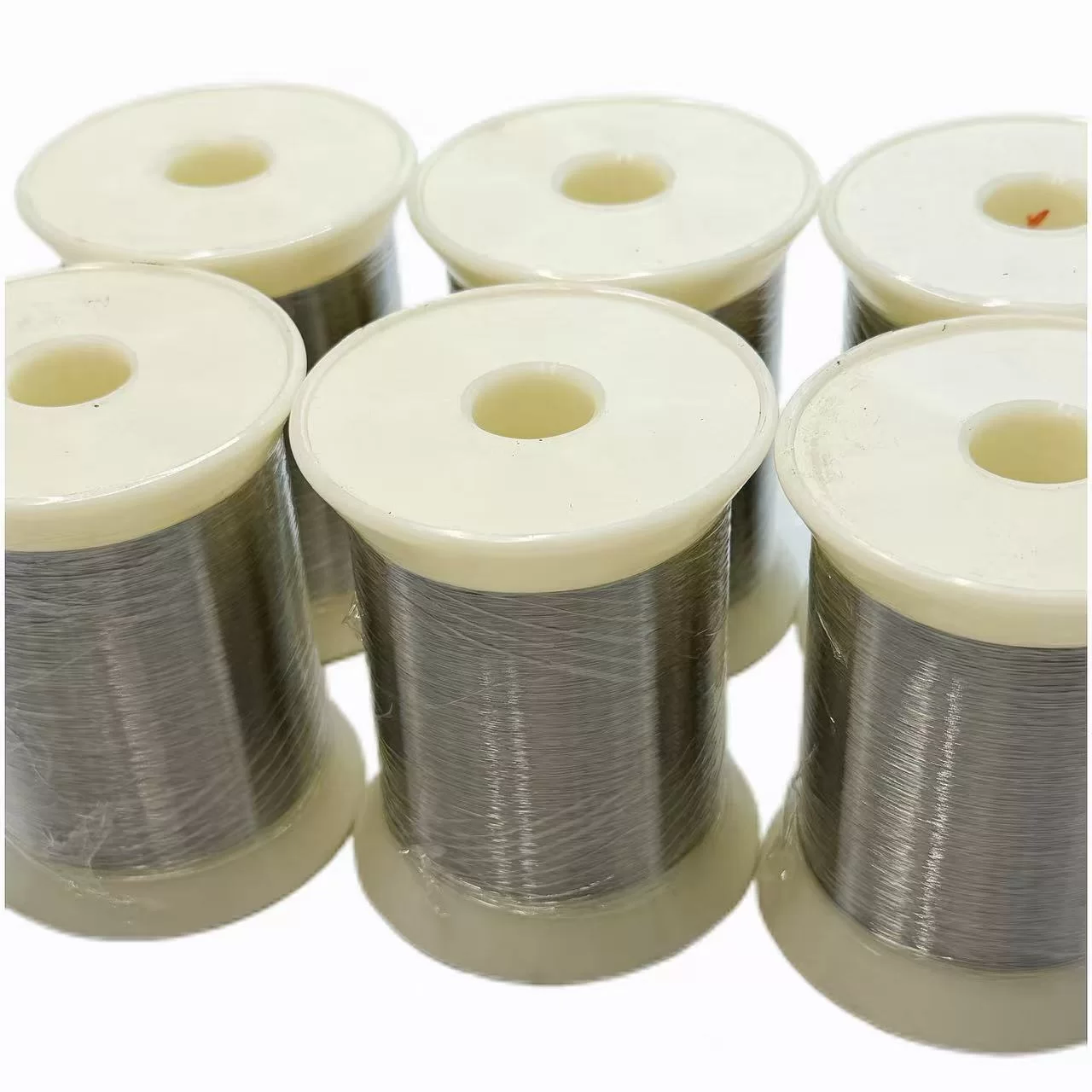

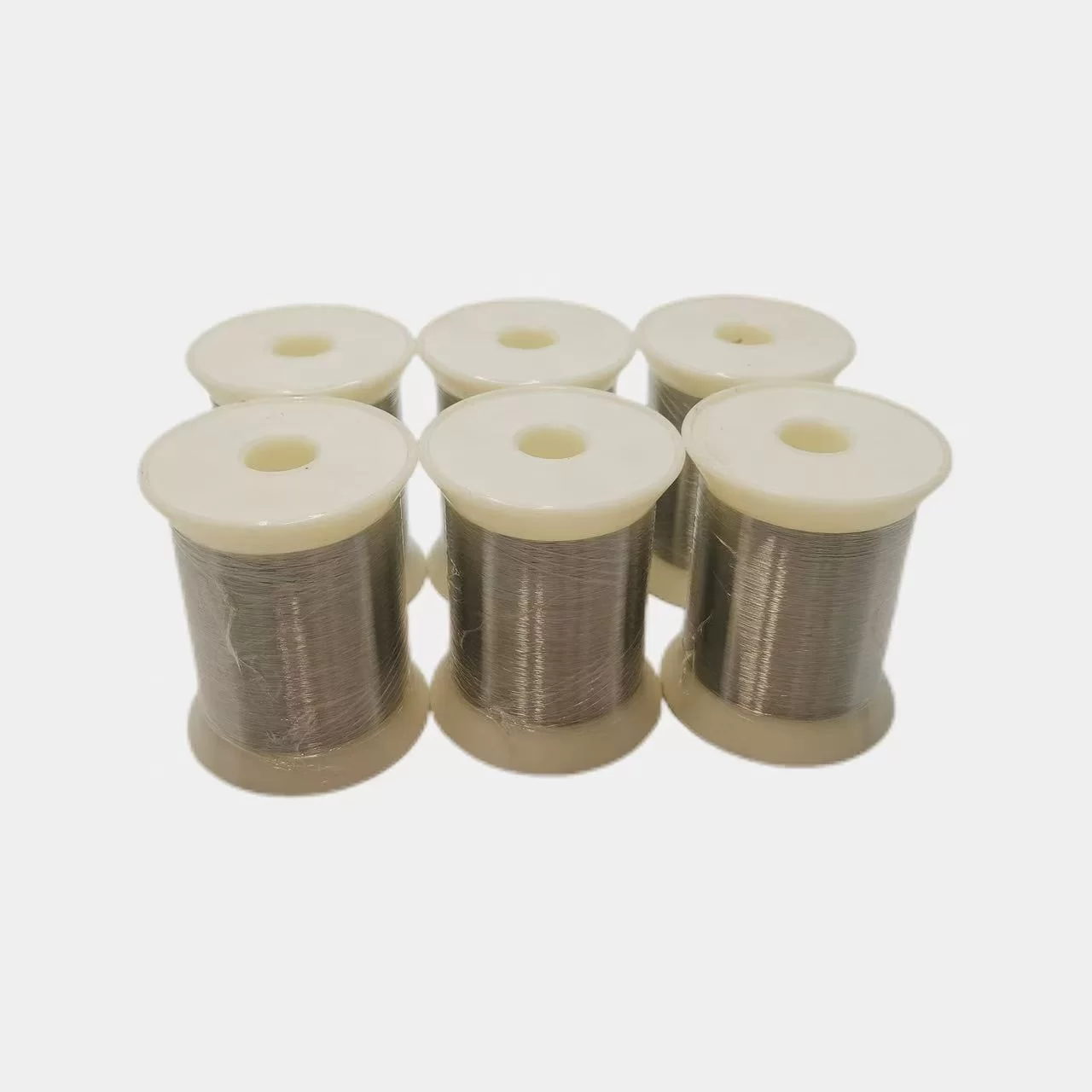

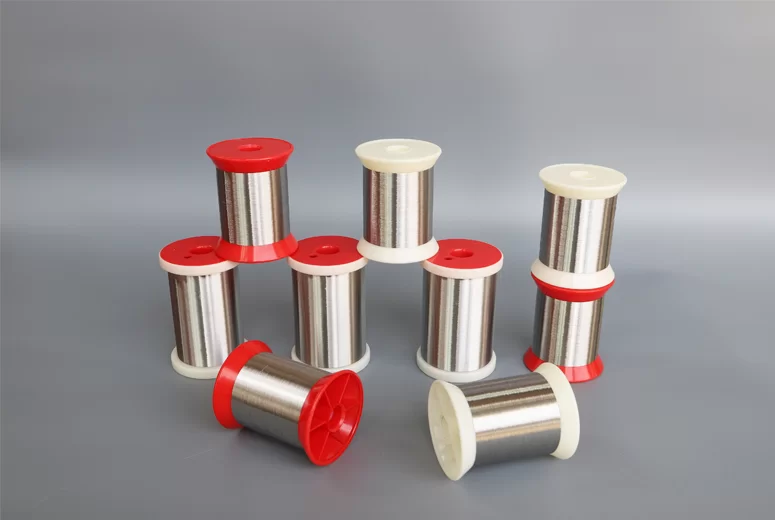

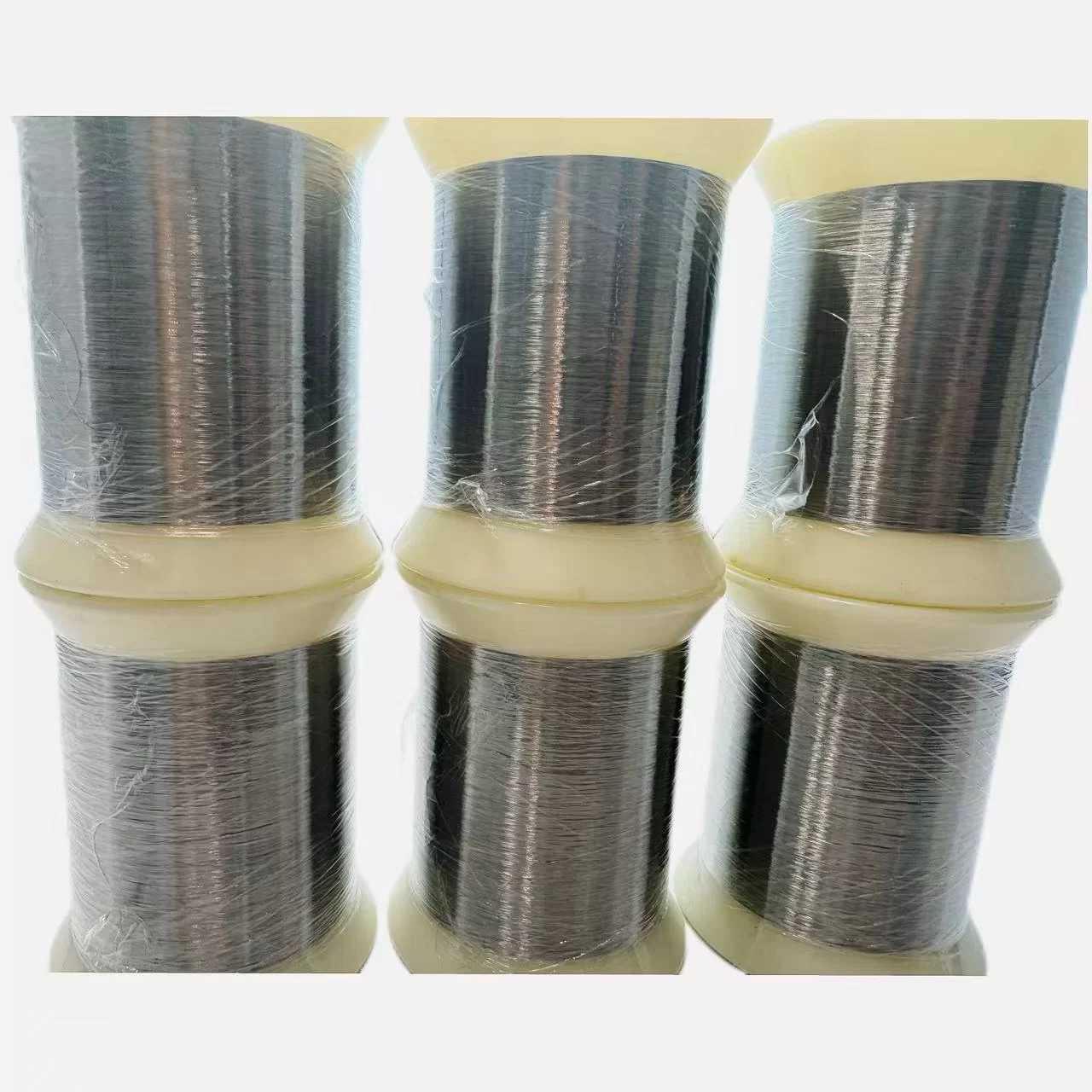

Name: | 316L stainless steel ultra-fine wire 0.05mm |
Grade: | AISI 316L |
Size(mm): | 0.05mm |
Size(micron): | 50 microns |
Diameter tolerance: | ±0.001mm |
Tensile Strength(N / mm2): | 680-980 |
Elongation(%): | 20-30% |
Weight(g): | 250-600g or customized |
Temper: | Soft and medium cut |

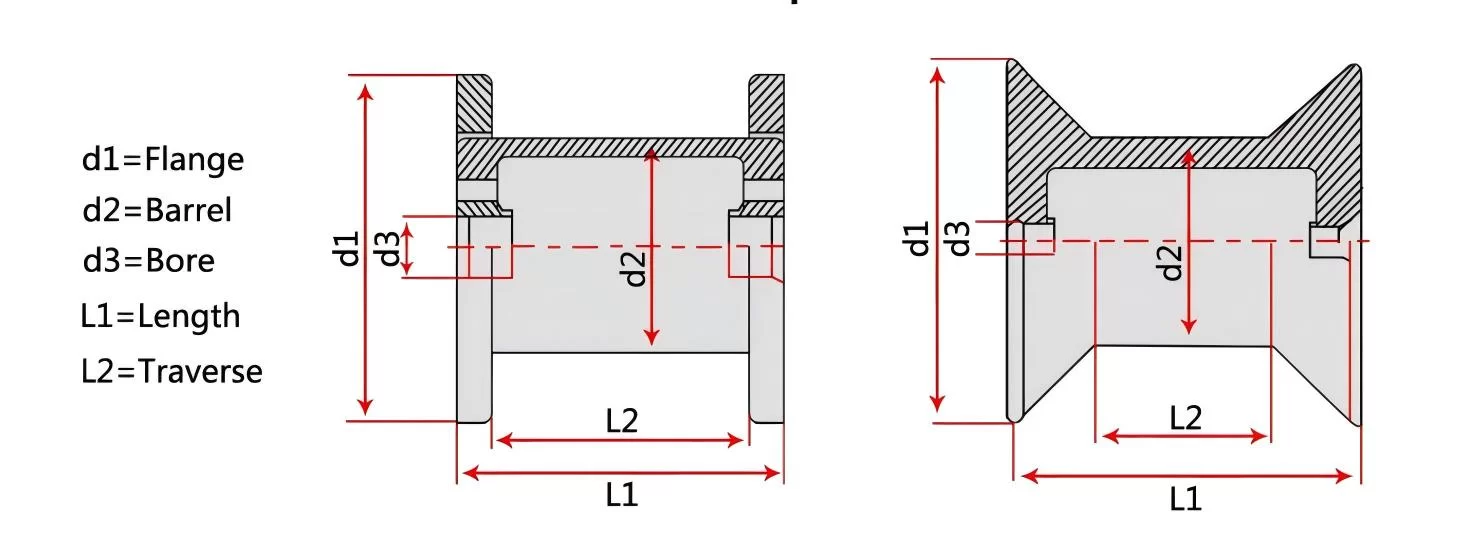

Spool type: | Customized |
Application: | Textile,Weaving,Knitting |
MOQ: | ≥100kg |
Package: | Spool+ stretch film+carton+plywood box |
Stainless Steel Fine Wire
Stainless Steel Fine Wire is characterized by its ultra-fine diameter and remarkable mechanical performance, combining high tensile strength with superior corrosion resistance. Manufactured with strict dimensional precision and an excellent surface finish, it can be supplied in both annealed and unannealed conditions to meet diverse technical requirements. Its unique balance of flexibility, durability, and stability allows it to be widely employed in advanced weaving structures, precision filtration systems, miniaturized electronic components, and high-standard medical devices. Furthermore, its inherent biocompatibility enhances its value in healthcare applications, where reliability and safety are paramount.
The production process of Stainless Steel Fine Wire essentially involves “multi-pass cold drawing + final annealing + spooling& inspection,” ensuring ultra-fine diameters while maintaining high strength, corrosion resistance, and excellent surface quality.
Raw Material Preparation: Choose high-end stainless steel rods or wires (such as 304, 304L, 316, 316L). The material undergoes surface cleaning, including acid washing and descaling, to ensure a perfect completion without oxidation or impurities.
Multi pass cold drawing: After dozens or even hundreds of wire drawing processes, the steel wire gradually shrinks to a micro diameter level (0.025mm-0.08mm). Intermediate annealing may be required between stages to alleviate work hardening.
Final annealing/heat treatment: Microfilaments can provide annealed (soft) or unannealed (hard) conditions according to specific applications, ensuring an ideal balance between flexibility and tensile strength.

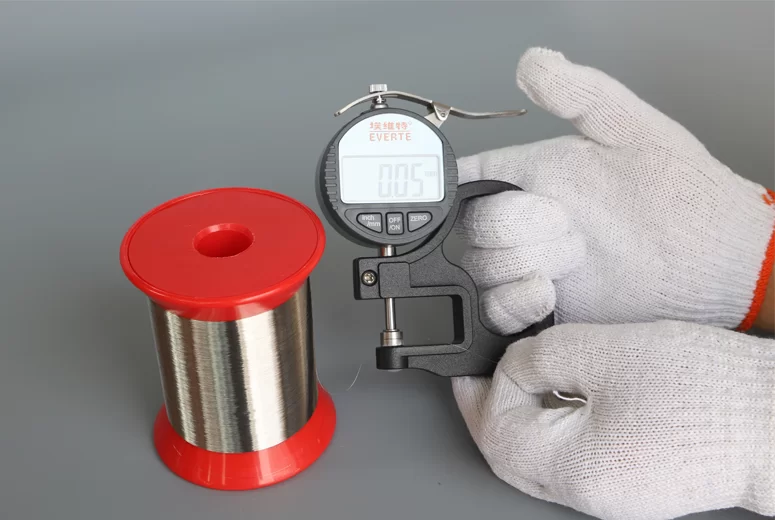

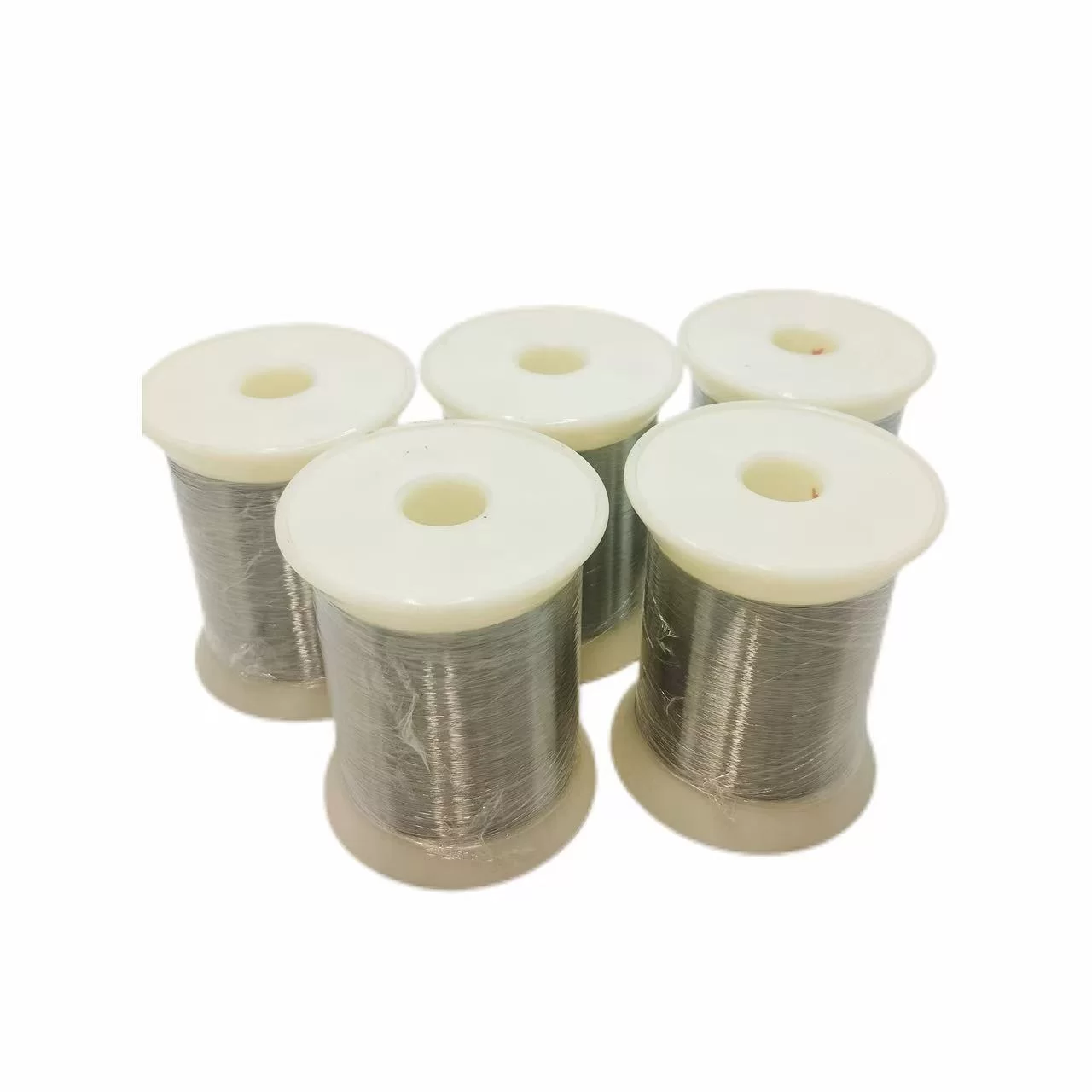

Spooling & Inspection: The finished microwire is spooled onto reels according to customer specifications, with precise control over weight and length. Each spool undergoes rigorous inspection for diameter tolerance, surface finish, and mechanical performance.
