Descriptions Of Stainless Steel Reverse Weave Mesh
Material Options
SS302: A versatile stainless steel grade providing reliable corrosion resistance for general-purpose use.
SS304: Renowned for outstanding resistance to corrosion and oxidation, making it suitable for a wide range of industrial and environmental conditions.
SS316: Delivers superior protection against corrosion, particularly effective in marine and chloride-rich environments.
SS316L: A low-carbon variant of SUS316, designed to offer even better resistance to corrosion and oxidation while minimizing carbide precipitation.
Mesh Count
From 54mesh × 15mesh: Designed for fine filtration, ensuring high precision and accurate separation.
Up to 350mesh × 40mesh: Suitable for coarse filtration, ideal for processing larger or heavier particles.
Wire Diameter Variations
With wire diameters spanning from 0.13mm×0.27mm to 0.45mm×0.6mm, the mesh covers applications from fine precision filtering to robust, high-strength filtration.
Thickness Availability
Minimum thickness:0.6mm-Slim and lightweight in design, making it suitable for moderate or general filtration purposes.
Maximum thickness:1.75mm-Extra sturdy and resilient, capable of handling demanding or heavy-load filtration operations.
Weaving Types
Reverse Plain Weave:Each warp wire crosses over and under each weft wire, creating a tight and regular square mesh.
Reverse Twill Weave:Each warp and weft wire crosses over two wires alternately, offering higher strength and load capacity.

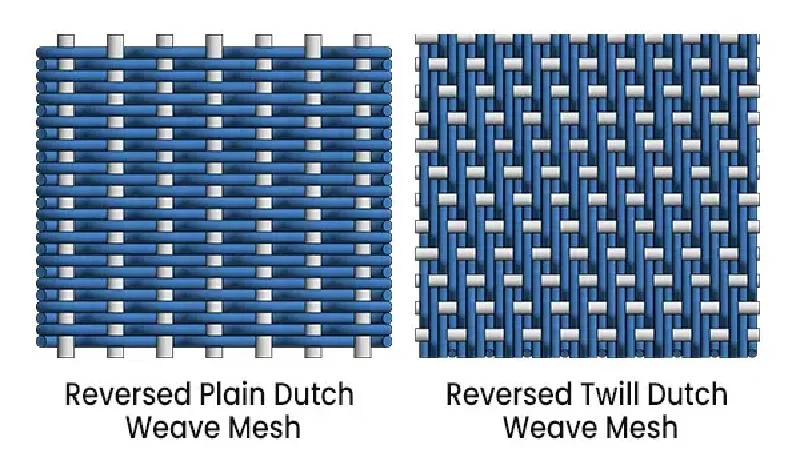

Reverse Plain Dutch Weave:Coarser warp wires with finer and denser weft wires, forming slit-like openings for fine filtration.
Reverse Twill Dutch Weave:Combines twill and Dutch weave features, providing excellent strength and precision filtration
Mesh counts
| Wire diameter(mm)
| Thickness(mm)
| Width(mm)
|
54*15
| 0.45*0.6
| 1.75
| 50——800
|
72*15
| 0.45*0.55
| 1.7
| 50——800
|
132*17
| 0.23*0.45
| 1.2
| 50——1000
|
160*18
| 0.28*0.45
| 1.27
| 50——1000
|
200*40
| 0.17*0.27
| 0.7
| 50——1500
|
260*40
| 0.15*0.27
| 0.65
| 50——1500
|
300*40
| 0.13*0.27
| 0.65
| 50——1500
|
350*40
| 0.13*0.27
| 0.6
| 50——1500
|
Note: Special size and specification can be customized.
Features Of Stainless Steel Reverse Weave Mesh
High Corrosion Resistance:Made of premium stainless steel wires such as SS304 and SS316, resistant to acids, alkalis, and seawater.
Excellent Heat Resistance:Performs reliably under high-temperature conditions.
Tight Weaving Structure:Reverse weaving ensures stable mesh openings and minimizes deformation.
High Strength & Durability:Withstands high pressure with long service life.
Customizable Filtration Precision:Available in various weaving types and wire diameters for applications ranging from coarse sieving to fine filtration.
Applications Of Stainless Steel Reverse Weave Mesh
Industrial Filtration:Applied in petroleum,chemical,pharmaceutical,and food industries for liquid and gas filtration.
Solid-Liquid Separation:Used in water treatment,wastewater treatment,and precision separation processes.
Sieving & Grading:Screening and grading of powders,sand,minerals,and other granular materials.
Security & Protection:Suitable for machinery guards,architectural safety mesh,and protective barriers.
High-Temperature Applications:Ideal for filtration and protection in metallurgy,heat treatment,and other high-temperature environments.

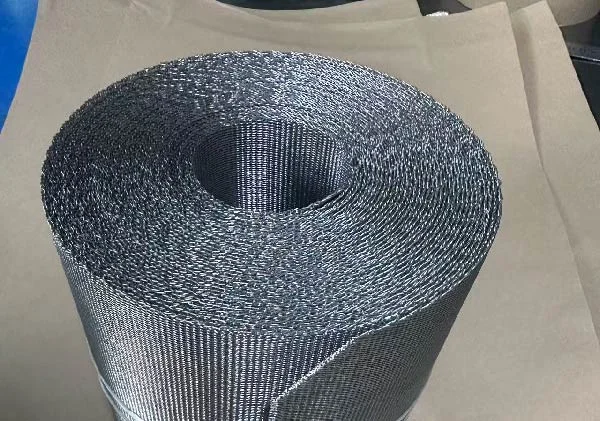

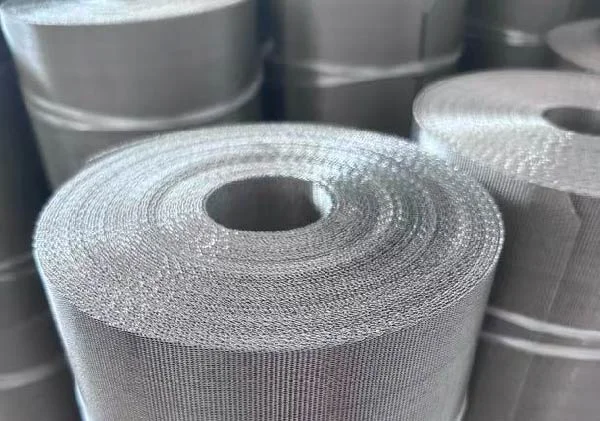

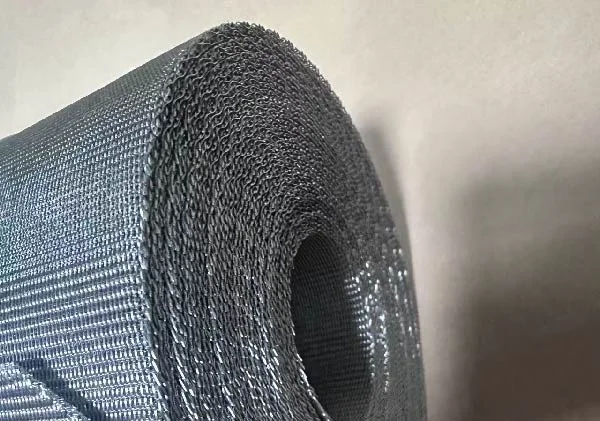

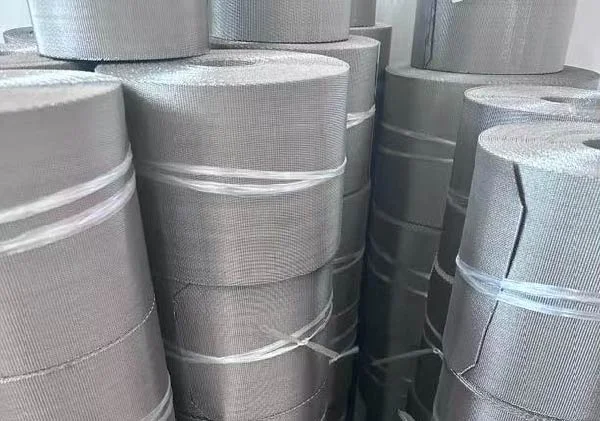

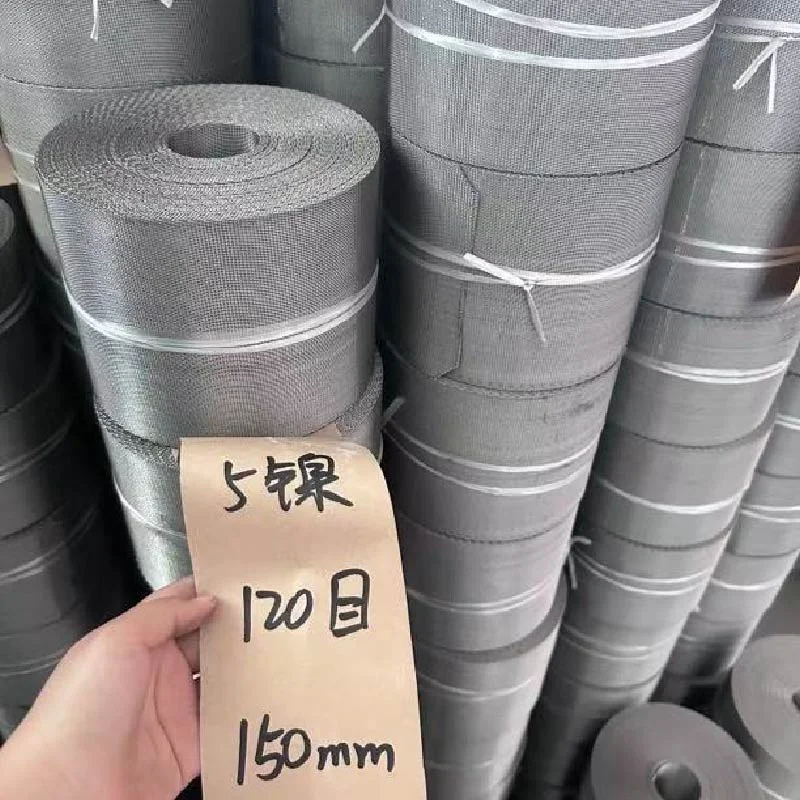

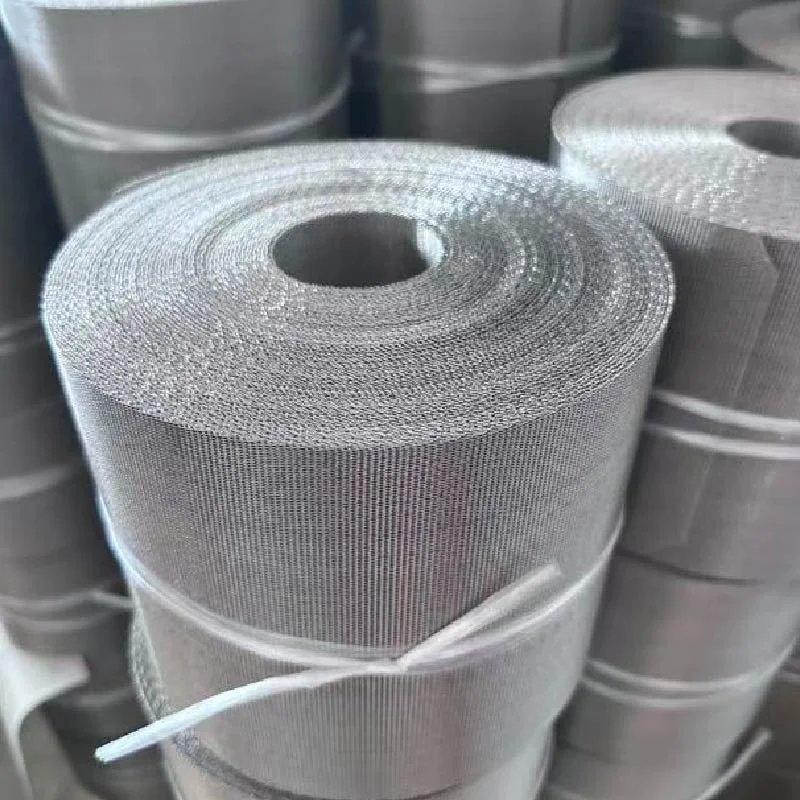

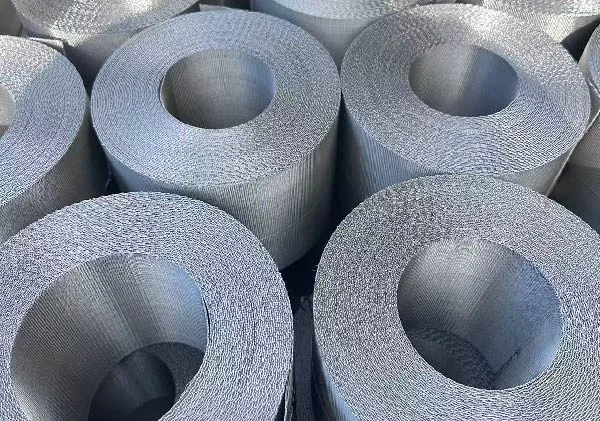

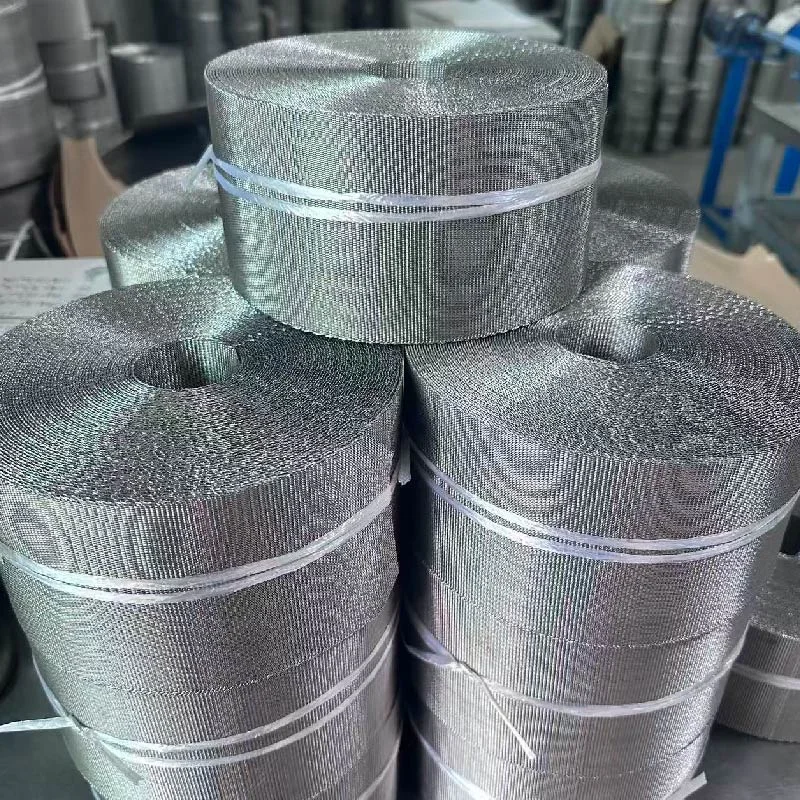

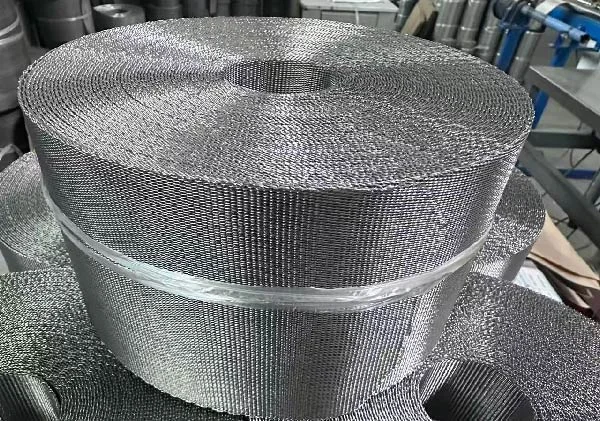

Photos Display Of Stainless Steel Reverse Weave Mesh
Dutch Reverse Weave Wire Mesh
Engineered for exceptional strength and precision, this mesh type is ideal for efficient particle separation in a wide range of filtration systems. Its reverse Dutch weaving structure ensures enhanced durability and accuracy, making it suitable for industries such as water treatment and fine particulate filtration.
Reverse Dutch Wire Cloth Fabric
Offering a balance of flexibility and structural strength, this mesh provides versatility for a variety of filtration systems. Its cloth-like pliability combined with a durable framework makes it excellent for customized filtration solutions in industries such as automotive and aerospace engineering.
Precision Reverse Dutch Mesh
This high-accuracy mesh is specifically crafted for precision-critical filtration operations. It is especially valuable in scientific research and high-tech manufacturing where exact particle separation is crucial, such as in laboratory experiments and electronic component production.
Heavy-Duty Reverse Dutch Weave Mesh
Built for maximum durability and strength, this mesh is essential for heavy-duty industrial applications. It is commonly used in mining, oil extraction, and construction sectors where rugged, long-lasting filtration materials are required to withstand harsh working conditions.
Stainless Twill Reverse Dutch Mesh
Designed with a twill weave pattern, this mesh performs exceptionally well in demanding filtration conditions. The dual-directional weave improves filtration efficiency, making it a preferred choice in applications that require both high strength and superior precision, such as chemical processing and advanced material production.
Fine Reverse Dutch Weave Wire Mesh
Featuring fine and dense weaving, this mesh is specially designed for high-precision filtration tasks. It is widely used in pharmaceutical and chemical fields where accurate particle control is essential, including fine chemical production and medical filter manufacturing.
Packaging Of Stainless Steel Reverse Weave Mesh
Inner:Waterproof kraft paper/plastic film
Outer:Woven bag/wooden case reinforcement
Customized packaging available
