Structure & Manufacturing Process of Stainless Steel Mesh Filter Cap

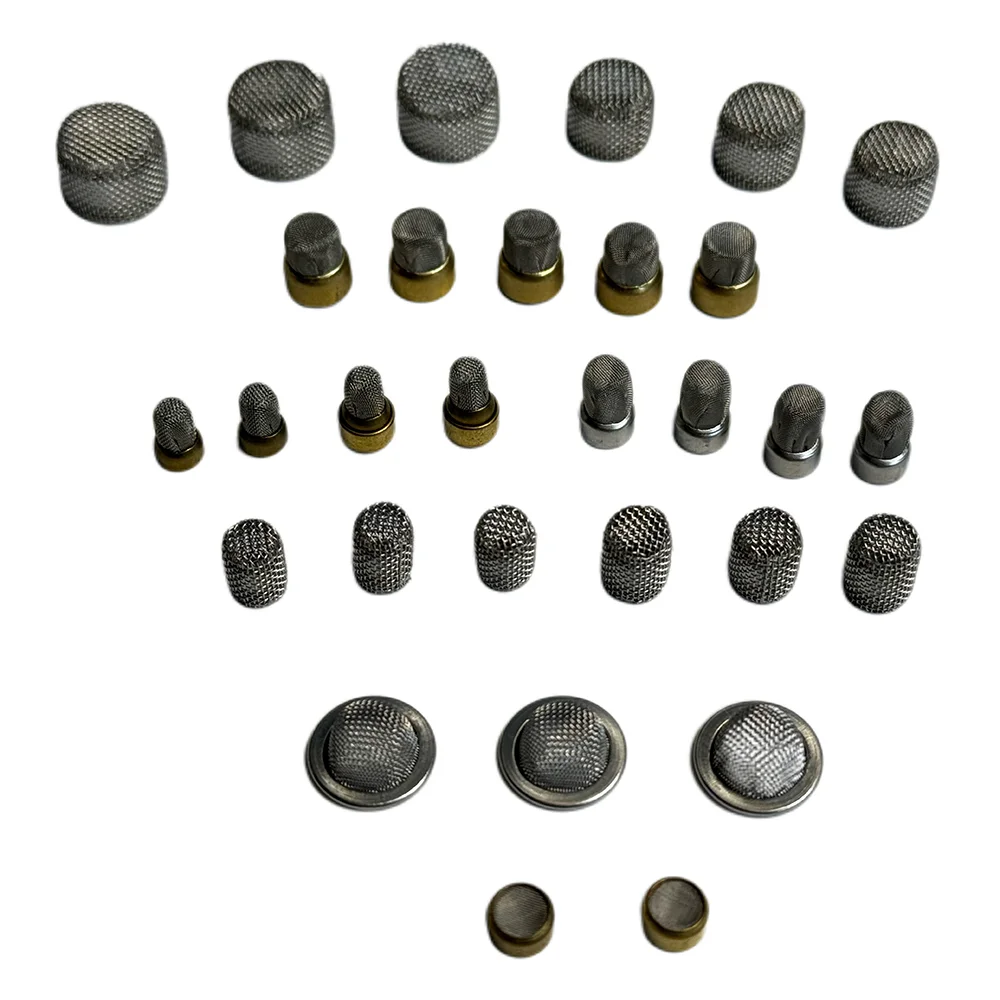

Structure

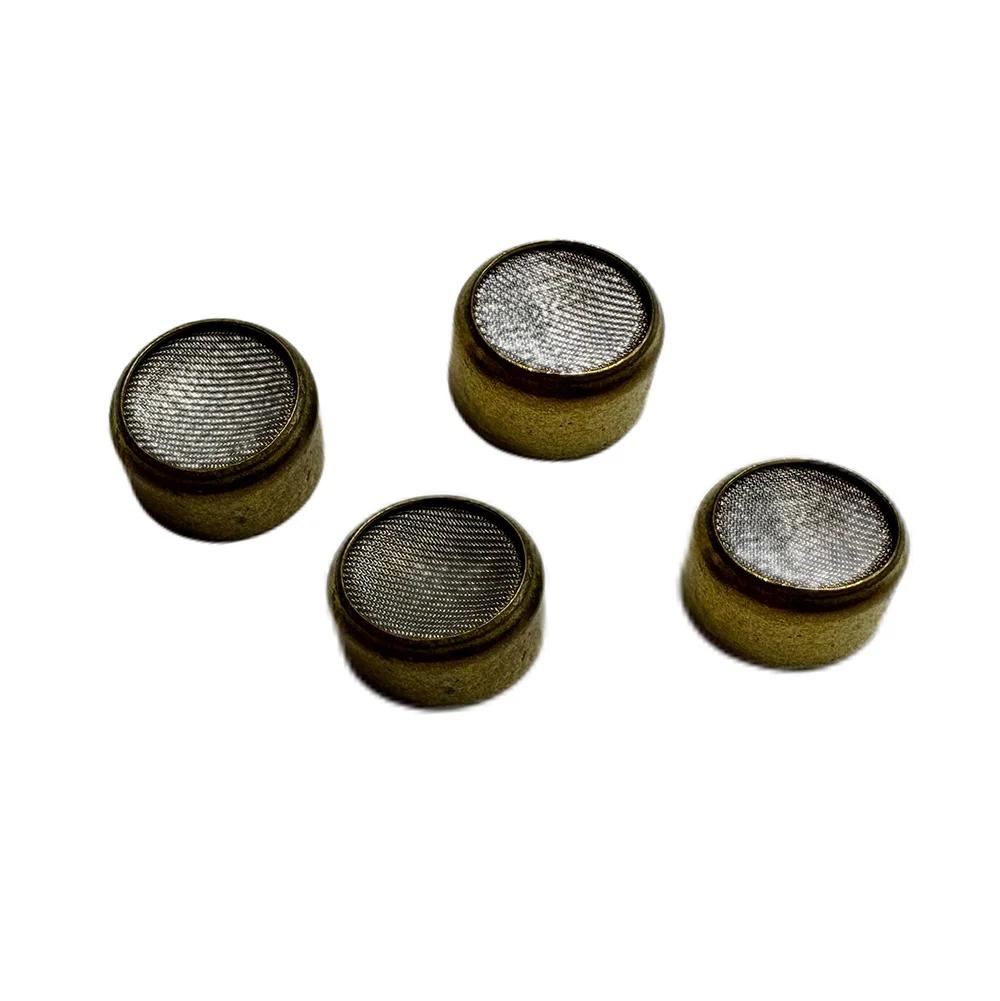

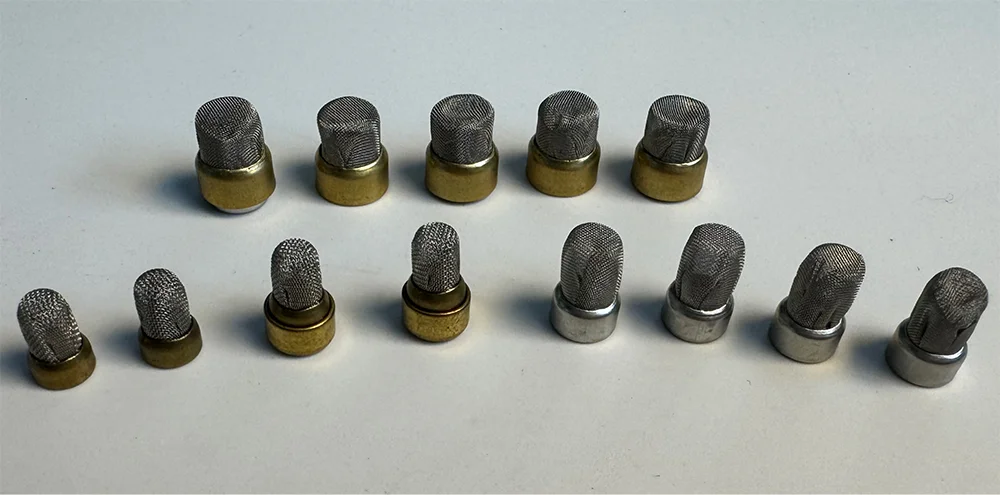

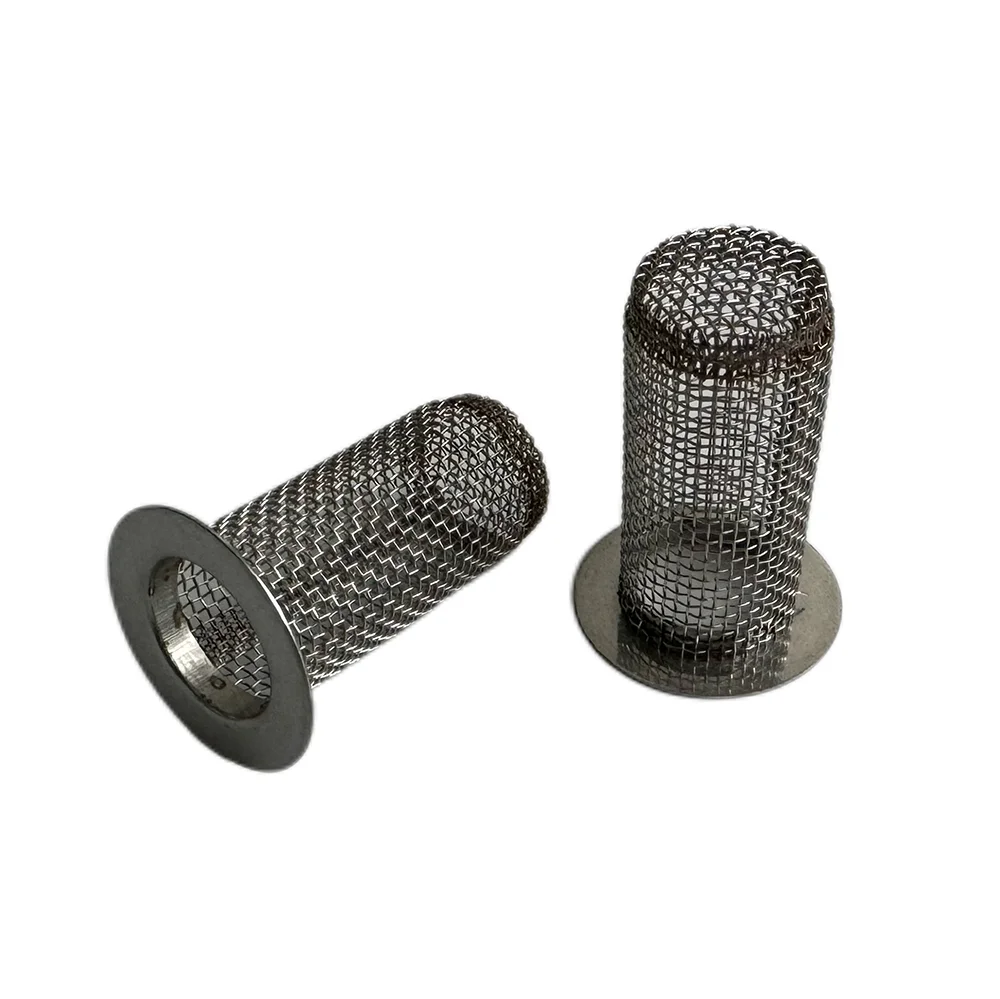

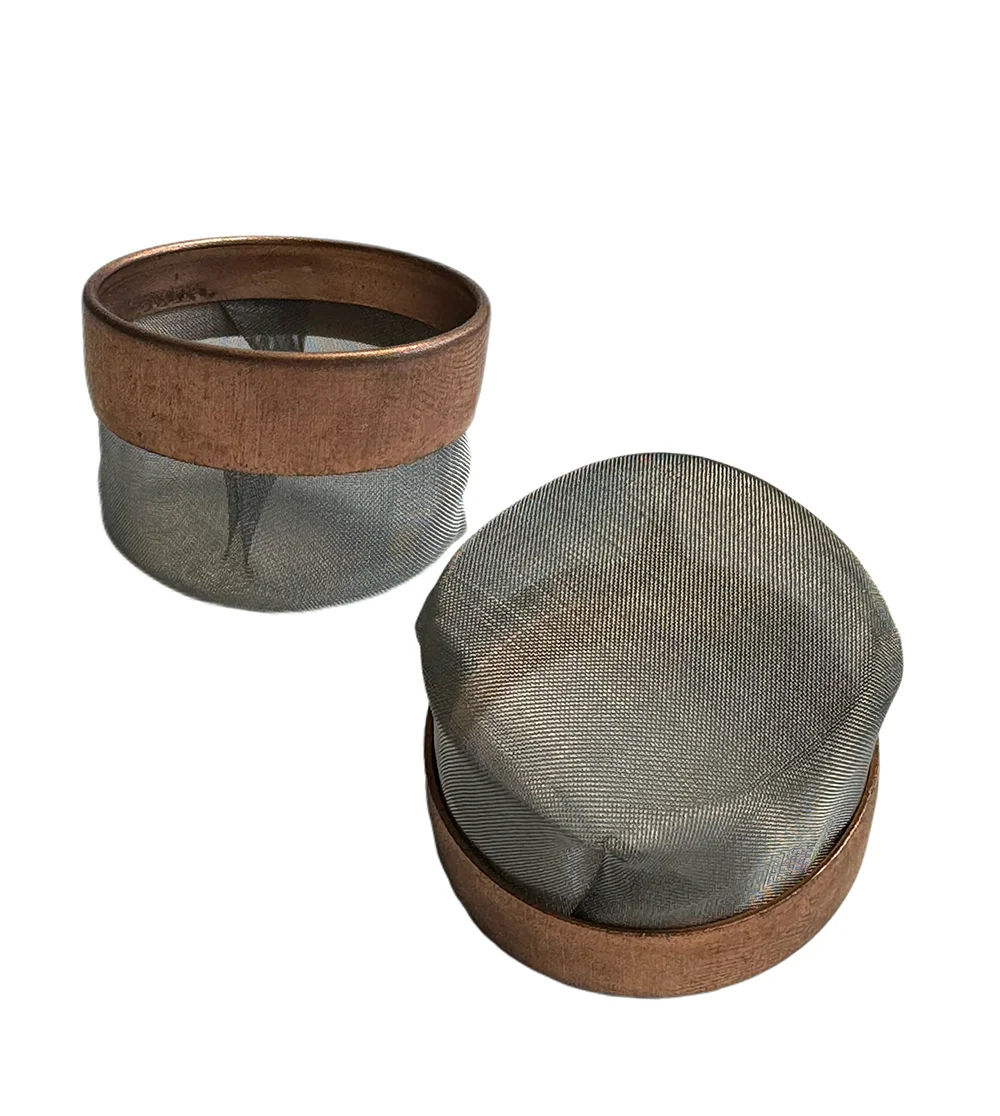

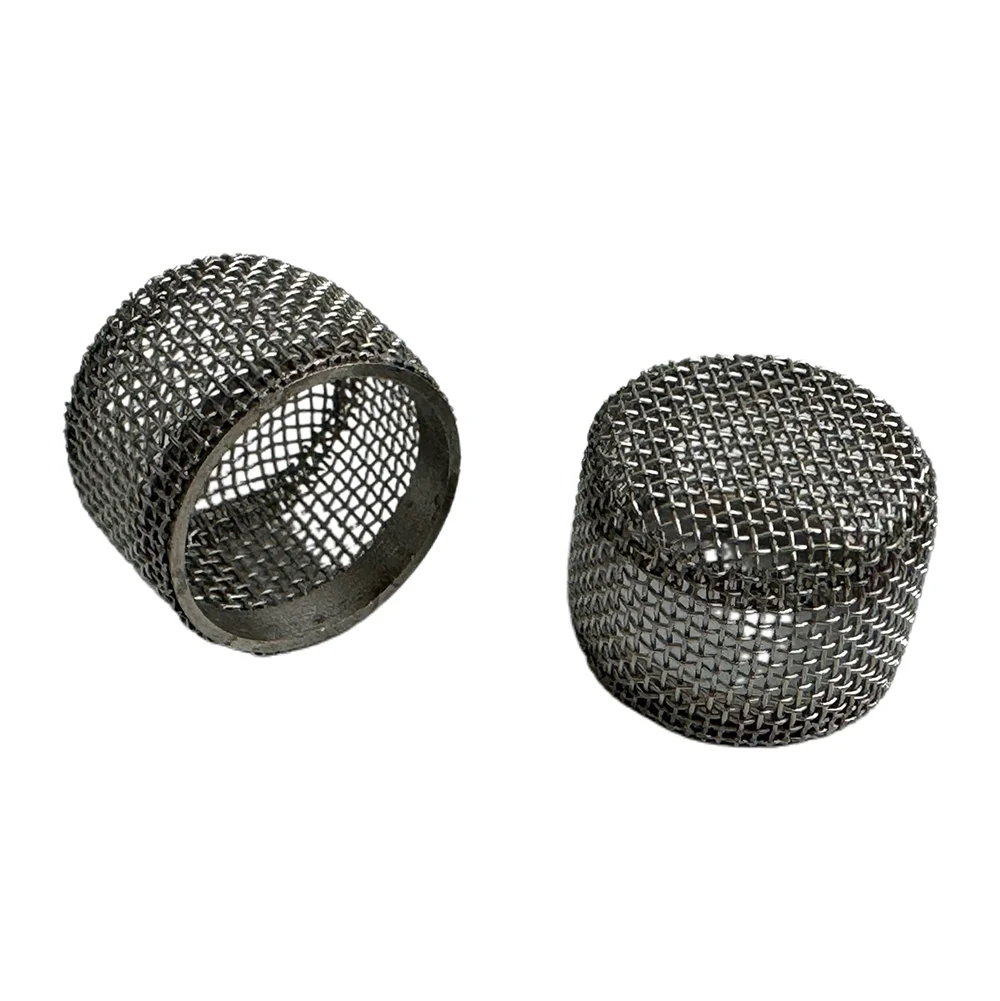

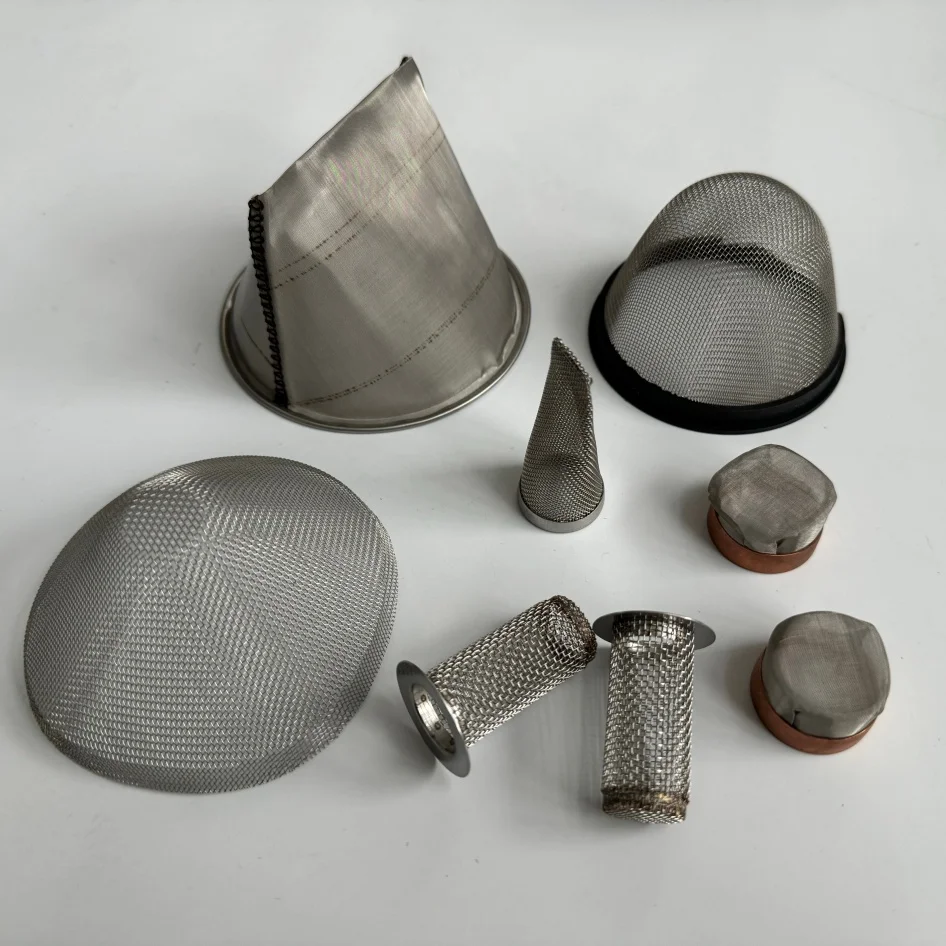

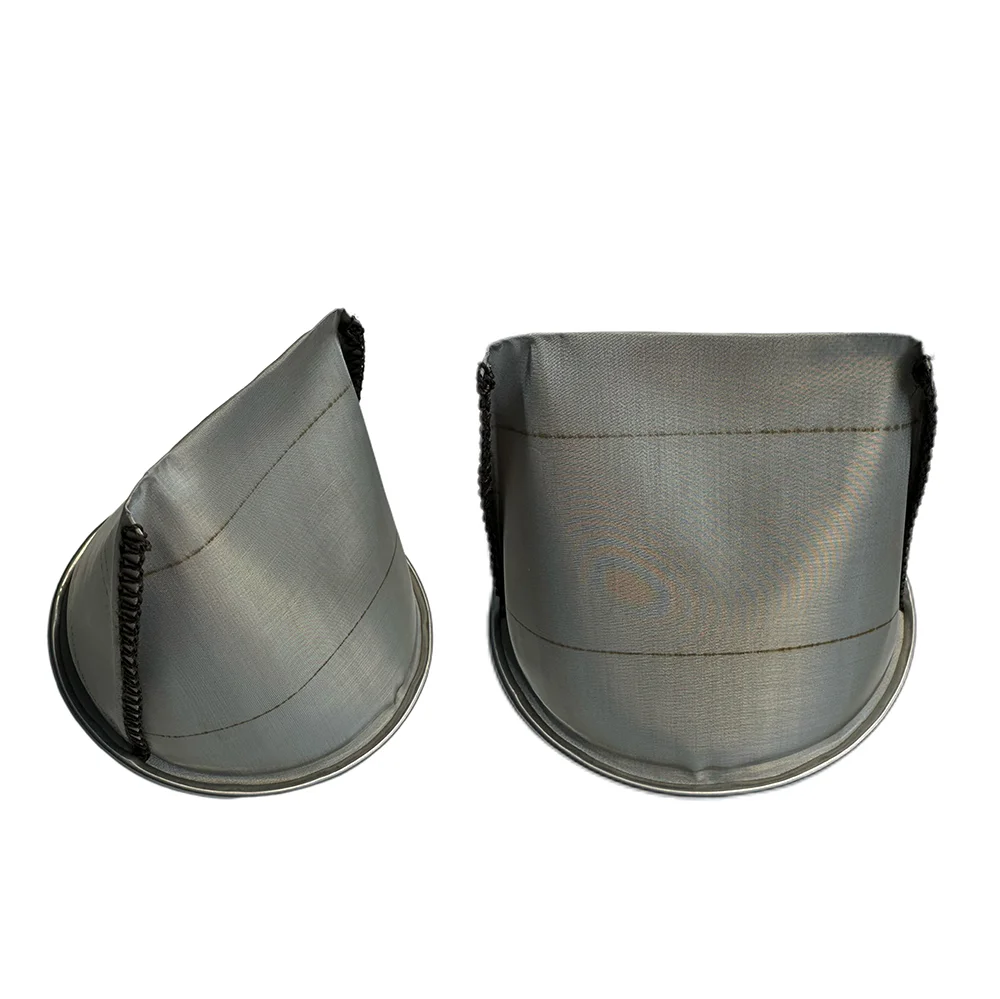

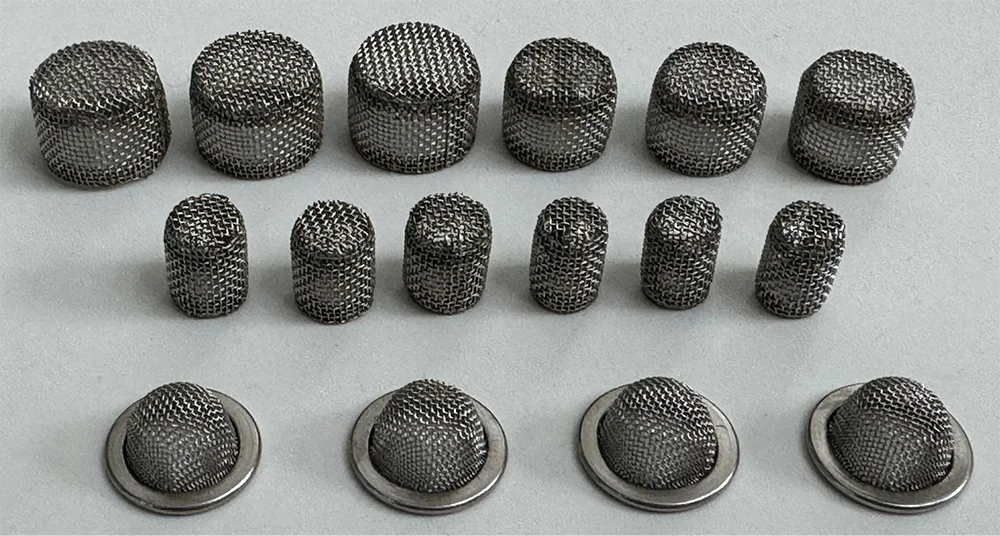

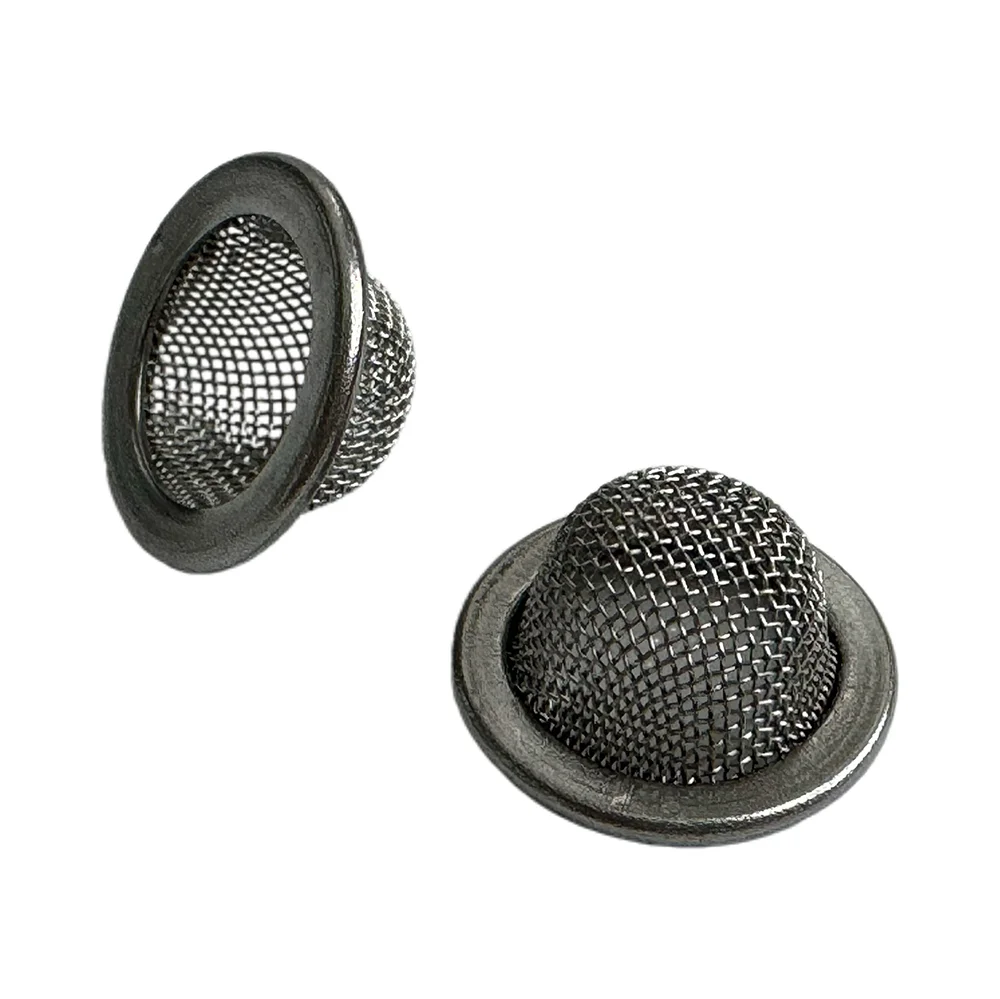

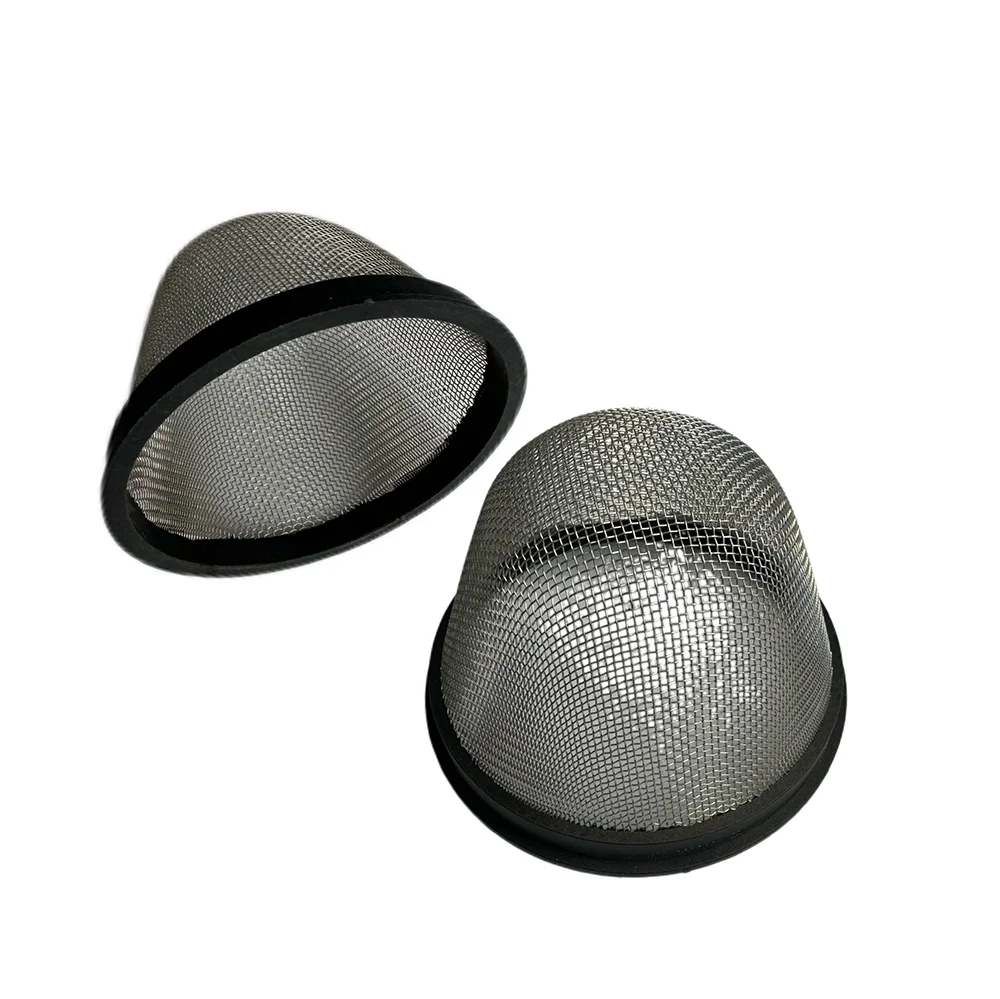

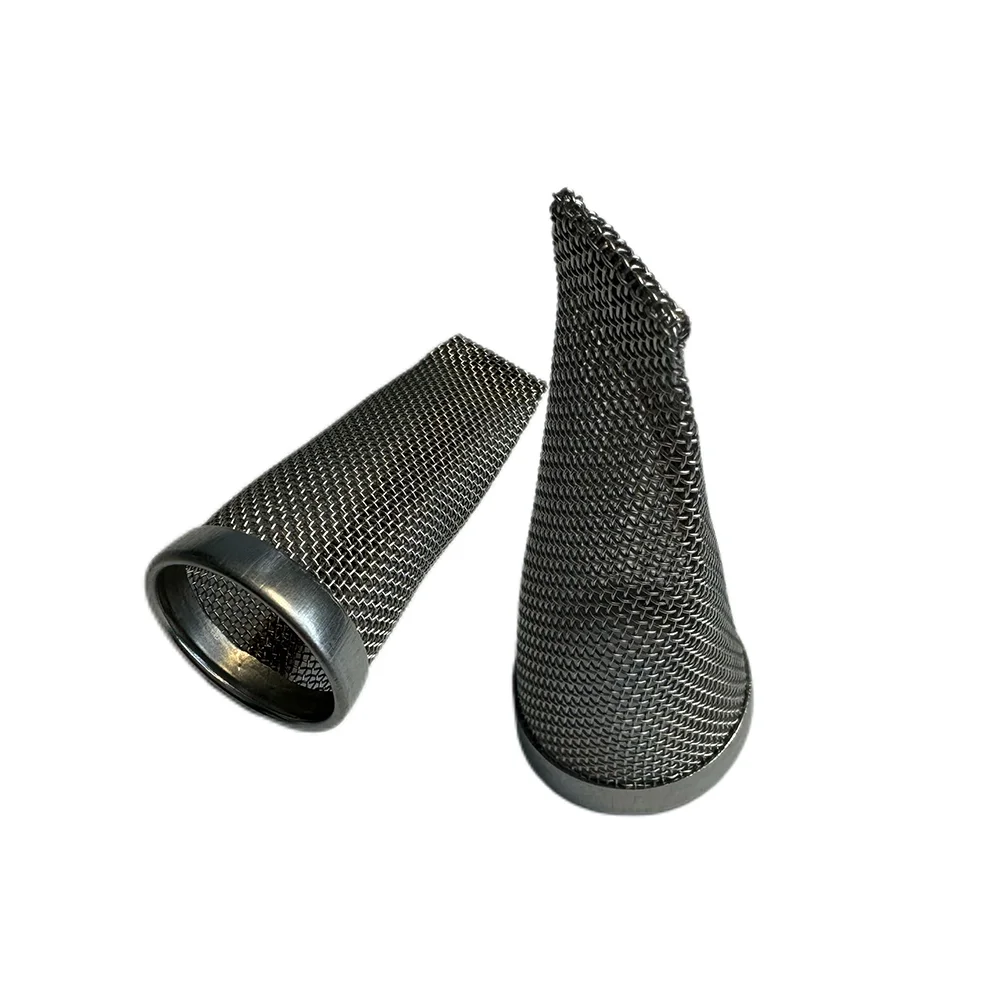

Available in various designs, including hemispherical, dome-shaped, flat-top, conical, cylindrical, as well as flanged or threaded filter caps, to suit different installation requirements.
Mesh Type

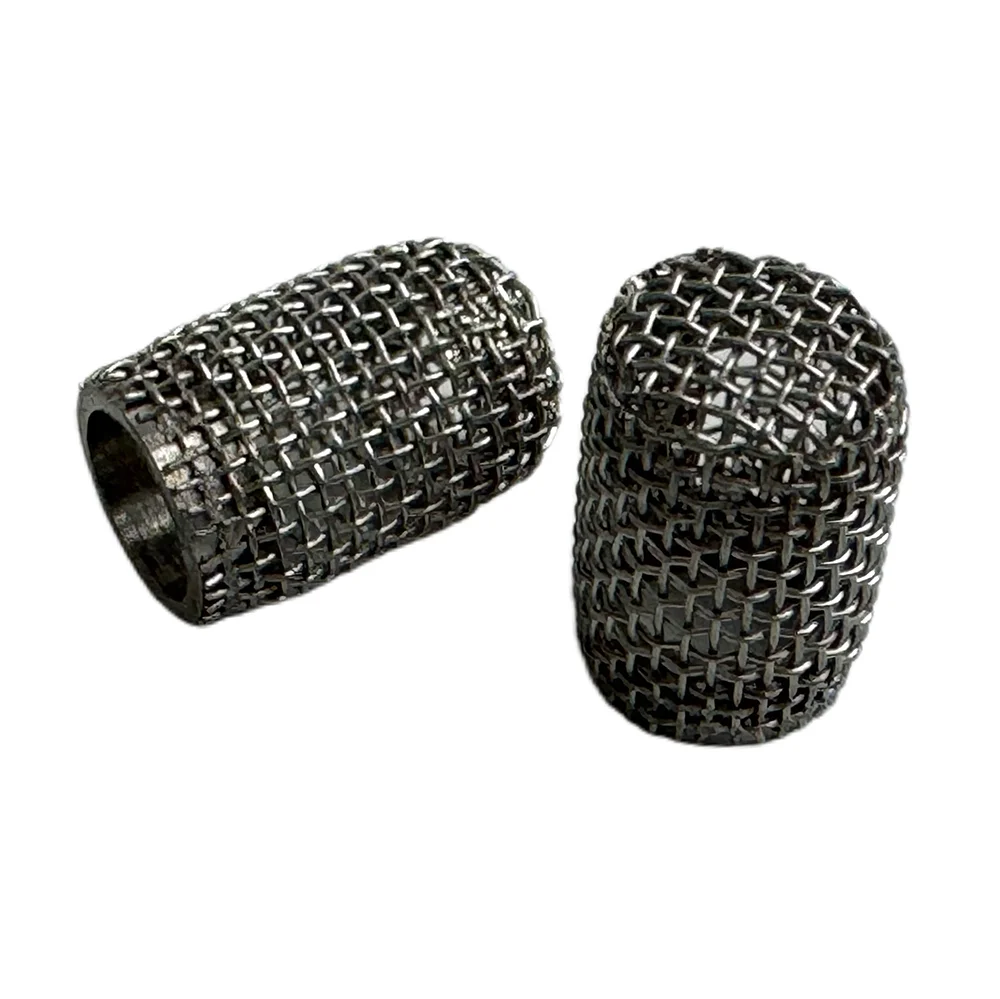

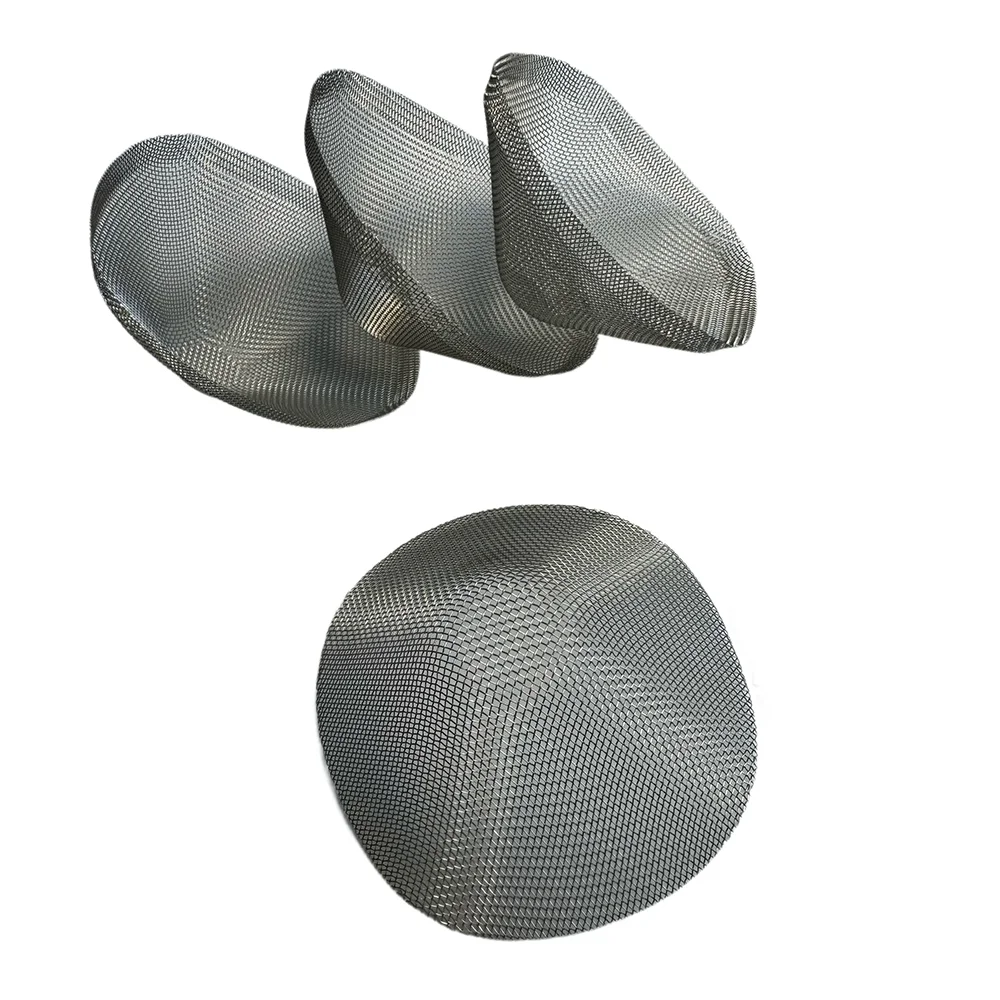

Made from single-layer stainless steel wire mesh or multi-layer sintered mesh, depending on filtration accuracy and strength requirements.
Manufacturing Process
Cutting → Stamping or Rolling → Welding / Spot Welding → Forming → Surface Treatment → Inspection.
Precision filter caps often use laser cutting, TIG/spot welding, and ultrasonic cleaning.

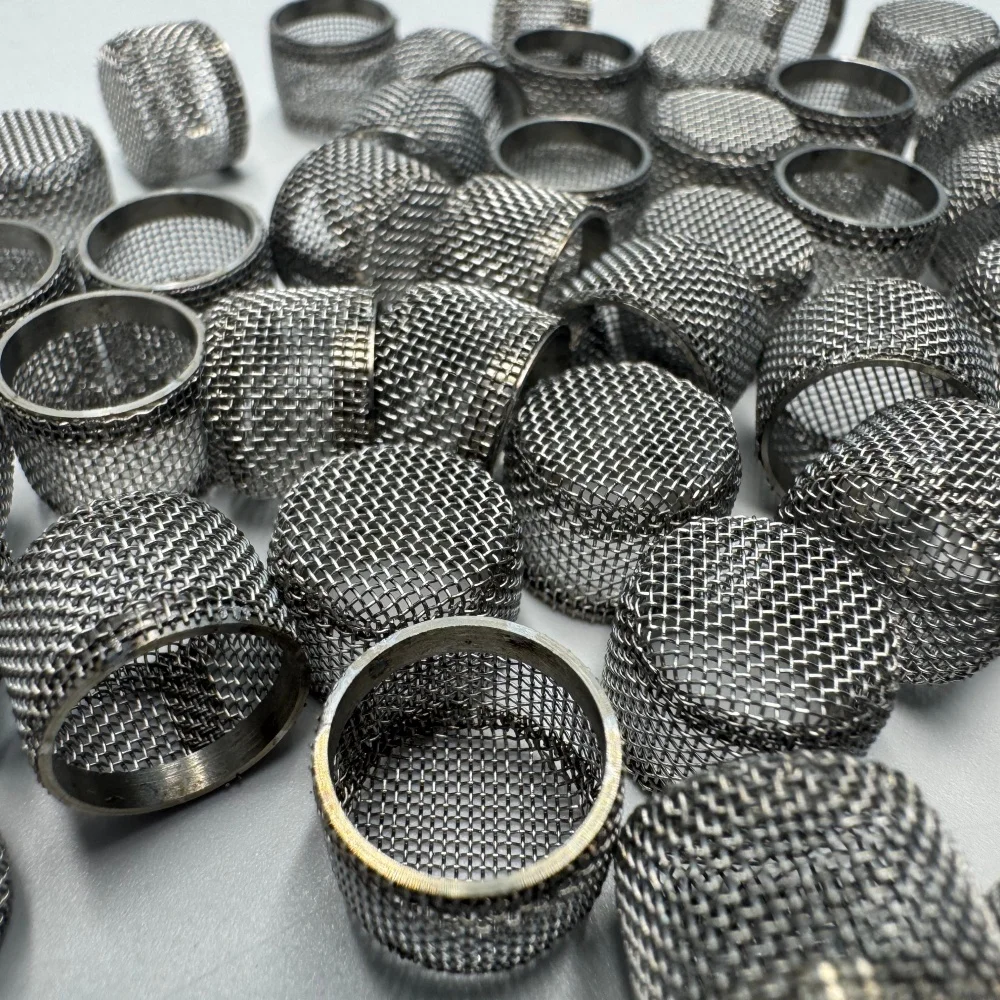

Edge & Connection
Welding, flanging, rolled edges, or reinforced rims ensure strength and burr-free handling.
Surface Treatment
Pickling & passivation, electro-polishing, sandblasting; nickel plating available (rare).
Installation
Directly installed in pipelines, valves, pumps, and industrial equipment for stable filtration and protection.
Material Options of Stainless Steel Mesh Filter Cap
The Stainless Steel Mesh Filter Cap is commonly manufactured using high-quality stainless steel materials, including Stainless Steel 304 / 304L and Stainless Steel 316 / 316L. Different materials can be selected according to corrosion resistance, temperature requirements, and working environments such as chemical, food, or industrial applications.These materials offer excellent corrosion resistance, mechanical strength, and durability for a wide range of operating environments.
For applications requiring enhanced resistance to high temperature, strong acids, or harsh chemical conditions, other special alloys can be selected upon request.
Food-grade and industrial-grade materials are available to meet different industry standards and application requirements.
Filtration Performance of Stainless Steel Mesh Filter Cap
The Stainless Steel Mesh Filter Cap provides stable and reliable filtration performance for liquid, gas, and steam applications. The filtration accuracy is determined by the mesh size or micron rating of the stainless steel wire mesh, ensuring consistent particle retention under continuous operating conditions.
The mesh size and filtration accuracy can be customized according to application requirements. Uniform pore distribution ensures reliable filtration efficiency, low pressure drop, and stable performance during operation.
Mesh Count | Micron Rating (Approx.) | Filtration Accuracy | Typical Applications |
20 mesh | 850 μm | Coarse filtration | Large particle removal, inlet protection |
40 mesh | 425 μm | Medium filtration | General liquid filtration |
60 mesh | 250 μm | Fine filtration | Pumps and pipeline protection |
80 mesh | 180 μm | Fine filtration | Hydraulic and pneumatic systems |
100 mesh | 150 μm | Precision filtration | Chemical and industrial filtration |
150 mesh | 100 μm | Precision filtration | Gas and steam filtration |
200 mesh | 74 μm | High precision | Fine particle filtration |
300 mesh | 50 μm | High precision | Precision industrial applications |
Note: Filtration accuracy and pressure drop may vary depending on wire diameter, mesh structure, and operating conditions. Custom micron ratings are available upon request.
Specifications of Stainless Steel Mesh Filter Cap
Mesh Size / Micron Rating
The commonly used mesh range covers coarse filtration (below 10 mesh) to fine filtration (above 400 mesh), corresponding to pore sizes from several hundred microns down to tens of microns. Sintered stainless steel mesh structures can achieve sub-micron filtration accuracy, depending on the manufacturing process.
Open Area / Air Permeability
The open area directly affects flow resistance and filtration efficiency. A higher open area results in lower pressure drop but reduced particle retention capability, while a lower open area improves filtration performance at the expense of increased pressure loss.
Wire Diameter & Layer Structure
Multi-layer woven or sintered mesh structures enhance filtration accuracy and improve mechanical strength. Wire diameter plays a key role in determining overall strength, pore geometry, and durability of the stainless steel mesh filter.
Mechanical Strength
Mechanical strength depends on the stainless steel grade, support structure, and welding or bonding points. The filter must withstand operating pressure, impact, and vibration under actual working conditions.
Temperature & Pressure Resistance
Standard stainless steel mesh filters can withstand high temperatures, typically above 300°C for short-term exposure, depending on the material grade. Pressure resistance is mainly determined by structural design; most applications involve atmospheric or low-pressure conditions, while high-pressure applications require reinforced structures.
Typical Applications of Stainless Steel Mesh Filter Cap
Pipelines & Equipment Vents
Used on vent openings of pipelines and equipment to prevent dust, insects, and foreign objects from entering. Common applications include chemical containers, fuel tanks, pump housings, and storage tank vents.
Instruments & Sensors
Protects vent holes or air inlets of instruments and sensors, preventing particle intrusion, blockage, or damage to sensitive components.
Liquid Systems
Applied to lubricant return lines, pre-filtration stages, and oil–water separation systems to provide coarse filtration and equipment protection.
Spraying & Nozzle Systems
Prevents nozzle clogging and helps maintain a uniform flow pattern, ensuring stable spraying performance.
Food & Pharmaceutical Applications
Used for non-contact protection or low-precision coarse filtration. Food-grade stainless steel is required, with polished and passivated surface treatment to meet hygiene standards.
Building & Ventilation Systems
Commonly used for exterior wall vents, ventilation caps, and insect protection screens in HVAC systems.
Wastewater Treatment, Marine & Offshore Equipment
Suitable for wastewater treatment facilities, marine equipment, and ship ventilation systems, where high corrosion resistance is required. Materials such as 316 / 316L stainless steel or higher-grade alloys are recommended.
Why Stainless Steel Mesh Filter Caps Are Chosen?
Excellent corrosion and temperature resistance
High pressure resistance and strength
Burr-free edges and smooth surface
Reusable and easy to clean
Stable structure with long service life
Available in customized sizes and mesh ratings
FAQ
What Is The Minimum Filtration Accuracy Available?
The minimum filtration accuracy depends on the mesh count and wire diameter of the stainless steel mesh used in the filter cap. Typically, we can provide filtration ratings as fine as 50 microns (300 mesh) for precise applications. Custom filtration ratings can also be manufactured upon request to meet specific process requirements.
Do You Support OEM Or Custom Designs?
Yes, we support both OEM and custom designs. Stainless Steel Mesh Filter Caps can be manufactured according to your drawings, samples, or specific technical requirements, including size, shape, material, mesh count, and filtration accuracy. Our production team ensures consistent quality and performance for
Can The Filter Caps Be Cleaned And Reused?
Yes, stainless steel mesh filter caps are reusable. They can be easily cleaned using water, compressed air, or mild chemical solutions without compromising filtration performance or structural integrity.
Can You Produce Filter Caps According To Drawings Or Samples?
Yes, we can produce stainless steel mesh filter caps based on your drawings or samples. Customized dimensions, mesh types, and filtration ratings are all supported.
