Descriptions Of Stainless Steel Dutch Weave Mesh
Material Options
SS302:A dependable stainless steel option with balanced strength and corrosion resistance, ideal for standard filtration and screening applications.
SS304:Offers excellent oxidation and corrosion resistance, making it suitable for most industrial environments and common filtration needs.
SS316:Provides higher corrosion resistance,particularly effective in chemical processing,seawater,and chloride-containing environments.
SS316L:A low-carbon modification of SS316,delivering enhanced resistance to corrosion and sensitization, ideal for high-temperature or corrosive filtration processes.
Mesh Count Range
From 24mesh×110mesh:Designed for medium-precision filtration with increased durability,suitable for applications requiring good flow capacity.
Up to 400mesh×2800mesh:Ultra-fine filtration capability,engineered for precise particle separation in high-demand industrial processes such as extrusion, polymer filtration, and hydraulic systems.
Table 1: Specifications of Stainless Steel Plain Dutch Wire Mesh |
Mesh Count | Particle retention (inch) | Thickness (inch) | Weight (lbs./sq.ft.) |
10 × 52 | 0.0128 | 0.059 | 1.03 |
12 × 64 | 0.0116 | 0.048 | 0.76 |
14 × 88 | 0.0096 | 0.037 | 0.69 |
24 × 110 | 0.0054 | 0.03 | 0.52 |
30 × 150 | 0.0042 | 0.021 | 0.37 |
40 × 200 | 0.0033 | 0.016 | 0.27 |
30 × 150 | 0.0032 | 0.02 | 0.38 |
50 × 250 | 0.0025 | 0.012 | 0.22 |
Table 2: Specifications of Stainless Steel Twill Dutch Wire Mesh |
Weft × Warp (inch) | Aperture Size (μm) | Available Area (%) | Thickness (mm) |
20 × 270 | 119 | 17.6 | 0.65 |
20 × 200 | 118 | 12.1 | 0.915 |
24 × 300 | 110 | 19.6 | 0.64 |
20 × 150 | 101 | 7.5 | 1.16 |
30 × 340 | 89 | 17.9 | 0.60 |
30 × 270 | 77 | 11.2 | 0.68 |
40 × 540 | 70 | 23.5 | 0.38 |
40 × 430 | 63 | 15.4 | 0.43 |
50 × 600 | 51 | 17.2 | 0.305 |
50 × 500 | 47 | 12 | 0.364 |
65 × 600 | 36 | 0.32 |
70 × 600 | 31 | 10.1 |
78 × 760 | 13.5 | 0.254 |
78 × 680 | 29 | 10.3 | 0.272 |
80 × 680 | 28 | 9.8 |
90 × 850 | 26 | 12.7 | 0.226 |
90 × 760 | 24 | 9.6 | 0.242 |
100 × 850 | 22 | 10 | 0.226 |
130 × 1500 | 21 | 18.6 | 0.135 |
100 × 760 | 20 | 7.4 | 0.242 |
130 × 1200 | 18 | 12 | 0.161 |
130 × 1100 | 17 | 9.4 | 0.171 |
150 × 1400 | 15 | 11.4 | 0.143 |
160 × 1500 | 12.4 | 0.135 |
165 × 1500 | 14 | 11.4 |
174 × 1700 | 13 | 12.9 | 0.127 |
165 × 1400 | 8.8 | 0.143 |
174 × 1400 | 11 | 7.4 |
203 × 1600 | 10 | 9.3 | 0.114 |
Wire Diameter Range
With wire diameters available from 0.015mm×0.14mm up to 0.20mm×0.55mm, stainless steel Dutch weave mesh supports a broad spectrum of filtration needs-from highly precise micro-filtration to strong,pressure-resistant industrial filtration.
Thickness Availability
Minimum thickness:0.10mm
Lightweight and flexible, suitable for fine filtration layers and low-pressure systems.
Maximum thickness:1.20mm
High-strength,rigid structure capable of withstanding demanding pressure,extrusion filtering, and continuous industrial operations.

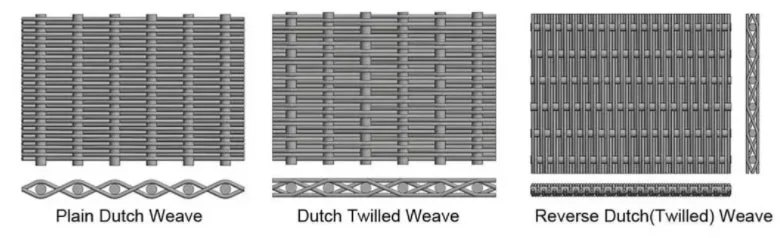

Weaving Types
Plain Dutch Weave:Plain Dutch Weave mesh is woven with coarse warp wires and densely packed fine weft wires, creating a compact structure with extremely small and stable apertures. It offers micron-level filtration, smooth surface, and reduced clogging, making it ideal for medium-pressure fine filtration.
Twill Dutch Weave:Twill Dutch Weave mesh combines the Dutch weave structure with a twill pattern, where each weft wire passes over multiple warp wires. This results in higher mechanical strength, finer filtration, and excellent pressure resistance. It is suitable for demanding environments requiring stable micro-filtration under high differential pressure.
Reverse Dutch Weave:Reverse Dutch Weave mesh uses fine warp wires and coarse weft wires, opposite of the Plain Dutch structure. This design creates higher strength, larger flow capacity, better pressure resistance, and a smooth surface ideal for backwashing and high-viscosity media. It is widely used in heavy-duty and high-pressure filtration.

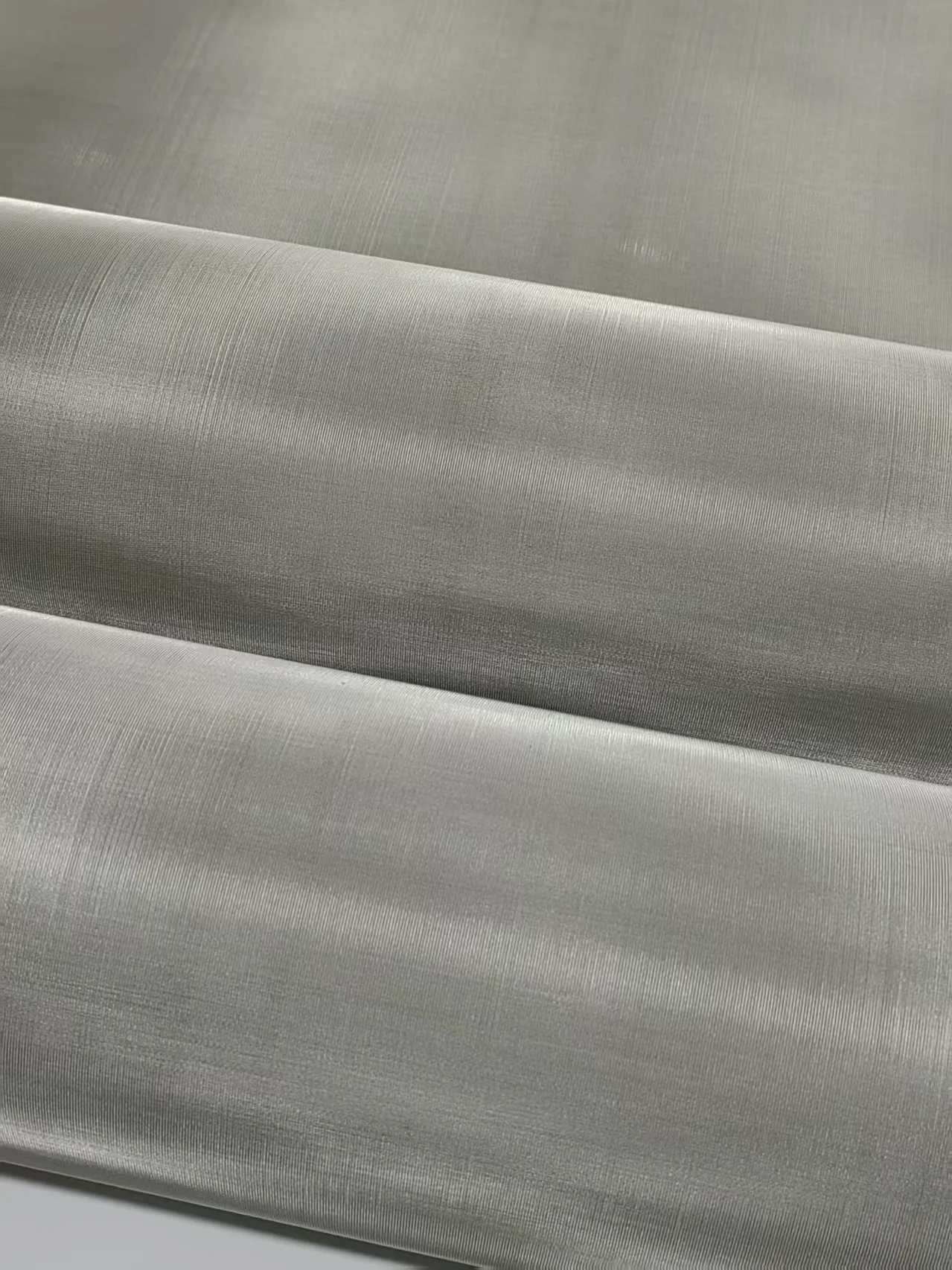

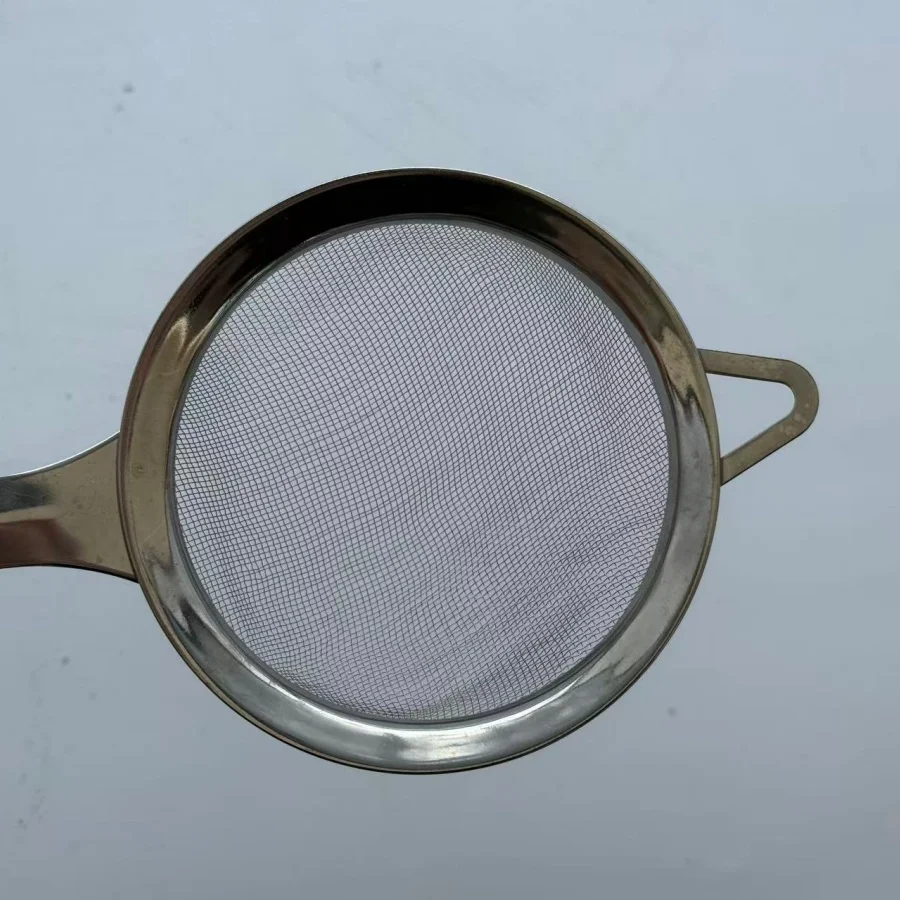

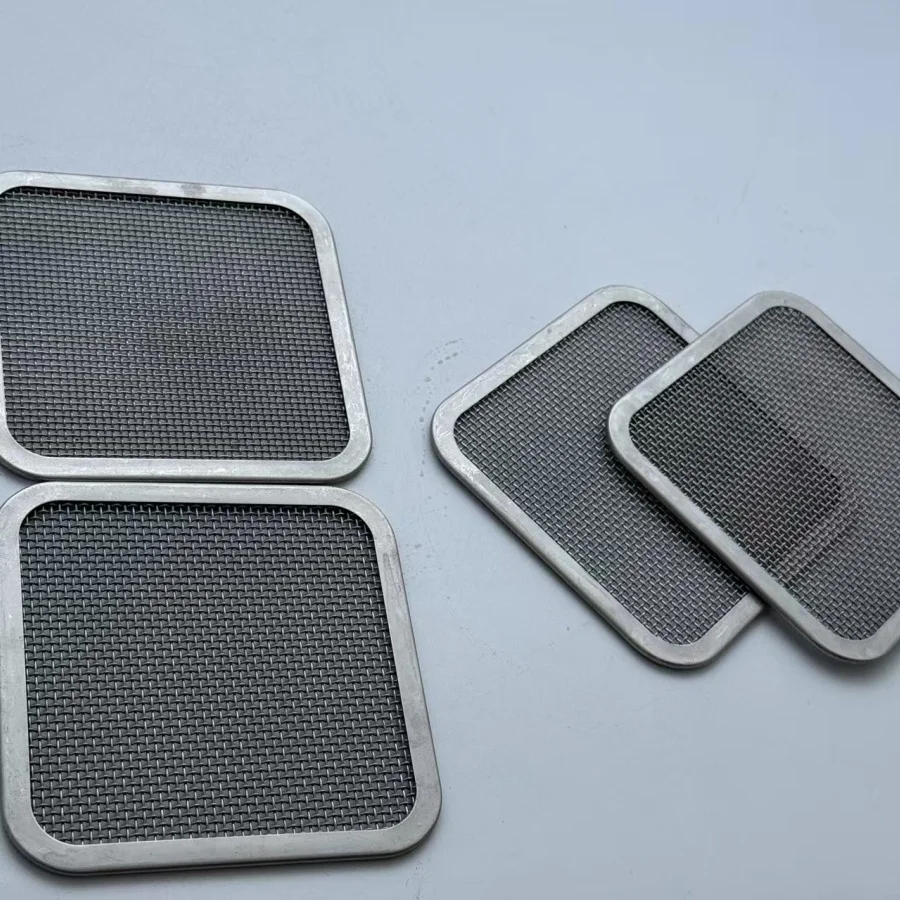

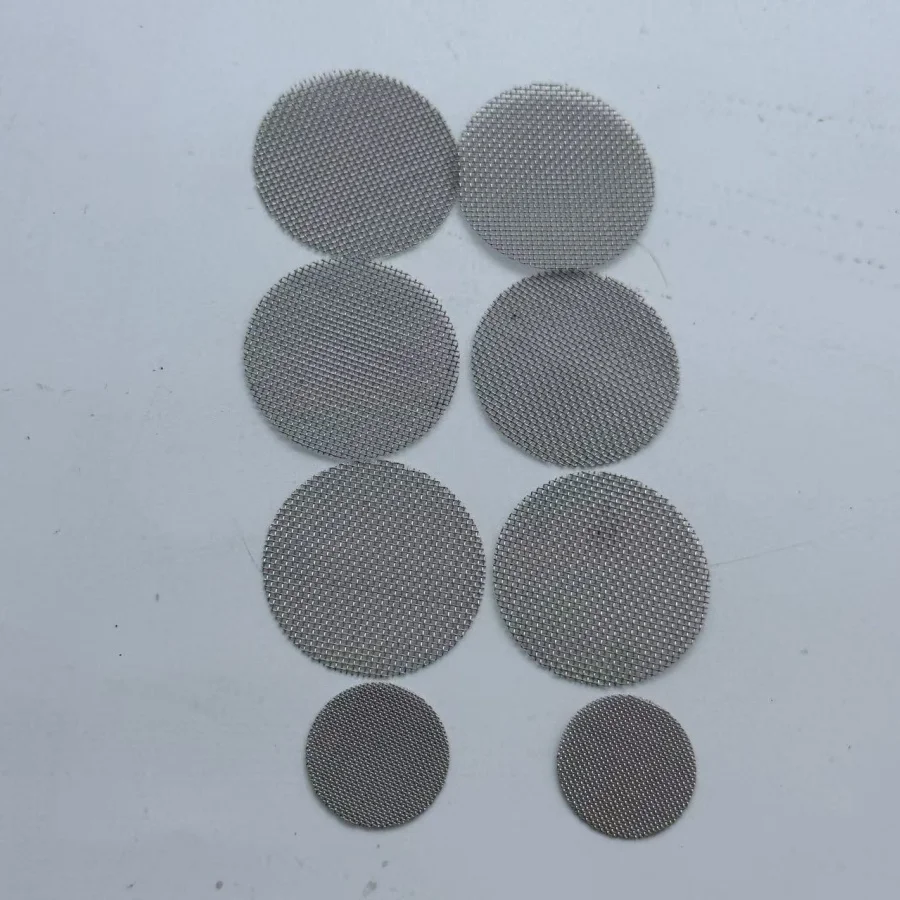

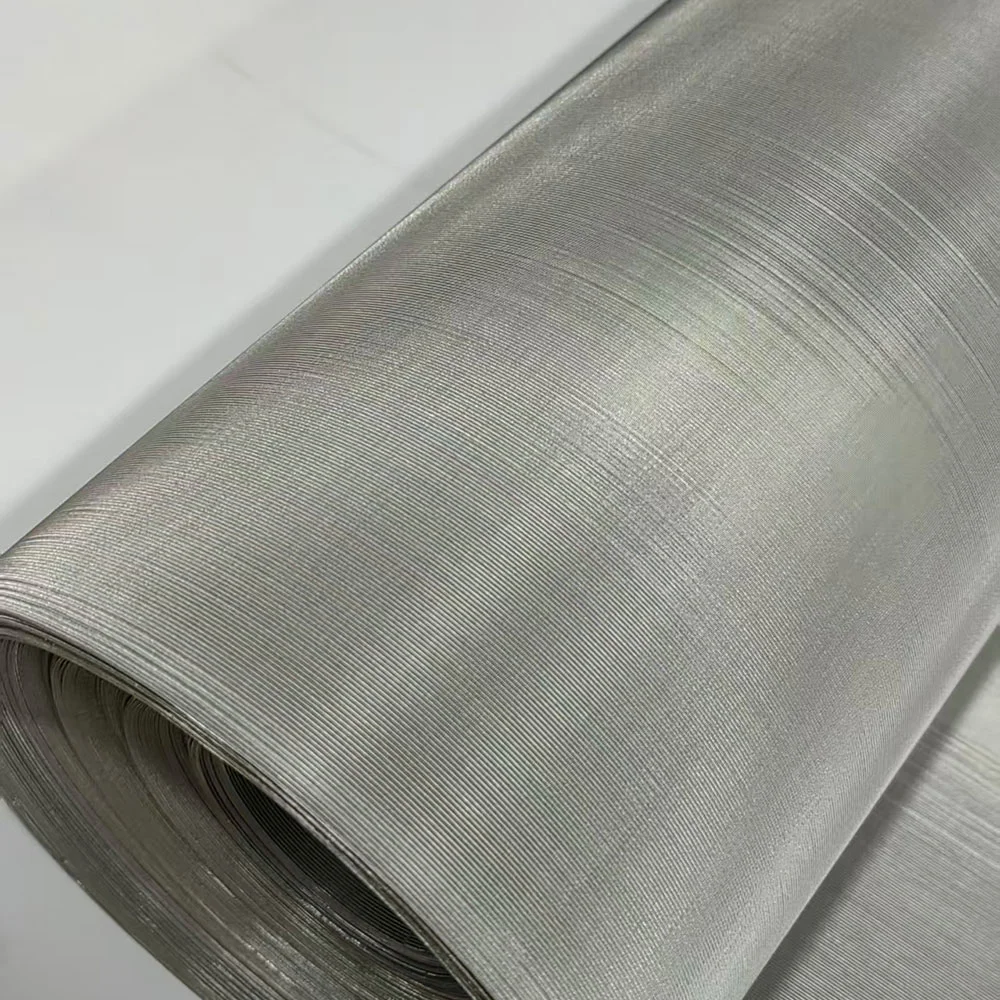

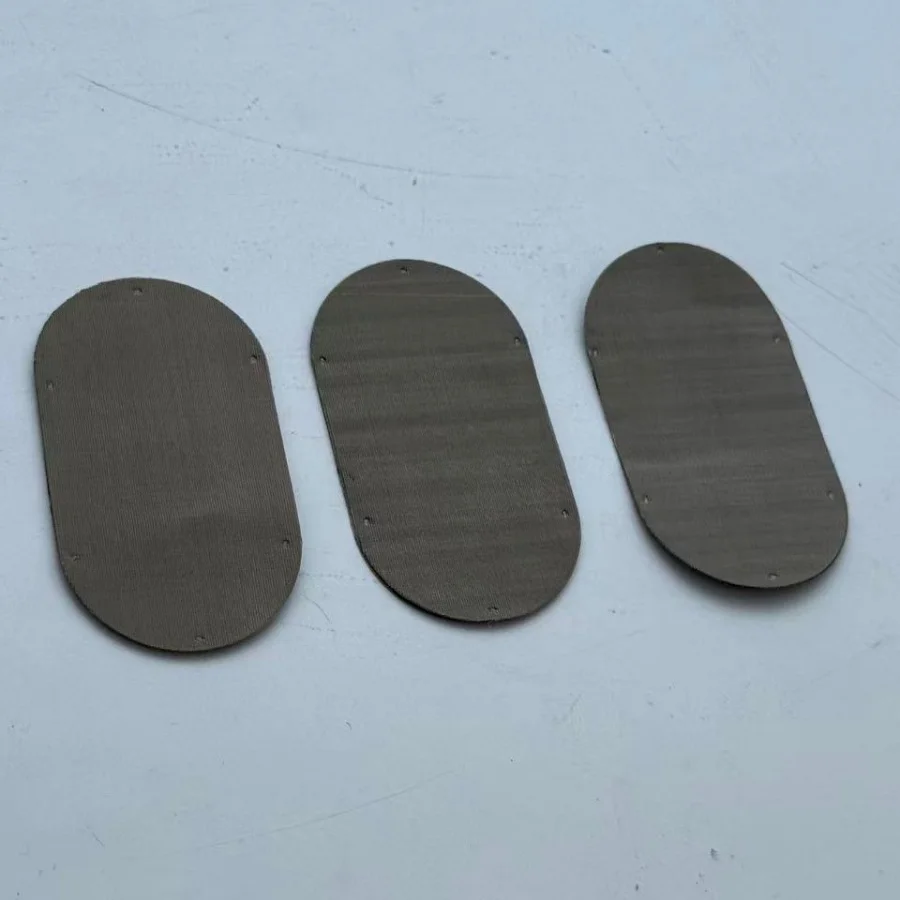

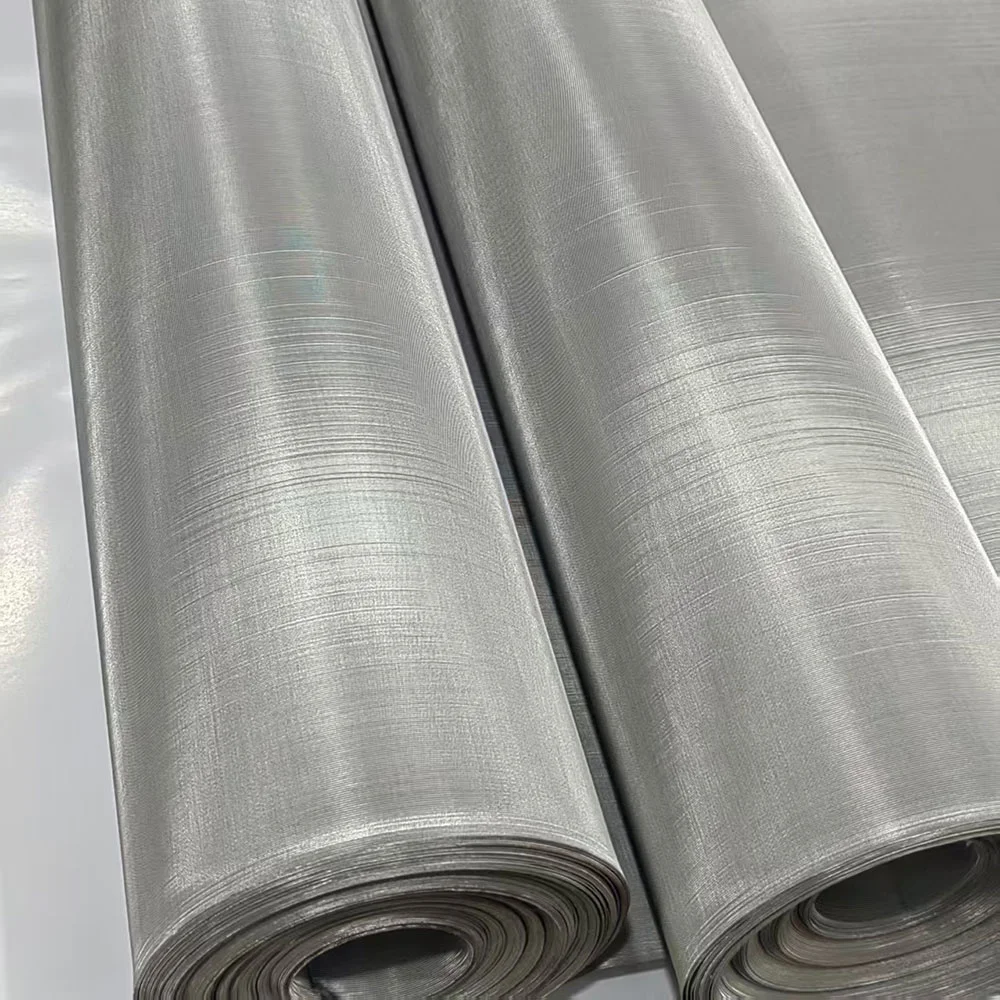

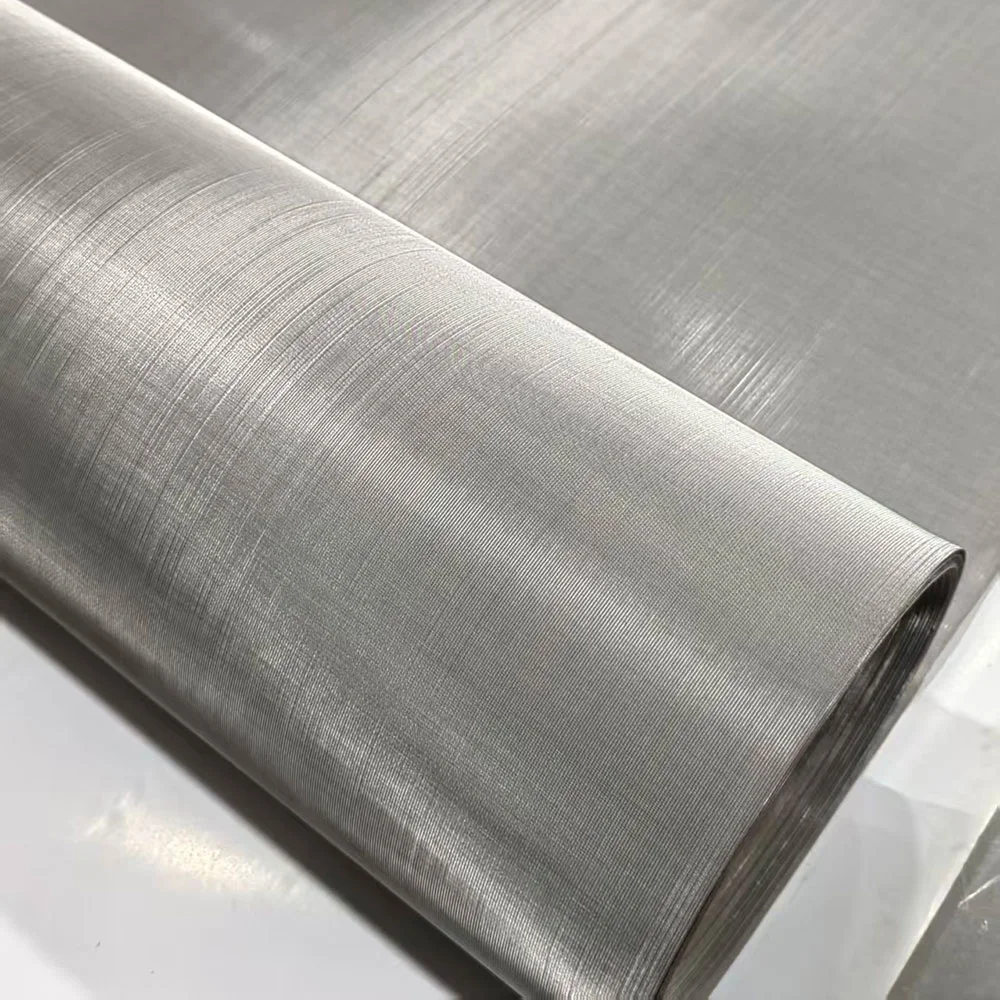

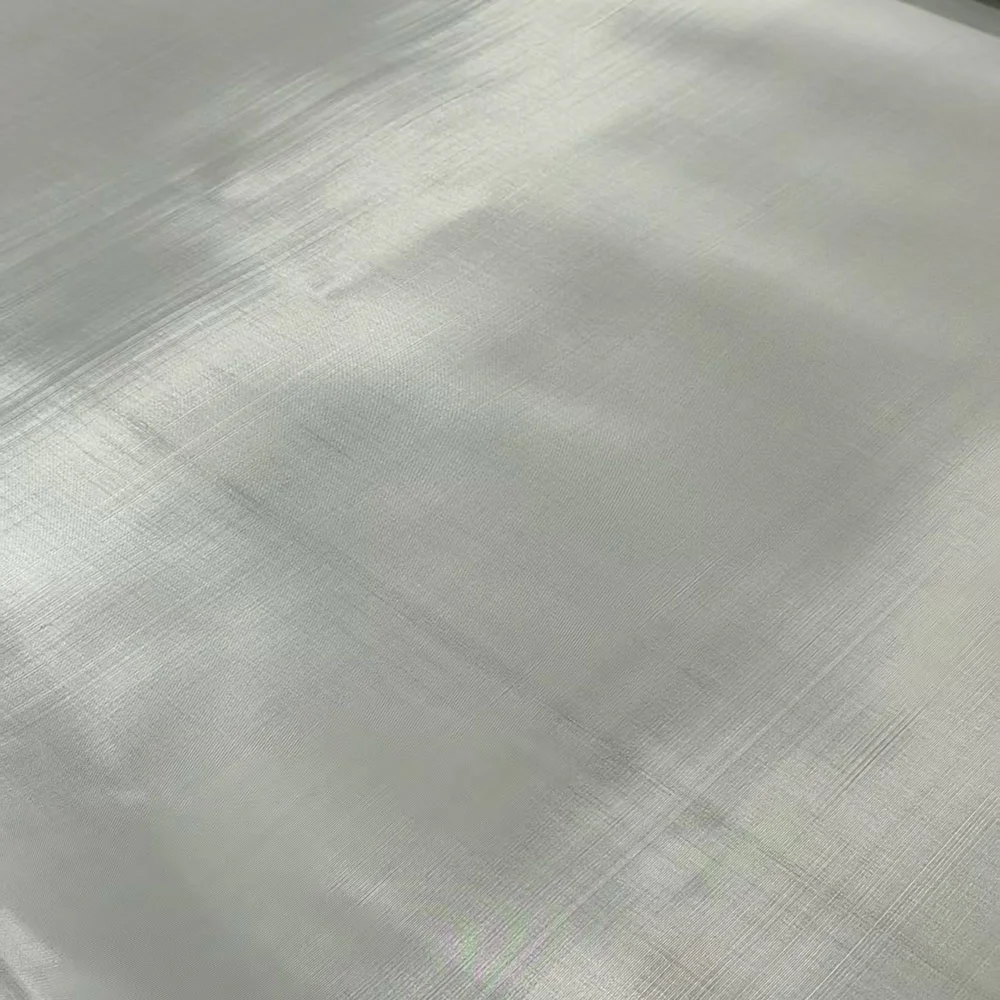

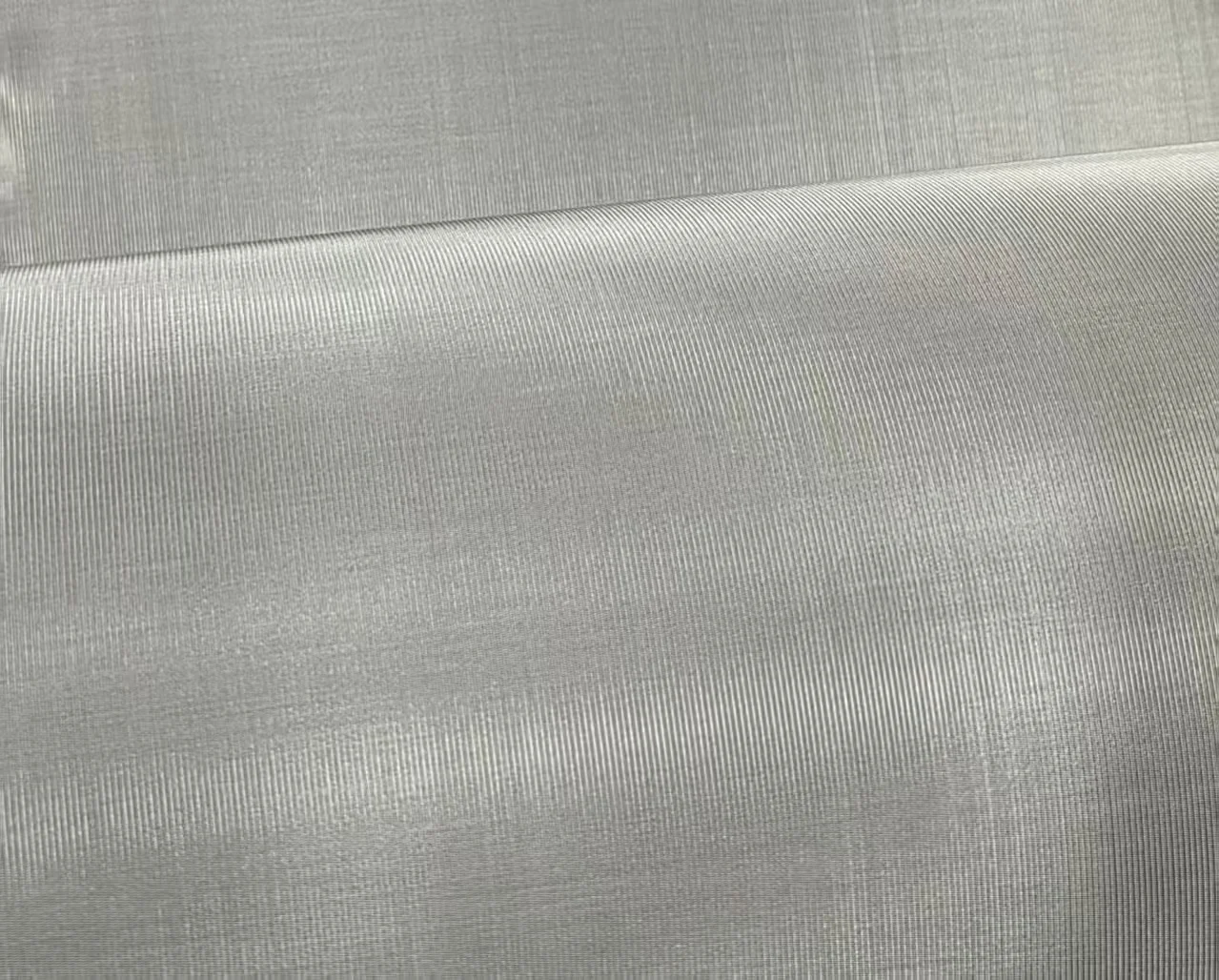

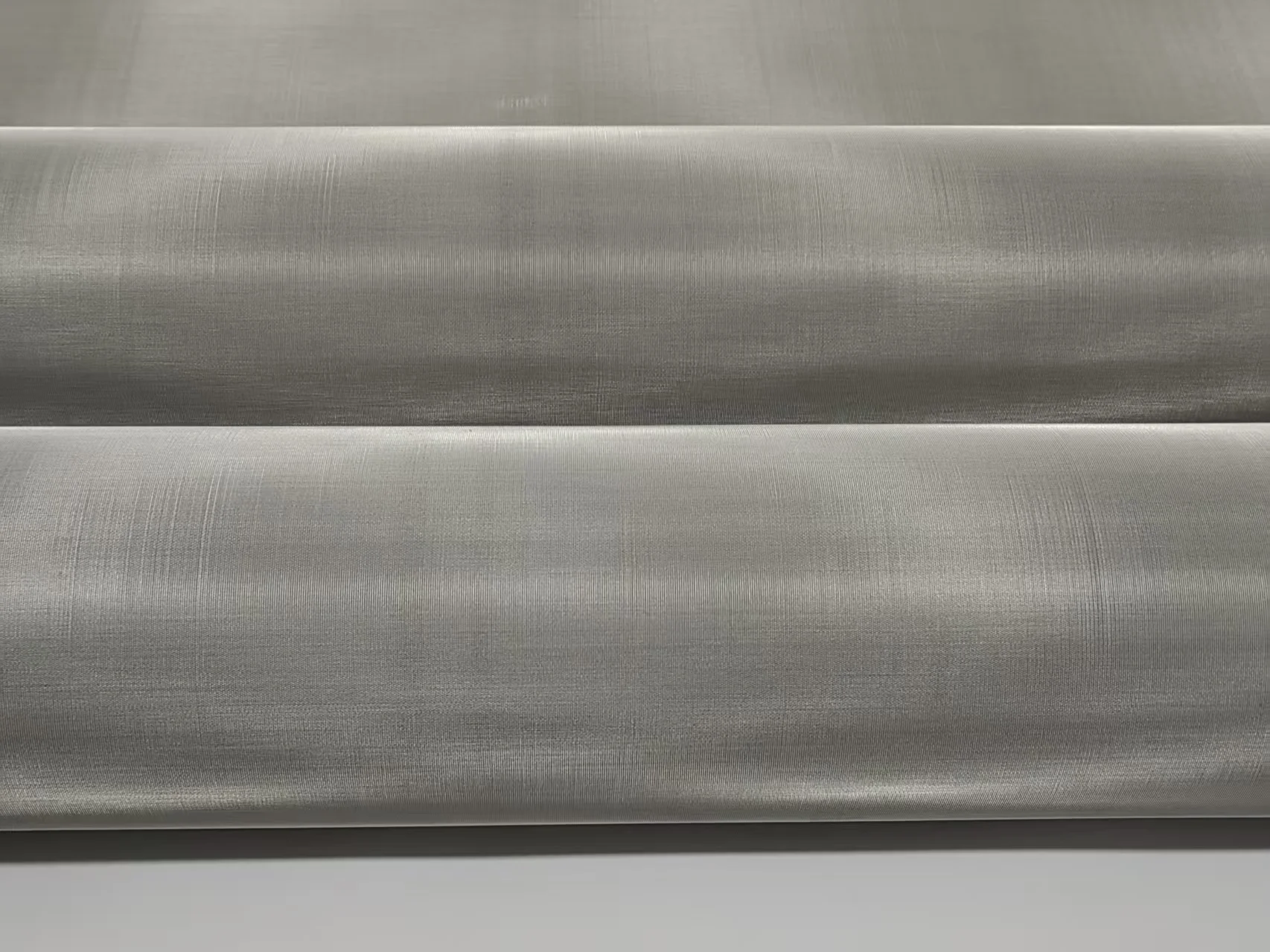

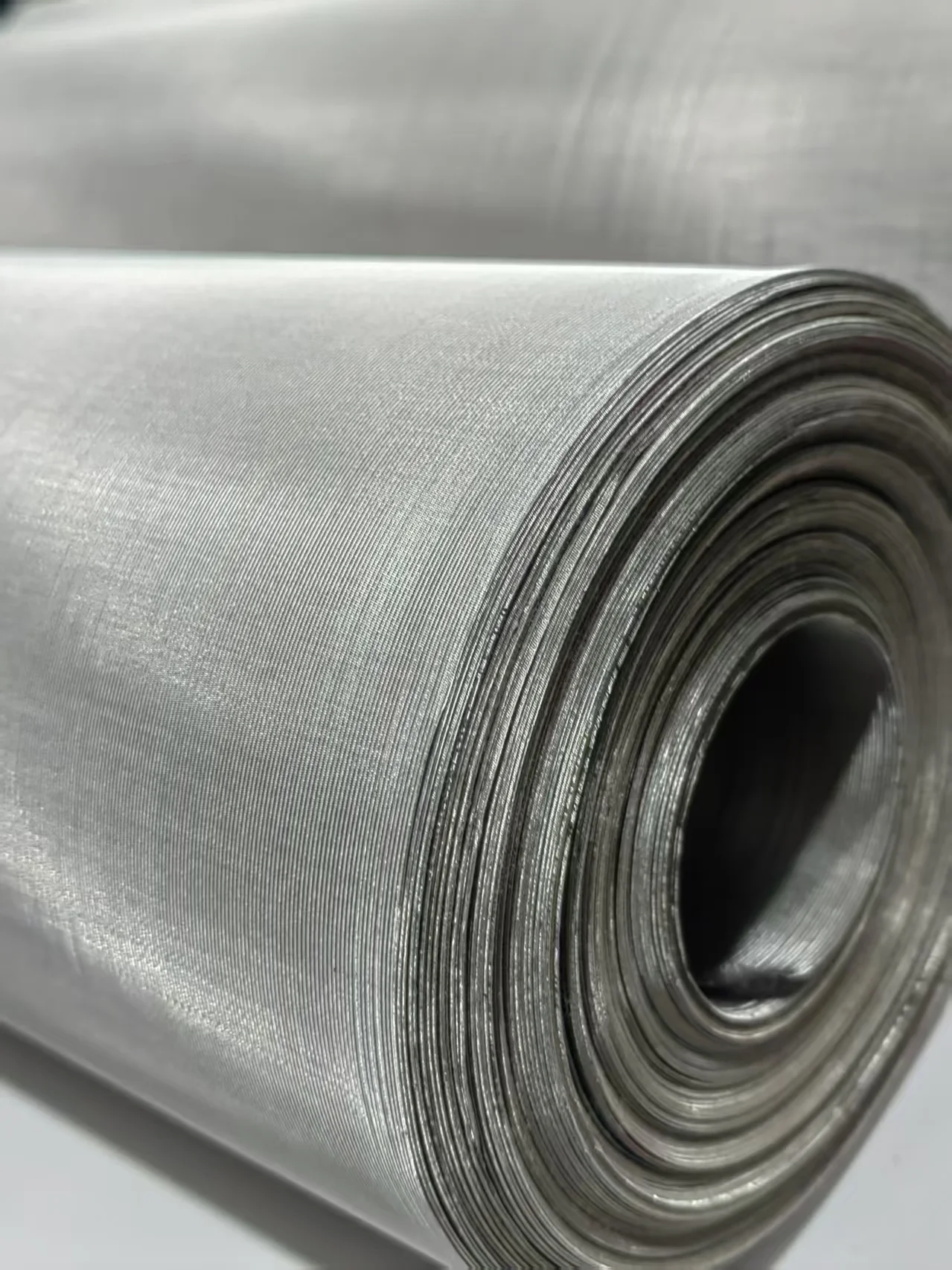

Photos Display Of Stainless Steel Dutch Weave Mesh
Advanced Manufacturing Process
The manufacturing process of stainless steel Dutch weave mesh follows strict procedures to ensure consistent and high-precision quality. The steps include stainless steel wire drawing, precise weaving, heat setting, trimming, cleaning, and final inspection. Each stage is closely monitored to guarantee a stable structure, accurate micron rating, and reliable filtration performance.
Wire Drawing:High-grade stainless steel rods are drawn into uniform wire diameters to ensure consistent mesh strength and weaving accuracy.
Precise Weaving:Advanced looms interlace thick warp wires and fine weft wires to create the dense Dutch weave structure with controlled pore size.
Heat Setting:The woven mesh is heat-treated to stabilize the structure, improve flatness, and prevent distortion during use.
Trimming:Edges are trimmed cleanly for easier installation, rolling, or cutting into filter elements.
Cleaning:Oil,residues, and loose particles are removed to ensure a clean filtration surface.
Final Inspection:Micron rating,mesh count, tensile strength, and flatness are inspected before packaging.
Features&Benefits Of Stainless Steel Dutch Weave Mesh
Stable and Strong Structure:The Dutch weave pattern provides enhanced strength and stability for high-pressure filtration.Precise Micron Filtration Dense weft wires create uniform pore sizes,offering accurate micron-level filtration.
Excellent Corrosion Resistance:Stainless steel material ensures long-term resistance to chemicals, moisture, and oxidation.
High Temperature Performance:Suitable for filtration applications involving elevated temperatures.
Wear-Resistant and Durable Robust construction offers long service life even in demanding industrial environments.
Smooth Surface&Anti-Clogging:Uniform mesh surface reduces blockage and maintains stable flow.
Long Service Life:Engineered for repeated use, easy to clean and maintain.
Applications Of Stainless Steel Dutch Weave Mesh
Used for various filtration and screening processes, including fuel filters, vacuum filters, polymer melt filters, and sewage treatment systems.Applied in industries such as petroleum, chemical processing, aerospace, metallurgy, food production, and pharmaceuticals.Also used as conveyor belts for washing equipment, drying machines, and sludge dewatering presses.
Packaging&Delivery Of Stainless Steel Dutch Weave Mesh

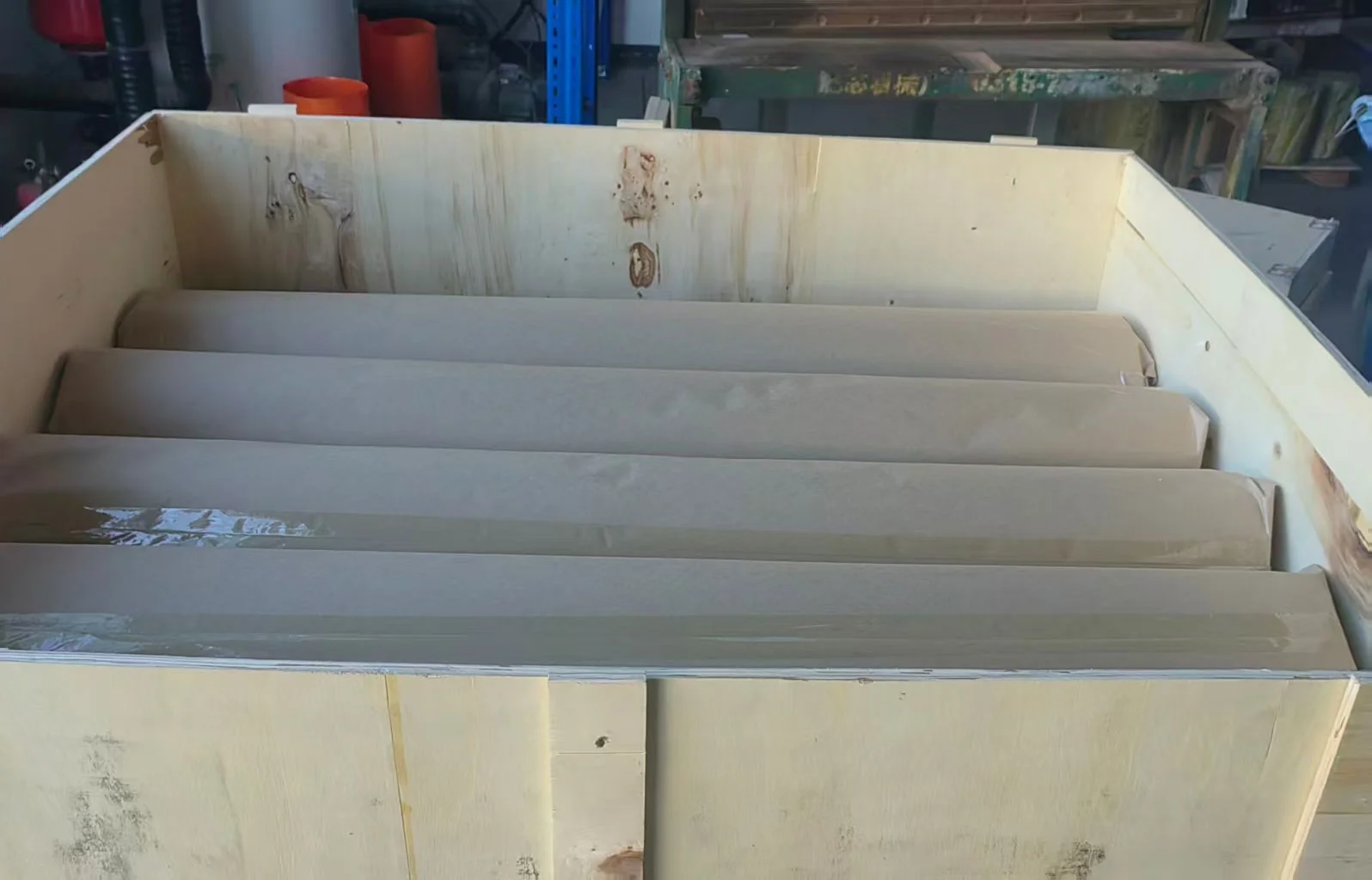

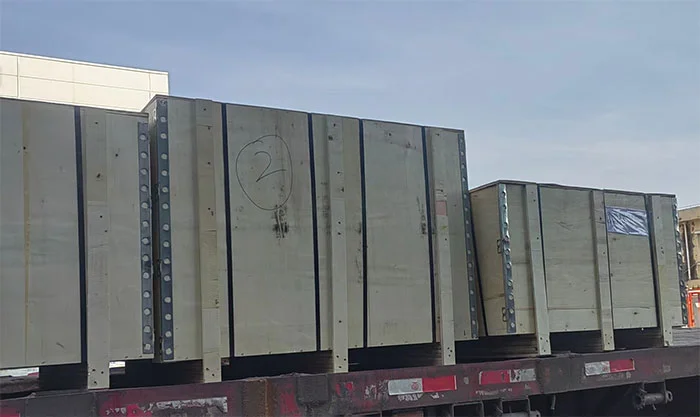

Stainless steel Dutch weave mesh is packaged with export-grade protection to ensure the material arrives in perfect condition. Each roll is first wrapped with moisture-proof plastic film, then secured on a reinforced paper or wooden core to prevent deformation during handling. The rolls are further protected with woven bags or placed inside strong cartons or fumigation-free wooden cases, depending on customer requirements. Customized packaging, labeling, and palletizing services are also available for bulk orders.
FAQ Of Stainless Steel Dutch Weave Mesh
Q1:How Fine Is The Filtration Accuracy?
A:Filtration ratings typically range from 1 to 400 microns depending on the weave specification.
Q2:Why Does Dutch Weave Use Different Wire Diameters?
A:Different wire diameters create a tighter structure, improving filtration accuracy and pressure resistance.

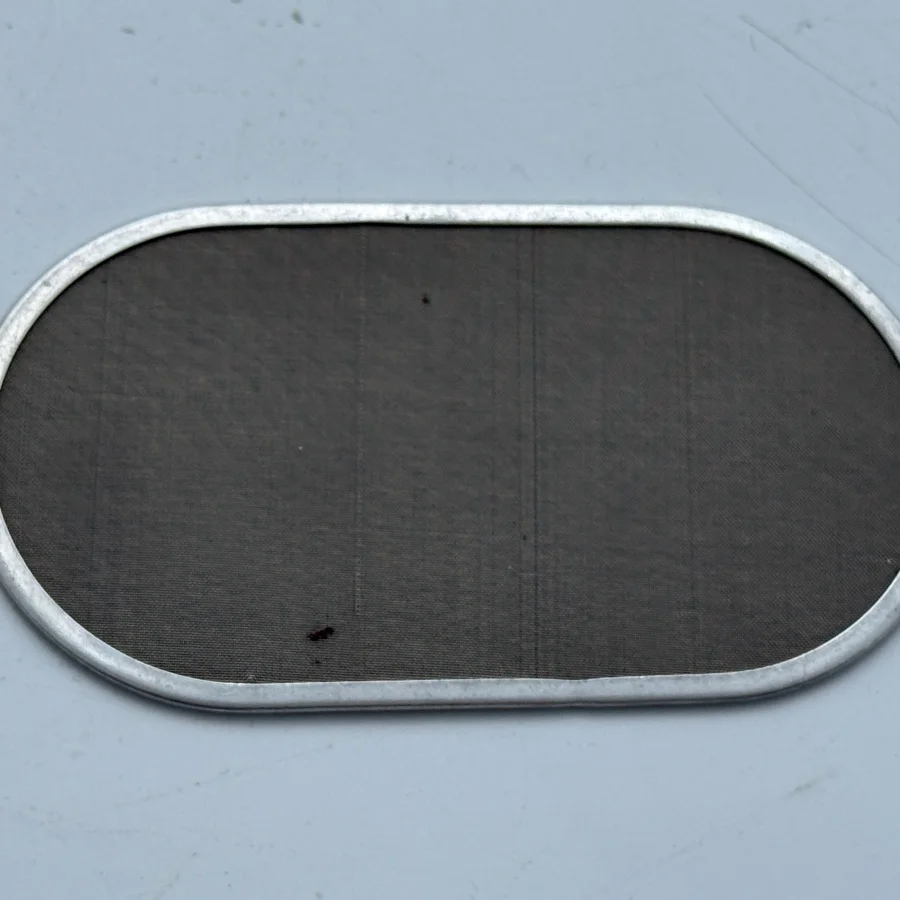

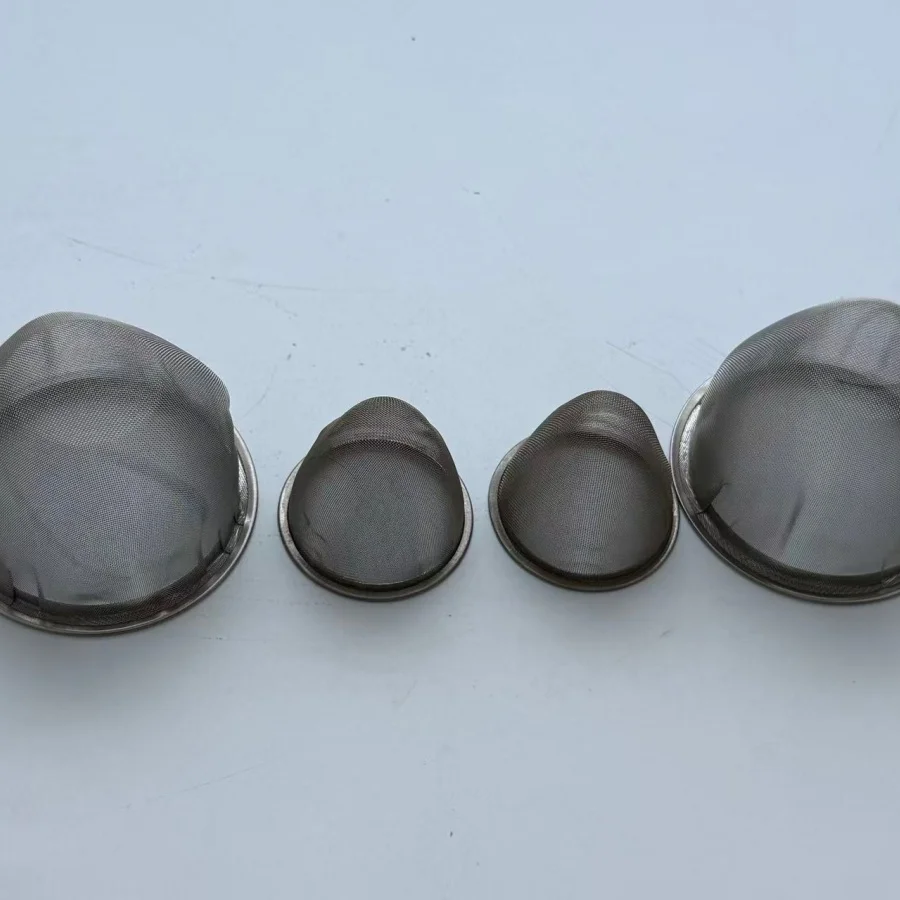

Q3:What Shapes Can Dutch Weave Mesh Be Supplied In?
A:It can be supplied in rolls, sheets, strips, or cut filter discs.
Q4:Does Dutch Weave Mesh Allow Visible Openings?
A:No,the openings are very small and usually not visible to the naked eye.
