Stainless Steel Crimped Wire Mesh

Name: Stainless Steel Crimped Wire Mesh Manufacturer Supplier Factory
Availability: InStock
Rating: 4.5 (89 reviews)

Crafted with wires that are carefully crimped before weaving, this mesh offers a strong, stable, and highly durable structure. The crimping process locks the wires securely in place, preventing movement and ensuring consistent spacing between openings. This makes it particularly suitable for heavy-duty applications such as screening in mining operations, aggregate processing, and construction projects, where both strength and accuracy are critical.Its robust build allows it to perform reliably under high load and abrasive conditions, while its rigid form maintains shape even with prolonged use. Beyond industrial screening, crimped mesh is also employed in fencing, protective barriers, and architectural designs where durability and stability are essential.

Hebei Xiangguang Metal Net Co., Ltd.is dedicated to manufacturing and exporting Stainless Steel Crimped Wire Mesh products. Each mesh is produced using wires that are pre-crimped before weaving, ensuring consistent spacing and enhanced stability, especially in meshes with larger openings. This pre-crimping technique strengthens the overall structure of the mesh. Offered in multiple crimping patterns, our products are designed to deliver both practical functionality and visual appeal. Suitable for a wide range of applications, our stainless steel crimped wire mesh combines dependable performance with an attractive finish.

Send Email Download

Descriptions Of Stainless Steel Crimped Wire Mesh

Material Options:

Made from high-grade stainless steel, typically 304 or 316, which provides superior corrosion resistance, strength, and durability.

Wire Diameter Range:

Variety: Offered from 0.5mm to 12.7mm, providing options that balance mesh strength with flexibility to suit different needs.

Aperture Sizes:

Range: Available in sizes from 1.0mm to 100mm, suitable for a broad range of filtration, separation, and protective applications.

Roll Widths:

Standard Sizes: Common widths include 40″, 48″, and 60″.

Extended Options: Widths up to 4 meters are available for large-scale projects and installations.

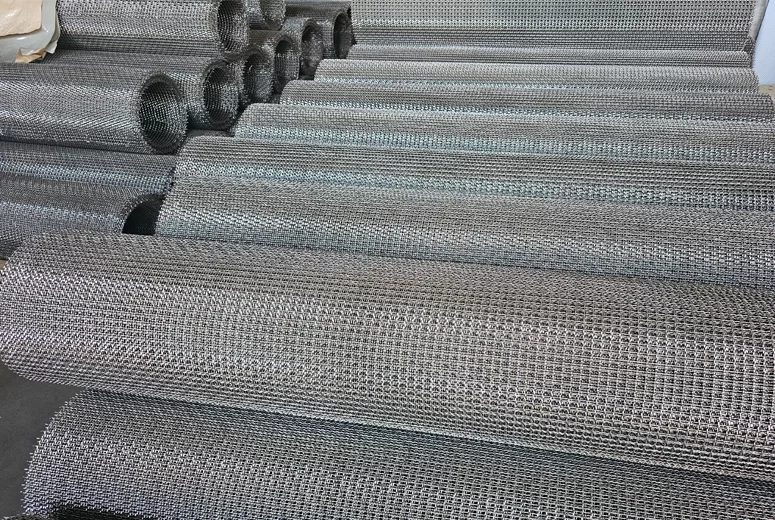

Roll Lengths:

Standard Lengths: Generally supplied in 15m and 30m rolls.

Extended Rolls: Lengths up to 100 feet are also available.

Customization: Special dimensions can be produced to meet specific project needs, offering versatility for unique applications.

Stainless Steel Crimped Wire Mesh Specifications

This diverse range in material, size, and customization makes Stainless Steel Crimped Wire Mesh a versatile solution for numerous industrial, architectural, and specialized applications.

Mesh	Open Area		Wire Diameter		Weaving methods
Mesh	inch	mm	Max（mm）	Min（mm）	Weaving methods
4″	4	101.6	12.7	6	Intercrimp/Lock
3″	3	76.2	12.7	5	Intercrimp/Lock
2″	2	50.8	10	4	Intercrimp/Lock
1 1/2″	2	38.1	10	3	Intercrimp/Lock
1X2″	1X2	25.4X50.8	8	2.5	Intercrimp/Lock
1″	1	25.4	8	2	Plain /Intercrimp
3X4″	0.75	19.05	6	1.8	Plain /Intercrimp
5X8″	0.62	15.8	5	1.5	Plain /Intercrimp
2	0.5	12.7	4	1	Plain /Intercrimp
3	0.33	8.46	3	1	Plain /Intercrimp
4	0.25	6.35	2	0.8	Plain /Intercrimp
5	0.2	5.08	1.6	0.7	Plain /Intercrimp
6	0.17	4.23	1.5	0.6	Plain /Intercrimp
8	0.12	3.17	1.2	0.7	Plain /Intercrimp
10	0.1	2.54	1	0.6	Plain
12	0.08	2.11	0.9	0.5	Plain
14	0.07	1.81	0.7	0.5	Plain

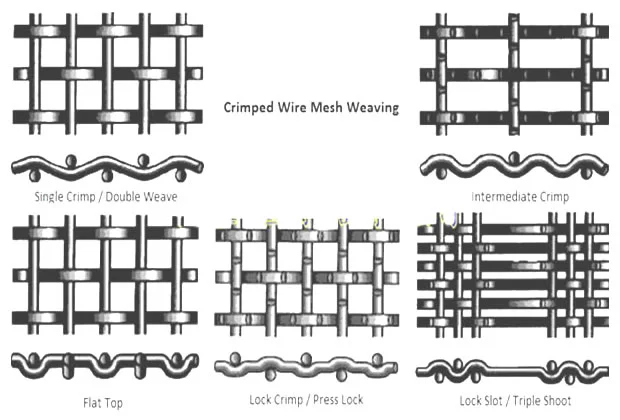

Weaving Types Of Crimped Wire Mesh

The design and performance of crimped wire mesh are determined by its weaving style and crimp pattern. Common types include:

Single Crimp:Each wire is crimped a single time where it crosses another, creating a simple, flexible mesh structure.

Double Crimp:Both warp and weft wires are crimped at every crossing point, giving the mesh greater stability and rigidity.

Intermediate Crimp (Inter-Crimp):Extra crimps are added between the intersections to increase strength and allow for larger mesh openings.

Lock Crimp:The wires are firmly crimped and locked in place at the intersections, preventing movement and providing high rigidity with excellent load-bearing capacity.

Flat Top Crimp:One surface of the mesh is flat, offering a smooth finish and extended wear life, making it ideal for food processing or vibrating screen uses.

Core Strengths Of The Stainless Steel Crimped Wire Mesh

Durable & Corrosion-Resistant: With its stainless steel construction, it excels in harsh environments, resisting rust, corrosion, and wear.

High Strength & Stability: The crimped design enhances the tensile strength, making it ideal for heavy-duty use.

Versatile & Customizable: Available in various wire diameters, mesh sizes, and crimp styles, it’s adaptable to many industries.

Excellent Airflow & Filtration: Perfect for applications that require precise filtration or airflow, like mining, agriculture, and industrial screens.

From Construction To Agriculture: Versatile Uses

Industrial: Used in filters, sieves, and separators.

Construction: Reinforcement for cement, stone, and other materials.

Mining: Sifting and sorting materials.

Agriculture: Enclosures for poultry, livestock, and garden fencing.
