Forms and Structures of Sintered Metal Filter Elements
Sintered metal filter panels can be further fabricated into a wide range of filter elements to meet different application requirements. Through precision moulding combined with high-temperature sintering, these panels are formed into various structures such as filter discs, filter cartridges, laminates, tubes, baskets, cone filters, cup filters, cap filters, and filter plates, ensuring stable performance and dimensional accuracy.

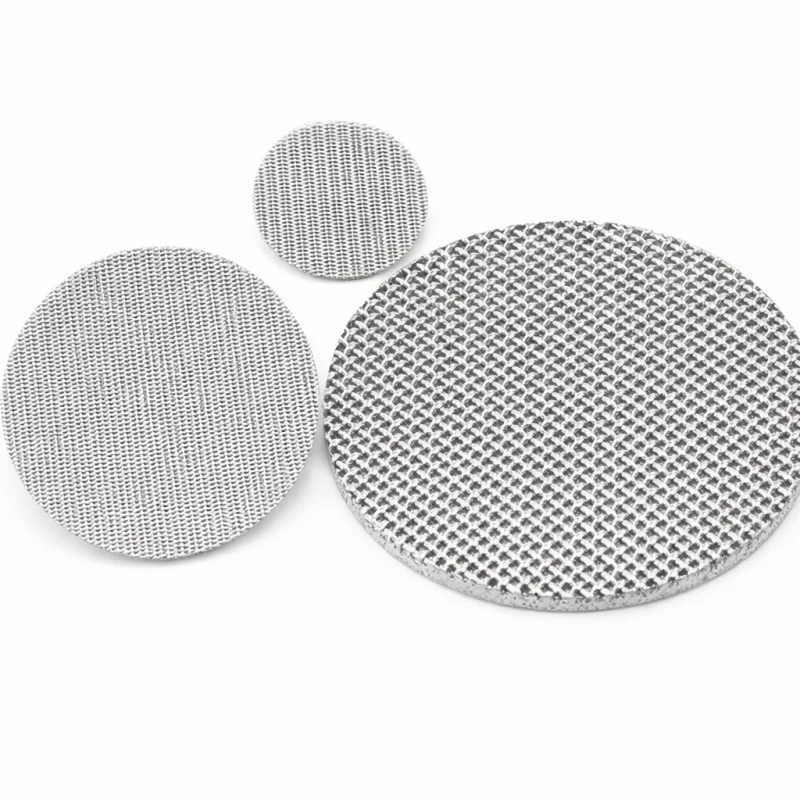

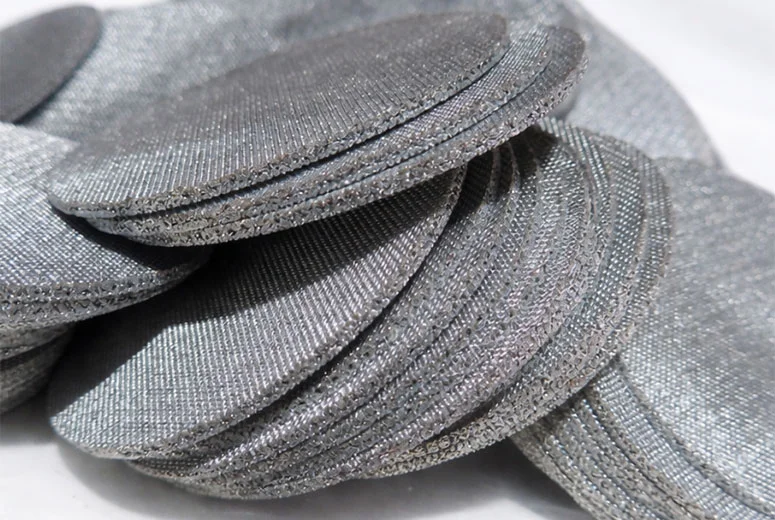

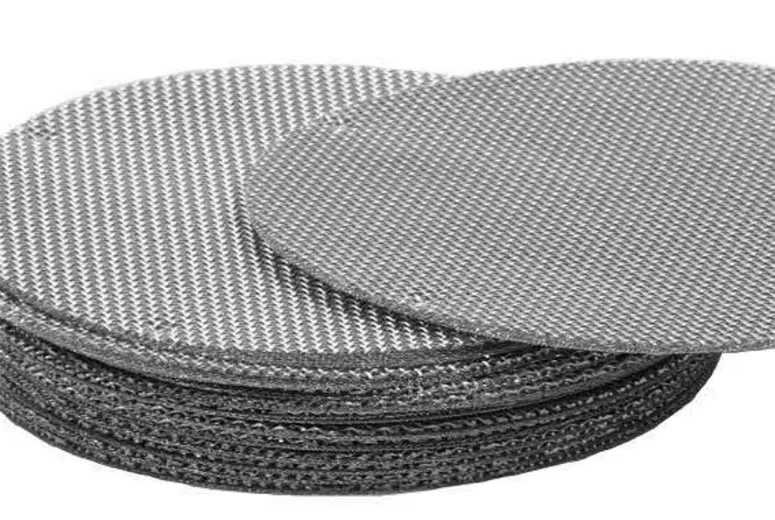

Sintered filter discs are available in multiple configurations, including round, oval, annular, split, and integral designs. They are capable of operating in extreme temperature environments ranging from -200°C to 600°C, making them suitable for drying and filtration processes. The filtration accuracy typically covers a range of 2 to 300 microns.
Specifications of Sintered Mesh Filter
Material Options
Available materials include Stainless Steel 304/316L/904L, Duplex 2205, Inconel, Hastelloy, and other nickel-based alloys for demanding environments.
Weave Types
Common weave types include Plain, Twill, Dutch, Plain Dutch, and Twill Dutch, which can be combined in multilayer sintered structures for different filtration requirements.
Filtration Rating
The filtration rating typically ranges from 1 micron to 200 microns, depending on mesh structure and layer combination. Customized filtration accuracy is available upon request.

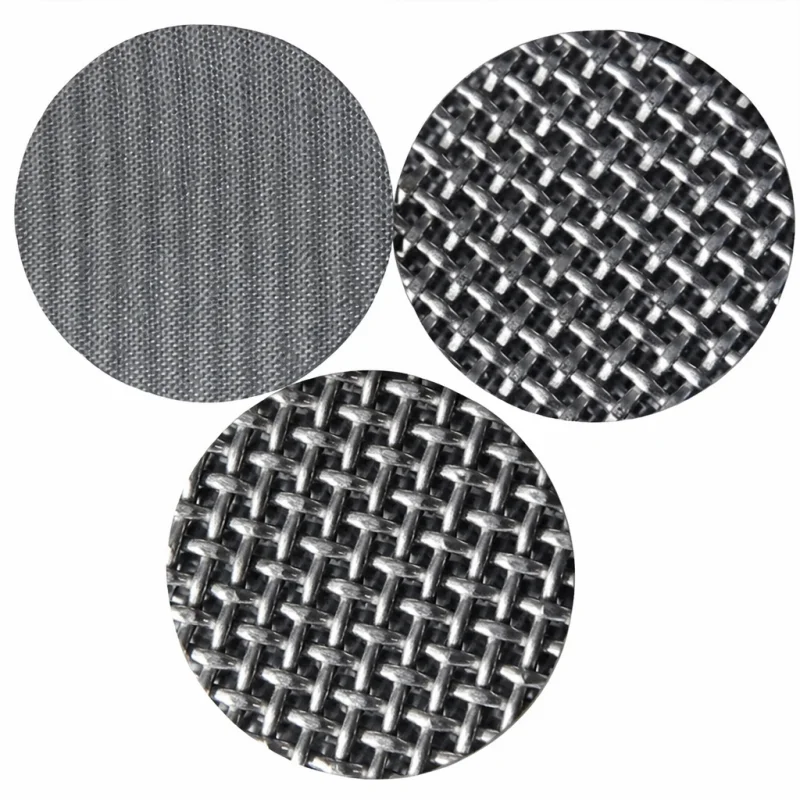

Mesh Structure
The filter is composed of multiple layers of woven wire mesh, usually 2 to 5 layers or more, including filtration layers, transition layers, and support layers to ensure stable pore size and high mechanical strength.
Thickness
Standard thickness ranges from 0.5 mm to 5 mm, depending on the number of mesh layers and application requirements.
Porosity
Porosity typically ranges from 30% to 60%, providing a balance between filtration efficiency and flow rate.
Temperature Resistance
Maximum operating temperature can reach up to 500–800 C, depending on material selection and operating conditions.
Pressure Resistance
The sintered structure offers excellent pressure resistance and dimensional stability, suitable for high-pressure filtration systems.
Cleaning Methods
The filter can be cleaned and reused through backwashing, ultrasonic cleaning, chemical cleaning, or thermal treatment.
Supply Forms
Available in sheets, discs, cylinders, tubes, cones, and customized shapes according to customer requirements.
Key Features of Sintered Mesh Filter
High Filtration Accuracy
Micro-level pore size with stable and uniform openings.
Excellent Mechanical Strength
Strong load-bearing capacity, suitable for high-pressure applications.
High Temperature Resistance
Maintains performance under elevated temperatures.
Corrosion Resistance
Available in stainless steel and high-alloy materials.
Reusable & Cleanable
Can be cleaned by backwashing or ultrasonic methods.
Applications of Sintered Mesh Filter
Petrochemical Industry
Sintered mesh filters are used for catalyst recovery, process fluid filtration, and gas-solid separation under high temperature and high pressure conditions.
Pharmaceutical Industry
Applied in sterile filtration and purification processes, the sintered structure ensures consistent pore size and reliable particle retention.
Food & Beverage Industry
Used for filtration of beverages, oils, and syrups, offering high cleanliness and resistance to repeated cleaning and sterilization.
Hydraulic & Lubrication Systems
Sintered mesh filters protect pumps and valves by removing fine contaminants from hydraulic oil and lubricants.
Power Generation & Energy
Applied in gas filtration and cooling systems, ensuring stable operation in high-temperature energy environments.
Battery & New Energy
Used for filtration of powders, slurries, and electrolytes in lithium-ion battery and hydrogen energy production processes.
Environmental Protection
Used in air and water filtration systems for removing fine particles and protecting downstream equipment.
