Nickel Wire Mesh

Name: Pure Nickel Plated 200 Woven Wire Cloth Mesh Supplier In China
Availability: InStock
Rating: 4.5 (89 reviews)

Nickel wire mesh is a type of woven or perforated material made from pure nickel or nickel alloys. It is commonly used for its excellent properties such as high corrosion resistance, excellent thermal conductivity, good electrical conductivity, and resistance to oxidation. It is also known for its durability and strength, making it suitable for demanding environments.

Nickel mesh is typically manufactured by weaving thin nickel wires into a mesh structure, although it can also be produced by perforating a sheet of nickel. The mesh size can vary, depending on the intended use, and it can be customized in terms of wire diameter, porosity, and other specific features.

Nickel mesh offers unique properties that make it indispensable in many industries. Its ability to withstand extreme conditions like high temperatures, corrosive environments, and mechanical stress ensures that it remains a preferred material for various applications, from energy production and filtration to aerospace and marine industries.

Send Email Download

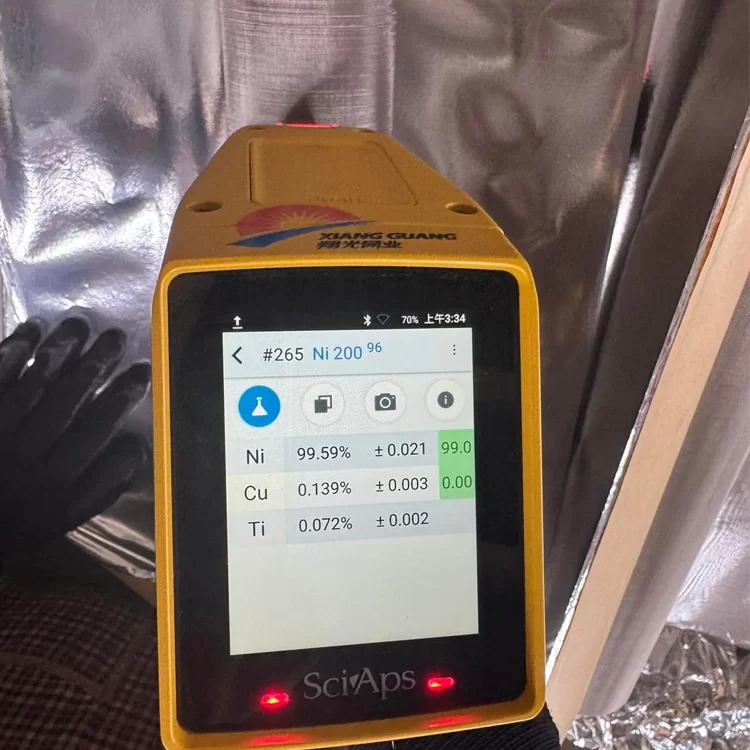

Chemical Composition

Nickel mesh primarily consists of nickel (Ni), usually with ‌over 98% purity‌. High-purity nickel (e.g., ≥99.5%) delivers excellent ‌corrosion resistance‌, ‌electrical conductivity‌, and ‌ductility‌. Some variants may contain trace amounts of iron (Fe), chromium (Cr), or molybdenum (Mo) to enhance specific properties (e.g., hardness or high-temperature resistance), with total impurities typically kept below 2%.

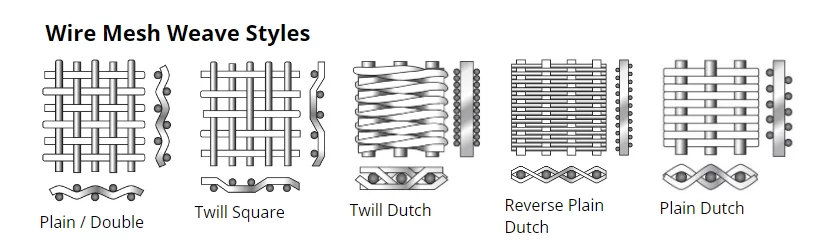

Weaving Methods

The manufacturing processes include ‌plain weave‌, ‌twill weave‌, and ‌Dutch twilled weave‌, with customizable aperture sizes (range: ‌10 to 500 mesh‌).

Key Properties of Nickel Mesh

Corrosion Resistance: Nickel mesh is resistant to corrosion, particularly in acidic and alkaline environments, making it ideal for use in chemical processing and marine applications.

High Temperature Resistance: Nickel can withstand high temperatures, making the mesh suitable for applications in furnaces, heat exchangers, and other high-heat environments.

Electroconductivity: Nickel is an excellent conductor of electricity, so nickel mesh is used in electronic components and electrical applications.

Durability: Nickel mesh is strong, wear-resistant, and can handle mechanical stress well, even in challenging conditions.

Specification

Mesh	Wire Diameter		Opening Size		Open area
Mesh	Inch	Millimeter	Inch	Millimeter
2	0.0470 Inch	1.194 mm	0.453 Inch	11.506 mm	82.10%
3	0.0800 Inch	2.032 mm	0.253 Inch	6.435 mm	57.80%
4	0.0630 Inch	1.600 mm	0.187 Inch	4.749 mm	56.00%
10	0.0200 Inch	0.508 mm	0.080 Inch	2.032 mm	64.00%
12	0.0280 Inch	0.711 mm	0.055 Inch	1.397 mm	44.00%
16	0.0090 Inch	0.228 mm	0.054 Inch	1.359 mm	73.30%
20	0.0090 Inch	0.228 mm	0.041 Inch	1.041 mm	67.20%
26	0.0075 Inch	0.191 mm	0.031 Inch	0.787 mm	64.80%
28	0.0100 Inch	0.254 mm	0.026 Inch	0.653 mm	51.80%
30	0.0065 Inch	0.165 mm	0.027 Inch	0.681 mm	64.80%
34	0.0065 Inch	0.165 mm	0.023 Inch	0.582 mm	60.70%
36	0.0065 Inch	0.165 mm	0.021 Inch	0.540 mm	58.70%
44	0.0055 Inch	0.140 mm	0.017 Inch	0.437 mm	57.50%
46	0.0055 Inch	0.140 mm	0.016 Inch	0.411 mm	55.80%
50	0.0040 Inch	0.102 mm	0.016 Inch	0.406 mm	64.00%
52	0.0055 Inch	0.140 mm	0.014 Inch	0.348 mm	51.00%
64	0.0045 Inch	0.114 mm	0.011 Inch	0.281 mm	50.70%
66	0.0040 Inch	0.102 mm	0.011 Inch	0.284 mm	54.20%
72	0.0040 Inch	0.102 mm	0.010 Inch	0.251 mm	50.70%
70	0.0040 Inch	0.102 mm	0.010 Inch	0.262 mm	51.80%
88	0.0035 Inch	0.089 mm	0.008 Inch	0.201 mm	47.90%
90	0.0040 Inch	0.102 mm	0.007 Inch	0.180 mm	41.00%
100	0.0040 Inch	0.102 mm	0.006 Inch	0.152 mm	36.00%
110	0.0040 Inch	0.102 mm	0.005 Inch	0.129 mm	31.40%
120	0.0026 Inch	0.066 mm	0.006 Inch	0.145 mm	47.30%
120	0.0037 Inch	0.094 mm	0.005 Inch	0.117 mm	30.90%
130	0.0017 Inch	0.043 mm	0.006 Inch	0.152 mm	60.70%
145	0.0022 Inch	0.056 mm	0.005 Inch	0.119 mm	46.40%
135	0.0023 Inch	0.058 mm	0.005 Inch	0.129 mm	47.40%
150	0.0026 Inch	0.066 mm	0.004 Inch	0.104 mm	37.20%
150	0.0030 Inch	0.076 mm	0.004 Inch	0.094 mm	30.40%
160	0.0025 Inch	0.063 mm	0.004 Inch	0.095 mm	36.40%
165	0.0019 Inch	0.048 mm	0.004 Inch	0.107 mm	47.10%
180	0.0012 Inch	0.030 mm	0.004 Inch	0.112 mm	61.50%
170	0.0026 Inch	0.066 mm	0.003 Inch	0.084 mm	31.20%
200	0.0016 Inch	0.041 mm	0.003 Inch	0.086 mm	46.20%

We Can Weave Nickel Mesh To Your Specs

Supports customized production of metal wire mesh according to drawings/specifications (Wire diameter: 0.05–2mm | Width: 20–1200mm). Material options include Nickel wire mesh 99.5%, meeting high-temperature and corrosion resistance requirements.

We Can Cut To Your Specs

High-precision processing of complex 2D shapes with tolerance ±0.1mm4. Suitable for precision components in aerospace, medical equipment, etc

Applications Of Nickel Mesh

Filtration and Separation

Battery and Fuel Cell Technology

Catalysis and Chemical Reactions

Marine and Aerospace Applications

Heat Exchangers and Radiators

Electromagnetic Shielding

Medical and Filtration Devices

Construction and Reinforcement

Environmental Applications

Packaging

1. Waterproof paper + woven bag.

2. Waterproof paper + carton box.

3. As customers' requirements.

How To Order

We manufacture nickle mesh at wide range according to each customer’s specified requirements, such as wire diameter, aperture size, width, etc. Please feel free to contact with us for more information.
