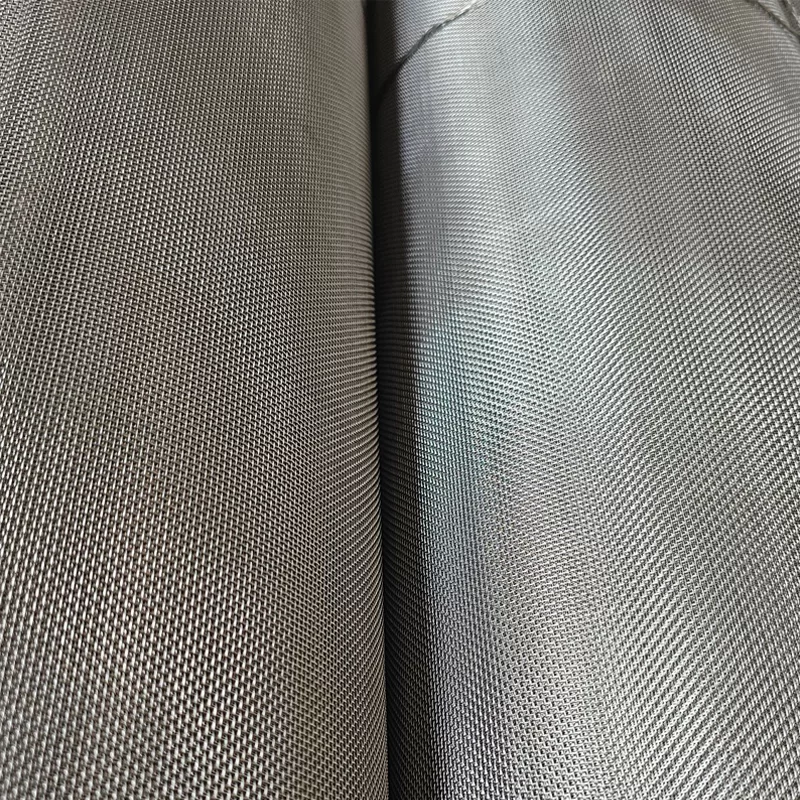

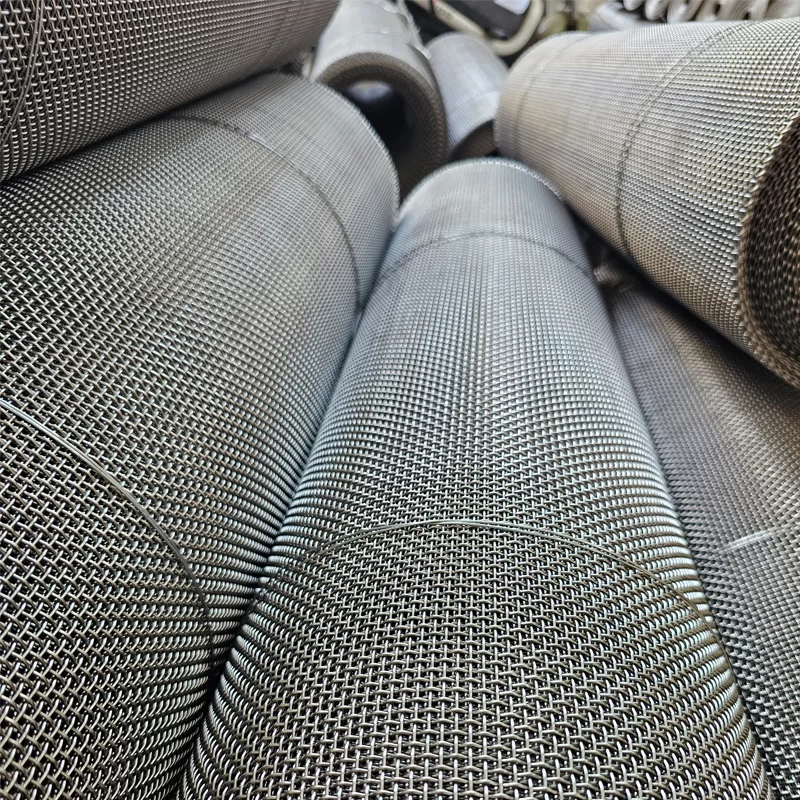

Monel Wire Mesh

Name: Monel Screen 400 Wire Mesh Manufacturer Factory Supplier In China
Availability: InStock
Rating: 4.5 (89 reviews)

Monel wire mesh is a woven or welded mesh made from Monel alloy, which is primarily composed of nickel (around 63%-67%) and copper (around 28%-34%), with small amounts of iron, manganese, carbon, and silicon. This alloy is known for its exceptional resistance to corrosion, especially in marine and chemical environments.

Monel wire mesh is manufactured using nickel-based alloy grades such as Monel 400 and K500. Monel 400 is a single-phase austenitic solid solution alloy, containing not less than 63% nickel and 28% to 34% copper. The K500 type incorporates aluminum additions to enhance its strength, achieving a tensile strength of 900-1200 MPa. With wire diameters ranging from 0.05 mm to 2.5 mm, the mesh is suitable for fine weaving requirements from 40 mesh (wire diameter 0.21 mm) up to 200 mesh (wire diameter 0.05 mm).

Send Email Download

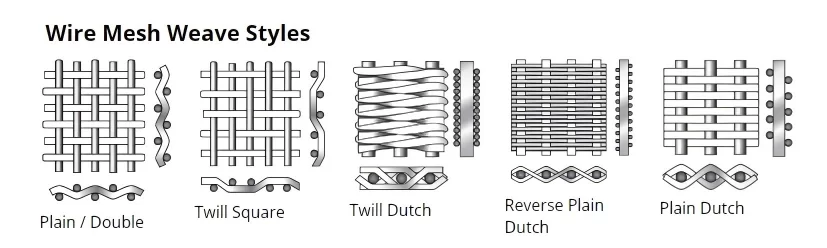

Weaving Methods‌

The manufacturing processes include ‌plain weaves‌, ‌twills‌, and ‌dutch weaves‌, with customizable aperture sizes (range: ‌20 to 200 mesh‌).

Key Properties of Monel Wire Mesh

Corrosion Resistance: Highly resistant to seawater, acids, and alkalis.

Strength & Durability: Stronger than pure nickel and resists stress corrosion cracking.

Temperature Resistance: Performs well in both high and low temperatures.

Non-magnetic: In certain conditions, especially in annealed form.

Specification

Mesh	Wire Diameter		Opening Size		Open area
Mesh	Inch	Millimeter	Inch	Millimeter
2	0.0470 Inch	1.194 mm	0.453 Inch	11.506 mm	82.10%
3	0.0800 Inch	2.032 mm	0.253 Inch	6.435 mm	57.80%
4	0.0630 Inch	1.600 mm	0.187 Inch	4.749 mm	56.00%
10	0.0200 Inch	0.508 mm	0.080 Inch	2.032 mm	64.00%
12	0.0280 Inch	0.711 mm	0.055 Inch	1.397 mm	44.00%
16	0.0090 Inch	0.228 mm	0.054 Inch	1.359 mm	73.30%
20	0.0090 Inch	0.228 mm	0.041 Inch	1.041 mm	67.20%
26	0.0075 Inch	0.191 mm	0.031 Inch	0.787 mm	64.80%
28	0.0100 Inch	0.254 mm	0.026 Inch	0.653 mm	51.80%
30	0.0065 Inch	0.165 mm	0.027 Inch	0.681 mm	64.80%
34	0.0065 Inch	0.165 mm	0.023 Inch	0.582 mm	60.70%
36	0.0065 Inch	0.165 mm	0.021 Inch	0.540 mm	58.70%
44	0.0055 Inch	0.140 mm	0.017 Inch	0.437 mm	57.50%
46	0.0055 Inch	0.140 mm	0.016 Inch	0.411 mm	55.80%
50	0.0040 Inch	0.102 mm	0.016 Inch	0.406 mm	64.00%
52	0.0055 Inch	0.140 mm	0.014 Inch	0.348 mm	51.00%
64	0.0045 Inch	0.114 mm	0.011 Inch	0.281 mm	50.70%
66	0.0040 Inch	0.102 mm	0.011 Inch	0.284 mm	54.20%
72	0.0040 Inch	0.102 mm	0.010 Inch	0.251 mm	50.70%
70	0.0040 Inch	0.102 mm	0.010 Inch	0.262 mm	51.80%
88	0.0035 Inch	0.089 mm	0.008 Inch	0.201 mm	47.90%
90	0.0040 Inch	0.102 mm	0.007 Inch	0.180 mm	41.00%
100	0.0040 Inch	0.102 mm	0.006 Inch	0.152 mm	36.00%
110	0.0040 Inch	0.102 mm	0.005 Inch	0.129 mm	31.40%
120	0.0026 Inch	0.066 mm	0.006 Inch	0.145 mm	47.30%
120	0.0037 Inch	0.094 mm	0.005 Inch	0.117 mm	30.90%
130	0.0017 Inch	0.043 mm	0.006 Inch	0.152 mm	60.70%
145	0.0022 Inch	0.056 mm	0.005 Inch	0.119 mm	46.40%
135	0.0023 Inch	0.058 mm	0.005 Inch	0.129 mm	47.40%
150	0.0026 Inch	0.066 mm	0.004 Inch	0.104 mm	37.20%
150	0.0030 Inch	0.076 mm	0.004 Inch	0.094 mm	30.40%
160	0.0025 Inch	0.063 mm	0.004 Inch	0.095 mm	36.40%
165	0.0019 Inch	0.048 mm	0.004 Inch	0.107 mm	47.10%
180	0.0012 Inch	0.030 mm	0.004 Inch	0.112 mm	61.50%
170	0.0026 Inch	0.066 mm	0.003 Inch	0.084 mm	31.20%
200	0.0016 Inch	0.041 mm	0.003 Inch	0.086 mm	46.20%
