Specifications of Galvanized Woven Wire Mesh
Material: Low carbon steel wire.
Woven Style: Plain and twill weave.
Diameter: 1.6-0.12mm.
Roll / Sheet Size: Customizable; common widths 1–2m, lengths 10–30m per roll.
Zinc Coating Thickness:
Electro-galvanized: 15–30 g/m²,
hot-dip galvanized: 50–300 g/m².

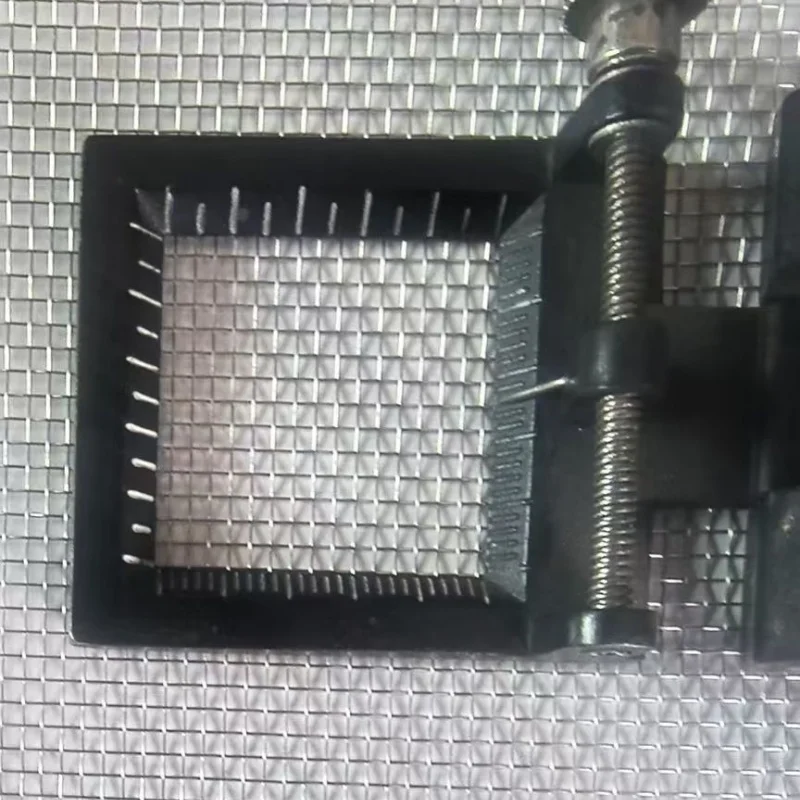

Mesh Count: 3-60.
Packaging Instructions: The product is first wrapped in kraft paper as an inner layer, then covered with a waterproof plastic sheet as an outer layer, and finally placed in a wooden pallet or wooden box for secure packaging, depending on the transportation method. This effectively prevents moisture and damage, ensuring the product remains safe and intact during transportation and handling.
| Mesh count | Wire Dia. (mm) | Opening (mm) |
| 3 | 1.6 | 6.87 |
| 4 | 1.2 | 5.15 |
| 5 | 0.95 | 4.13 |
| 6 | 0.8 | 3.43 |
| 8 | 0.7 | 2.43 |
| 10 | 0.6 | 1.94 |
| 12 | 0.55 | 1.56 |
| 14 | 0.14 | 1.4 |
| 16 | 0.38 | 1.24 |
| 18 | 0.3 | 1.11 |
| 20 | 0.27 | 1 |
| 22 | 0.25 | 0.9 |
| 24 | 0.23 | 0.83 |
| 26 | 0.2 | 0.78 |
| 28 | 0.18 | 0.73 |
| 30 | 0.15 | 0.7 |
| 35 | 0.14 | 0.59 |
| 40 | 0.14 | 0.5 |
| 50 | 0.12 | 0.39 |
| 60 | 0.12 | 0.3 |
The Order of Galvanizing and Weaving
Galvanized After Weaving (Post-Galvanized)
The wire mesh is woven first and then galvanized, allowing the zinc coating to fully cover all intersections. This process provides better appearance and corrosion resistance, with finishes such as white zinc, light blue passivation, and golden finish. It is commonly used for fine wire mesh below 0.35 mm.
Advantages
Zinc coating fully covers all woven intersections
More uniform appearance and improved corrosion resistance
Better suited for fine wire mesh applications
Galvanized Before Weaving (Pre-Galvanized)
Steel wires are galvanized before weaving, offering high production efficiency and uniform mesh openings. This method is suitable for thicker wire diameters of 0.35 mm and above and is cost-effective for large-scale production.
Advantages
High production efficiency and faster delivery
Consistent mesh openings for large-volume orders
Cost-effective solution for standard applications
Galvanized Woven Wire Mesh Shipment
Edge Treatment of Galvanized Square Mesh
Welded Selvage
Edges are reinforced by welding, providing structural stability, easy installation, and long-term durability. Commonly used for fences and industrial protection.
Closed Selvage
Edge wires are folded inward to create smooth and safe borders, reducing injury risk and improving appearance. Ideal for high-safety applications.
Returned Selvage
Edges are mechanically pressed or folded to maintain neatness and stability without welding, suitable for screening, filtering, and protective applications.
Flash
The mesh is supplied with raw cut edges, offering a cost-effective option for further processing or installation in enclosed structures.
Features of Galvanized Woven Wire Mesh
High Strength and Solid Structure
Made from high-quality low carbon steel wire, the mesh is stable and durable, resistant to deformation.
Balanced Strength and Flexibility
Provides sufficient mechanical strength while remaining flexible for cutting, bending, and easy installation.
Corrosion and Rust Resistant
The uniform zinc coating protects the steel wire, making it suitable for outdoor and humid environments.
Cost-Effective and Durable
More affordable than stainless steel mesh while ensuring long-term durability.
Uniform Openings and Stable Structure
Woven with plain or twill patterns for consistent openings, long service life, and easy installation.
Applications of Galvanized Woven Wire Mesh
Construction Protection
Used for guardrails, protective fences, and safety barriers to ensure site and public safety.
Agriculture and Animal Husbandry
Ideal for chicken coops, rabbit cages, fish ponds, and other livestock facilities, providing durability and corrosion resistance.
Screening and Filtration
Widely used in sand, chemical, mining, and food industries for particle screening or liquid and gas filtration.
Industrial Protection
Applied in machinery guards, equipment enclosures, and warehouse safety to protect personnel and equipment.
Decoration and Reinforcement
Can be used for wall and ceiling supports or structural reinforcement in buildings, offering both practicality and aesthetics.
FAQ
Q1: What Information Should I Provide To Get The Best Price?
A: Please provide the product specifications, quantity, and packaging requirements so we can offer the most accurate quotation.
Q2: What Payment Methods Do You Accept?
A: We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit). If you have other payment requirements, please leave a message or contact our online sales team directly.
Q3: Do You Have Advantages In Quality And Price For Galvanized Wire Or Wire Mesh?
A: Our wire mesh is of world-class quality and certified internationally. Prices are mid-range in China, offering high cost performance.
Q4: What Is Your Delivery Time?
A: Delivery time depends on season and order quantity. Typically, production can be completed within 20-40 days (excluding shipping).
Q5: Do You Provide Samples?
A: We offer samples of standard specifications.Samples are free, but shipping costs are borne by the buyer.
Q6: How Do You Ensure Product Quality?
A: We strictly control quality:
Pre-production samples are provided for customer approval before bulk production;
Final inspection is conducted before shipment to ensure compliance with standards and customer requirements.
