Material Options:Hebei Xiangguang Metal Net Co., Ltd provides a wide selection of materials for manufacturing filter discs, ensuring each disc meets the specific operational and environmental requirements of our clients. Available materials include high-strength stainless steel wire, stainless steel sintered mesh for enhanced filtration efficiency, corrosion-resistant brass wire, flexible phosphor copper wire mesh, thermally and electrically conductive nickel wire mesh, Monel mesh with excellent corrosion resistance in marine environments, and Inconel mesh capable of withstanding extreme temperatures. This comprehensive material range allows for precise adaptation to diverse industrial applications.

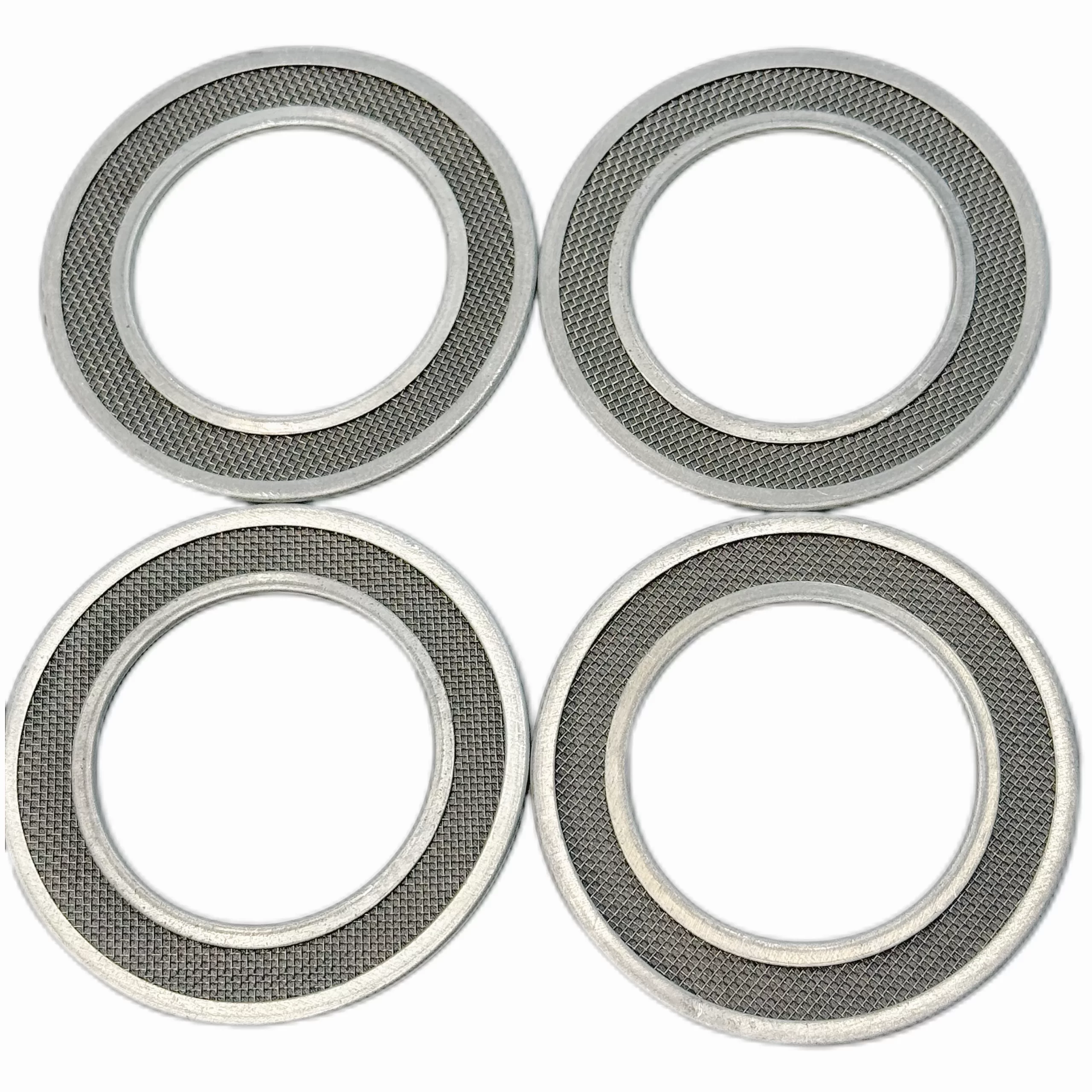

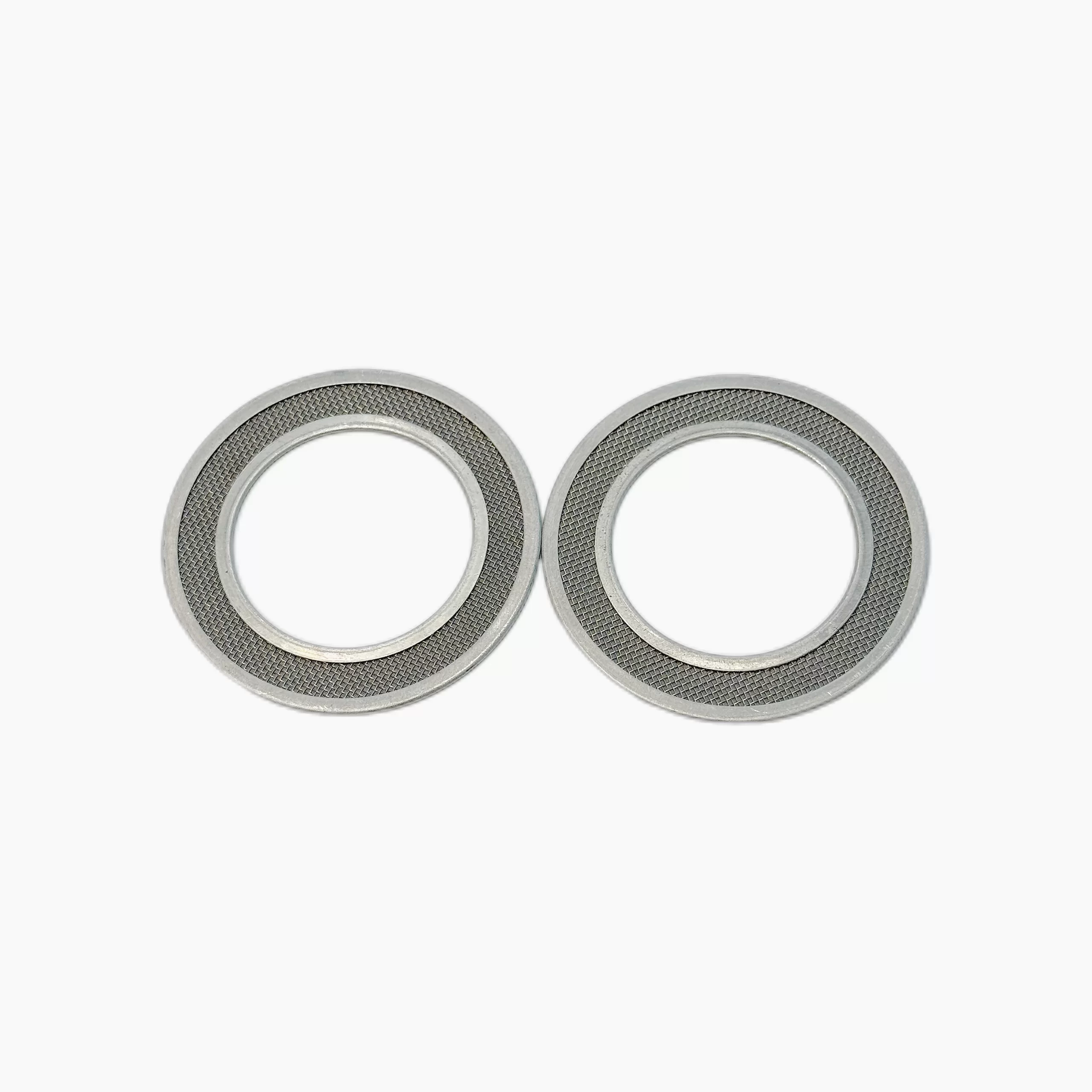

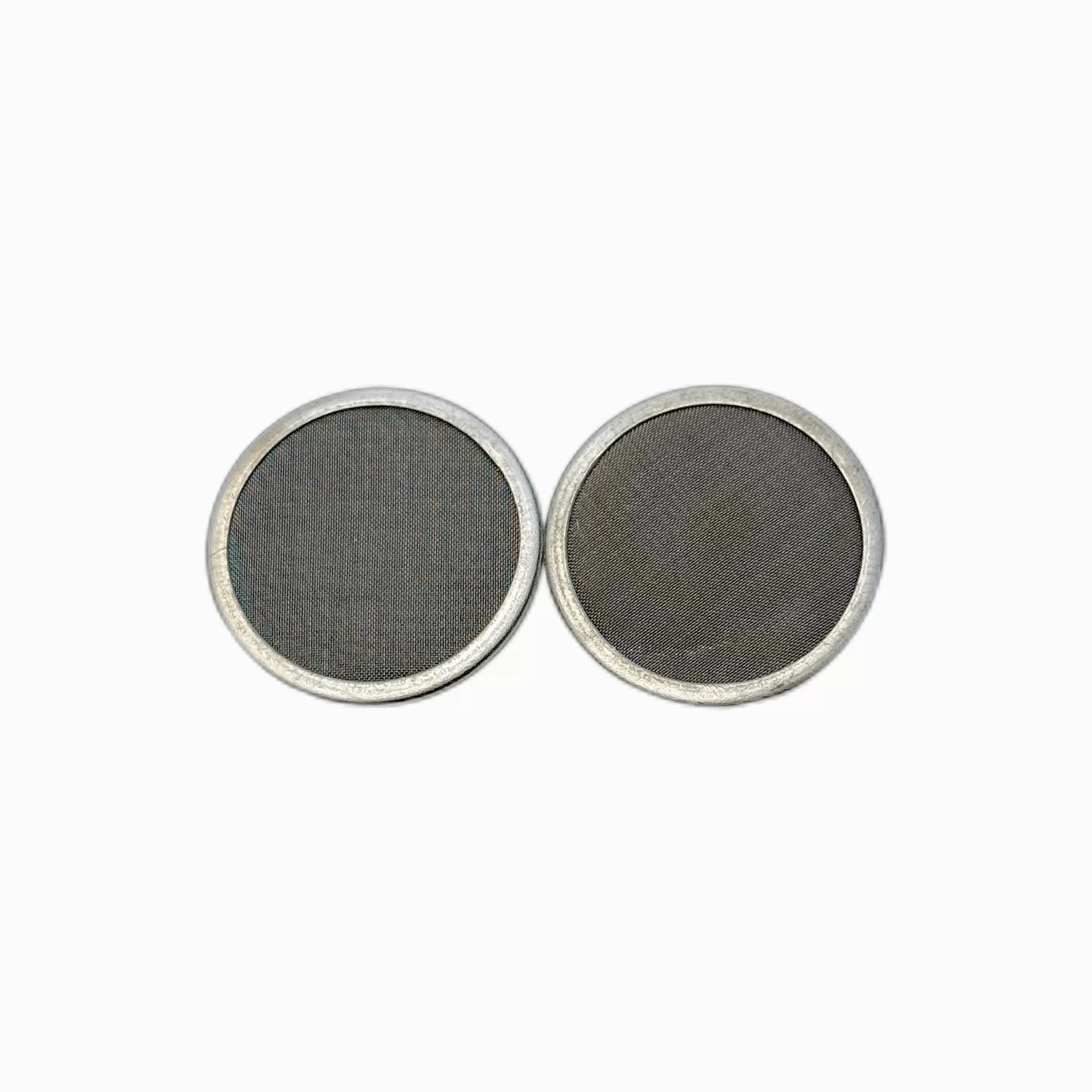

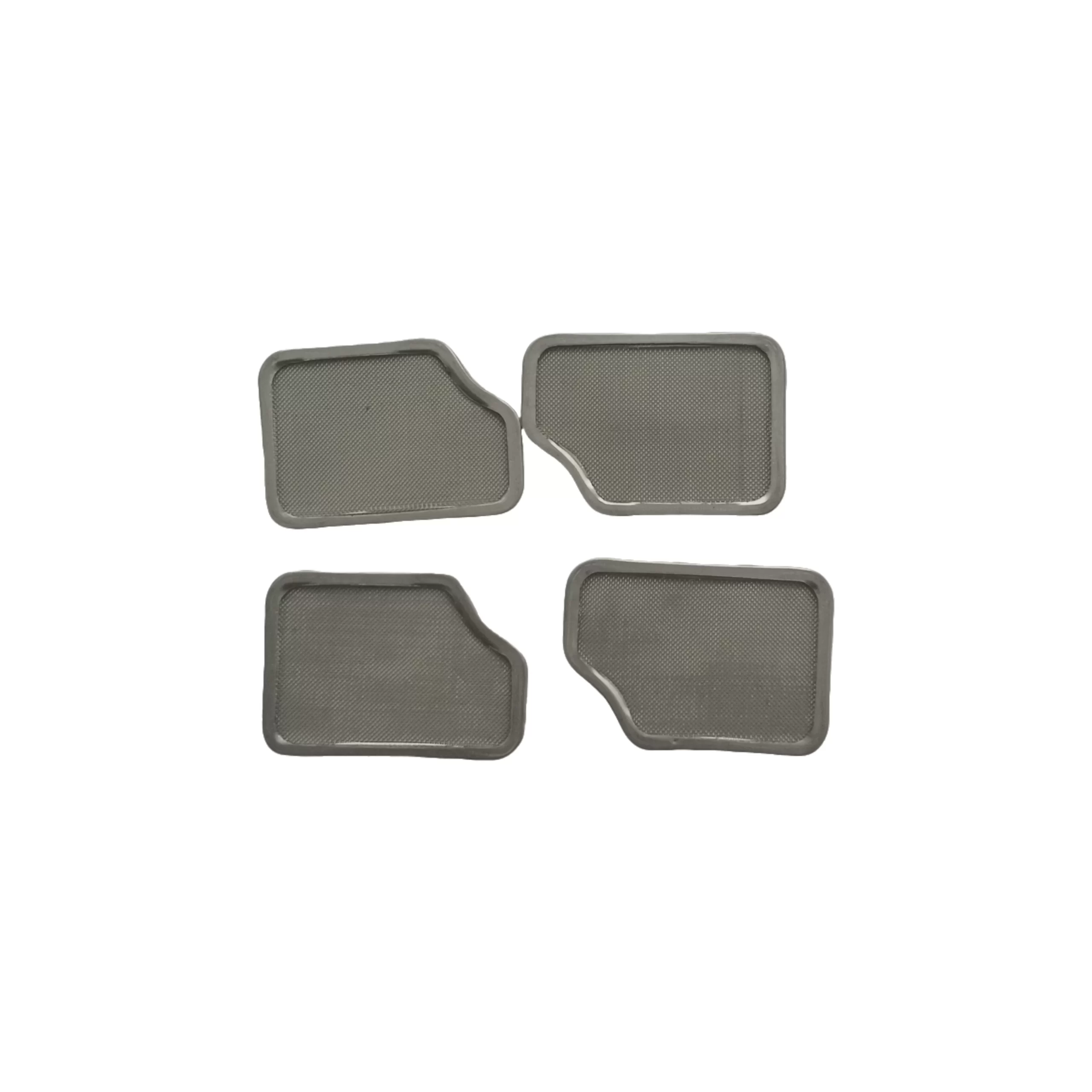

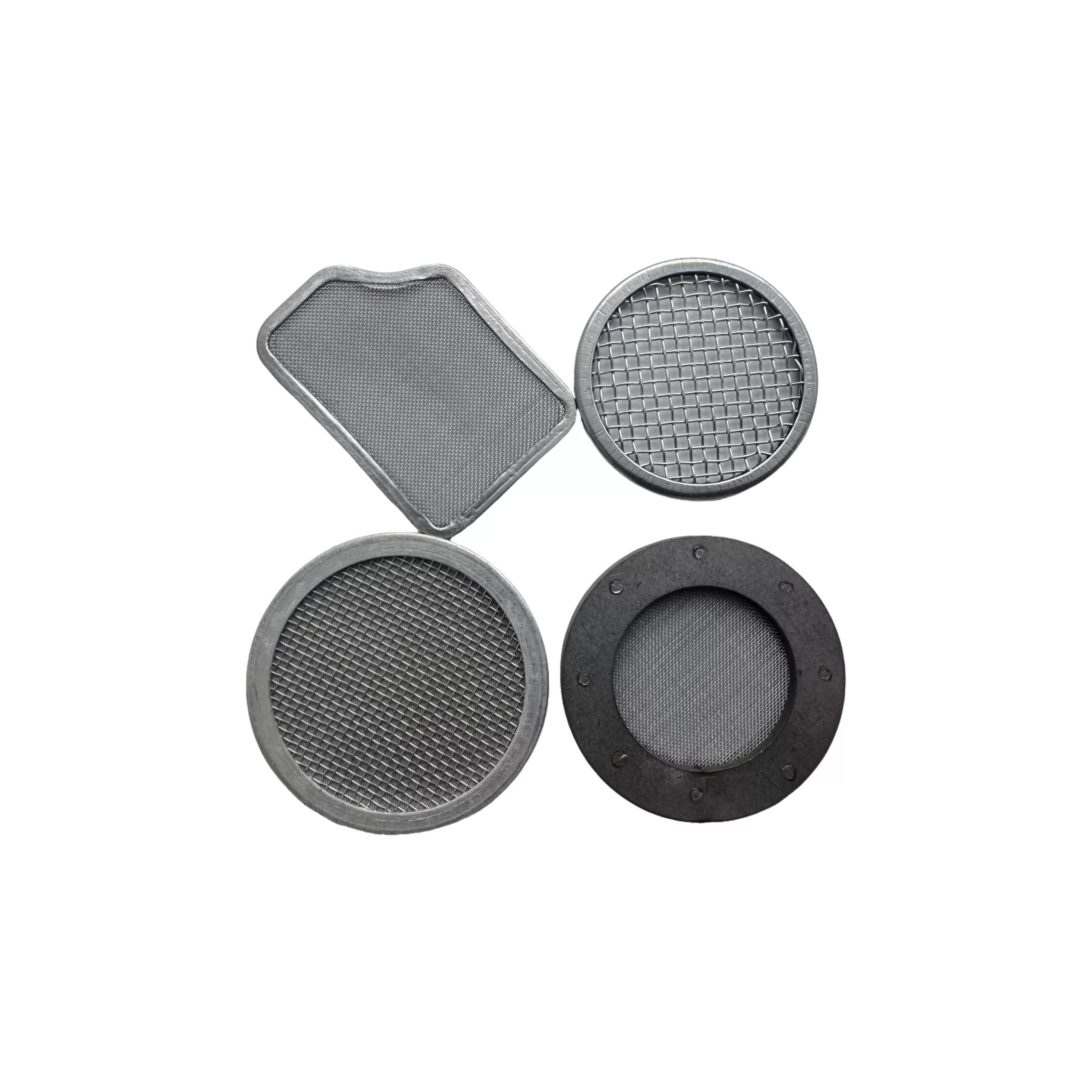

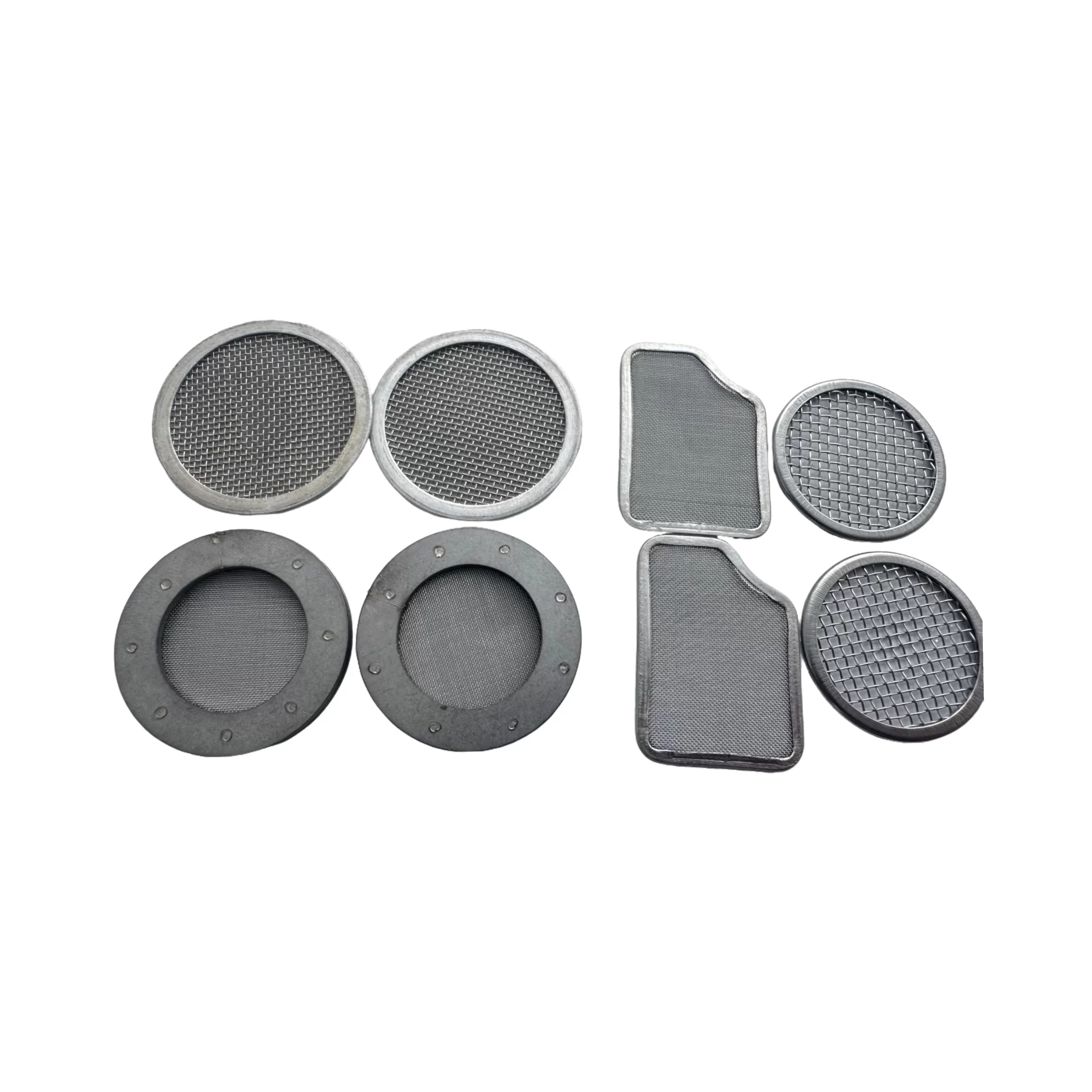

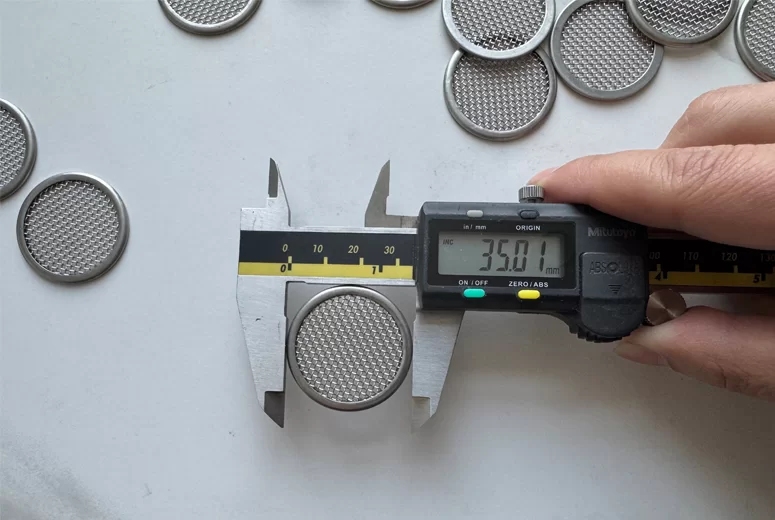

Shapes and Dimensions: Our filter discs are offered in a variety of shapes and sizes to accommodate different filtering needs. Round discs range from a compact 44mm diameter suitable for smaller applications up to 600mm for large-scale operations. Ring-shaped discs feature inner diameters from 18mm to 250mm and outer diameters from 50mm to 350mm, covering a broad spectrum of industrial requirements. Rectangular discs are available in widths from 50mm to 100mm and lengths from 60mm to 400mm, providing flexibility for specialized filtering setups. These precise dimensions ensure an optimal fit and effective functionality across applications.
Thickness and Mesh Size: Filter discs are available in thicknesses ranging from 0.1mm to 6mm, with mesh sizes spanning 10 mesh to 635 mesh. This wide range allows for customized filtration solutions, from coarse to ultra-fine, tailored to the specific demands of each application. Such versatility guarantees that every filter disc can achieve the desired separation performance.

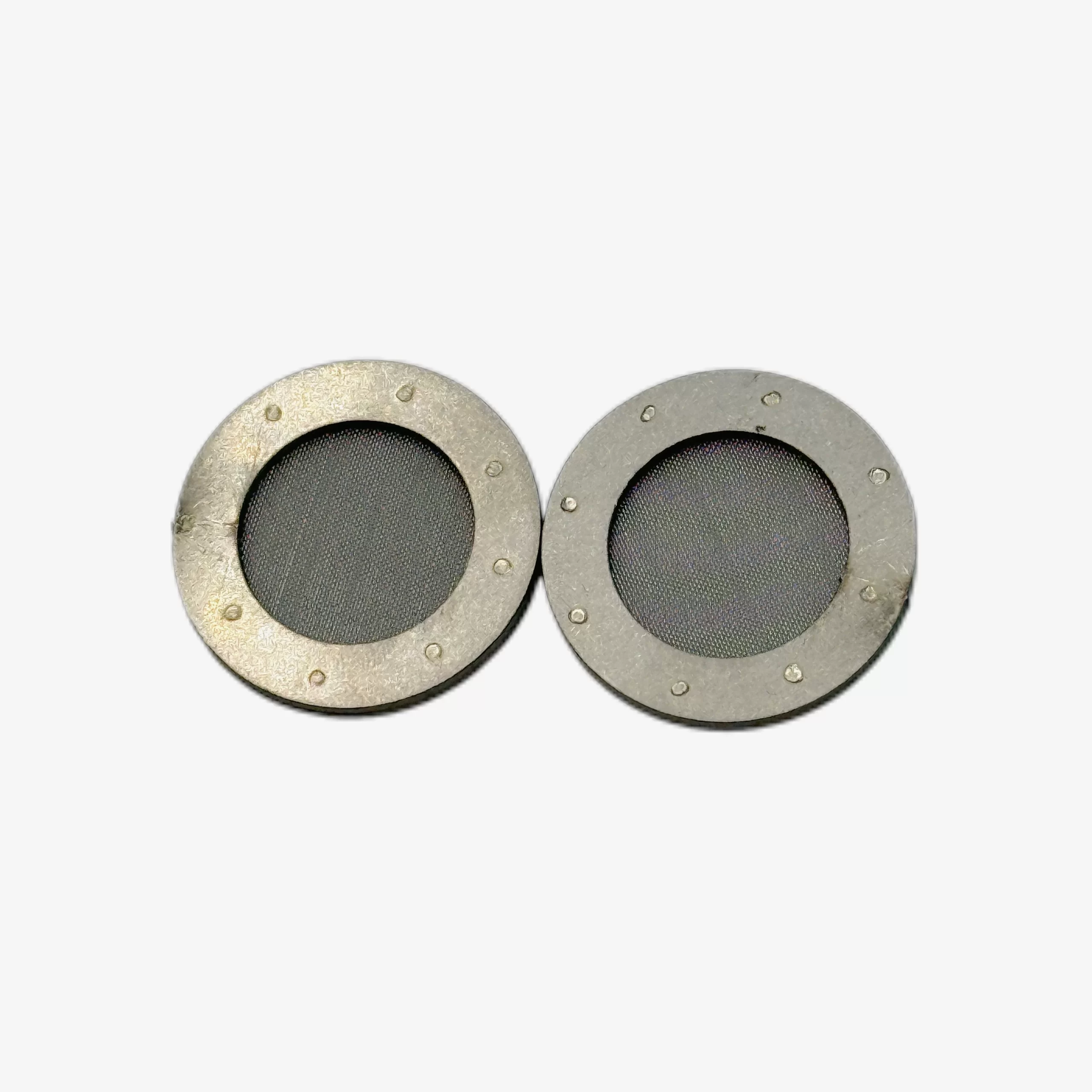

Structure and Fabrication: We provide Single, Double, and Multi-layer structures, with or without frames, and options for spot-welded or non-spot-welded construction. Single-layer discs offer simplicity and cost efficiency, double-layer discs provide enhanced durability and strength, while multi-layer discs deliver superior filtration performance. These structural variations allow clients to balance strength, durability, and filtration precision according to industrial needs.
Customization: Hebei Xiangguang Metal Net Co., Ltd recognizes that each industry has unique filtration requirements. Therefore, we offer fully customized filter discs based on specific client specifications, including material, shape, size, thickness, mesh size, structure, and fabrication technique. This ensures every filter disc is engineered for maximum efficiency and reliability in its intended application, whether for standard industrial use or specialized processes.
Features Of Filter Discs
Wide Range of Micron Ratings: Our filter discs are available in various micron ratings, enabling precise filtration to meet specific process requirements and ensuring optimal particle capture.
Exceptional Filtration Performance: Featuring finely woven meshes and smooth surfaces, these discs provide outstanding filtration efficiency, effectively capturing even the smallest particles.
Multi-Layer Design: With options for single, double, or multiple layers, the discs combine superior mechanical strength with fine filtration capability, making them ideal for demanding applications.
No Media Migration: Expertly engineered to prevent filtering media from migrating, ensuring consistent, reliable, and contamination-free filtration.
Cost-Effective Solution: Designed to deliver excellent performance while remaining budget-friendly, offering industries an economical choice without compromising quality.
Maximum Protection: Provides robust protection against impurities, safeguarding the integrity of both the filtration process and the final product.
Low Pressure Drop: Optimized to minimize pressure loss across the filter, ensuring efficient operation and reduced energy consumption.
Reusable and Environmentally Friendly: These filter discs can be rinsed and reused multiple times, reducing waste and operational costs while promoting sustainable practices.
Applications Of Filter Discs
Chemical Industry: Purifies chemicals and protects equipment from particulate contamination.
Pharmaceutical Manufacturing: Ensures process fluids are filtered for the highest medication purity standards.
Food and Beverage Industry: Clarifies liquids and oils, maintaining health and safety standards.
Water Treatment: Removes contaminants from drinking and wastewater, supporting environmental safety.
Petrochemical Processes: Filters oils and fuels to enhance product quality and operational efficiency.
Automotive Filtration: Applied in vehicles for oil, fuel, and air filtration, critical for optimal performance.
Aerospace and Defense: Ensures fluids in sensitive aerospace and defense systems remain clean and reliable.
Electronics Manufacturing: Maintains air and liquid purity in semiconductor and electronic component production.
Laboratory Research: Provides accurate, contamination-free filtration for research and experimental applications.
The Type Filter Discs
Metal Filter Discs:Xiangguang provides a wide selection of metal filter discs designed to deliver complete system protection across various industries.

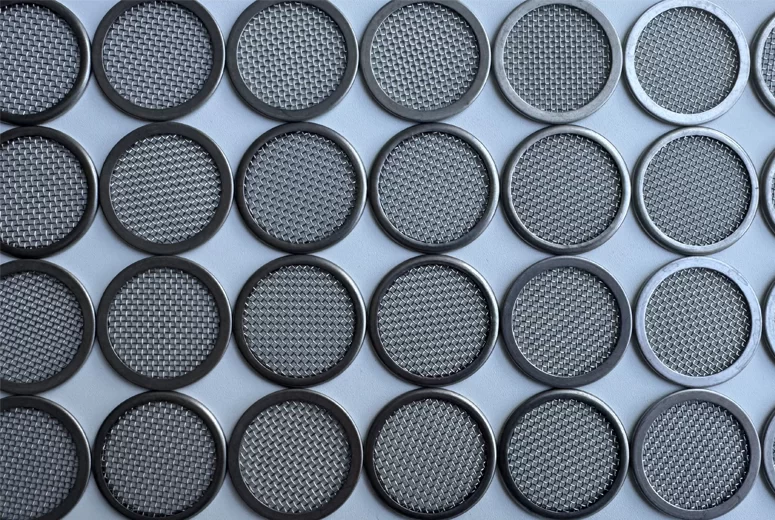

Mesh Filter Discs:Our mesh filter discs are available in both flat and pleated designs, making them adaptable to specific application requirements. Engineered for use in liquid and gas flow systems, these metal mesh discs deliver reliable filtration performance. With their cost-efficient design, they offer a larger effective filtration area compared to similar installation options, ensuring long-lasting protection.
Fibre Filter Discs:We supply an extensive range of fibre filter discs for use in both liquid and gas applications. These discs are available in flat or pleated formats to meet diverse system needs. Flat discs provide an economical choice where installation space is limited or where minimal contamination is expected. For systems that require an expanded filtration area or reduced pressure drop while maintaining a compact footprint, pleated discs are the ideal solution. Both options can be supplied with or without sealing rims and are offered in a full range of filtration ratings to suit different operating conditions.
Powder Filter Discs:Our powder filter discs are manufactured using advanced powder metallurgy techniques, creating porous metal discs with interconnected structures. They are available in diameters from as small as 0.5mm (0.02") to over 203mm (8"), with thicknesses to match specific requirements. These porous sintered discs provide densities ranging from 35% to 75% and are available in 15 standard micron grades, with pore sizes ranging between 0.003 and 200 micrometers. This wide selection makes them highly versatile for demanding filtration applications.
