Decorative Metal Mesh For Interior Design And Elevator Cladding
Decorative metal mesh combines elegance, durability, and versatility, making it widely used in modern architectural interior design and elevator cladding. Its unique mesh patterns, metallic sheen, and adjustable openness add a touch of luxury and depth while protecting surfaces.

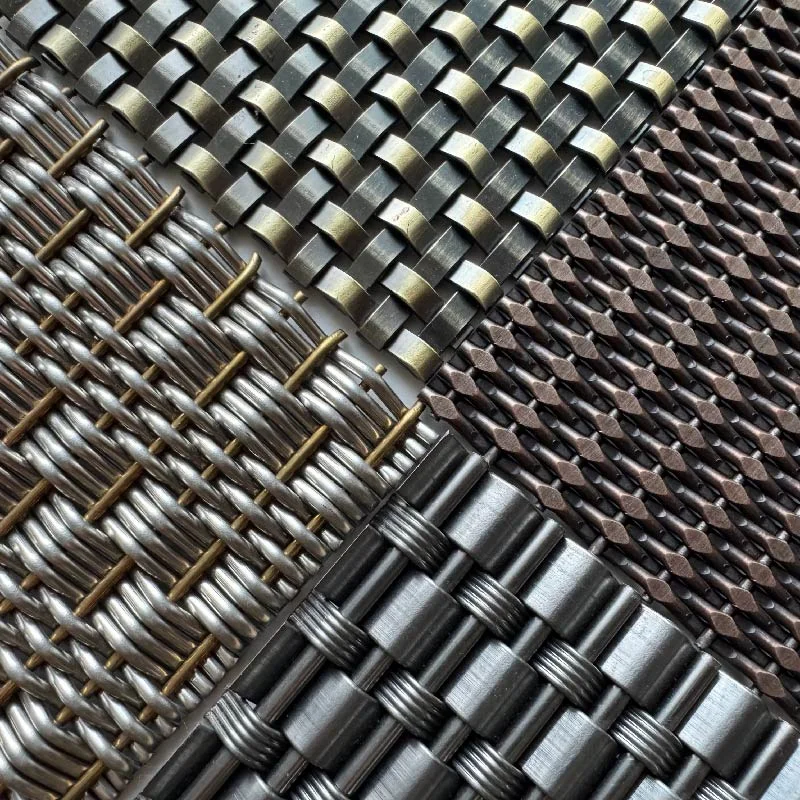

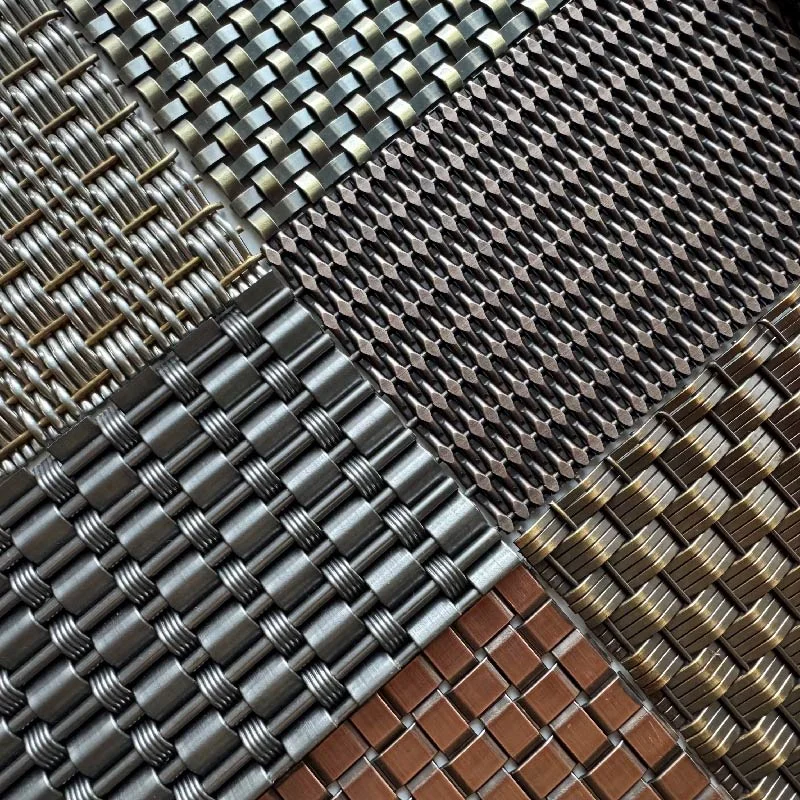

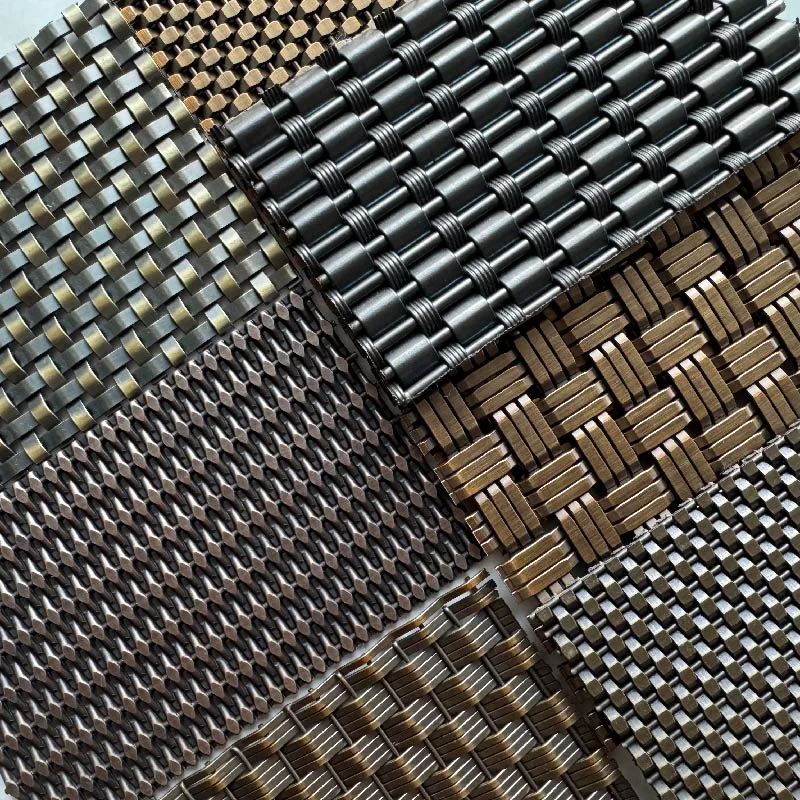

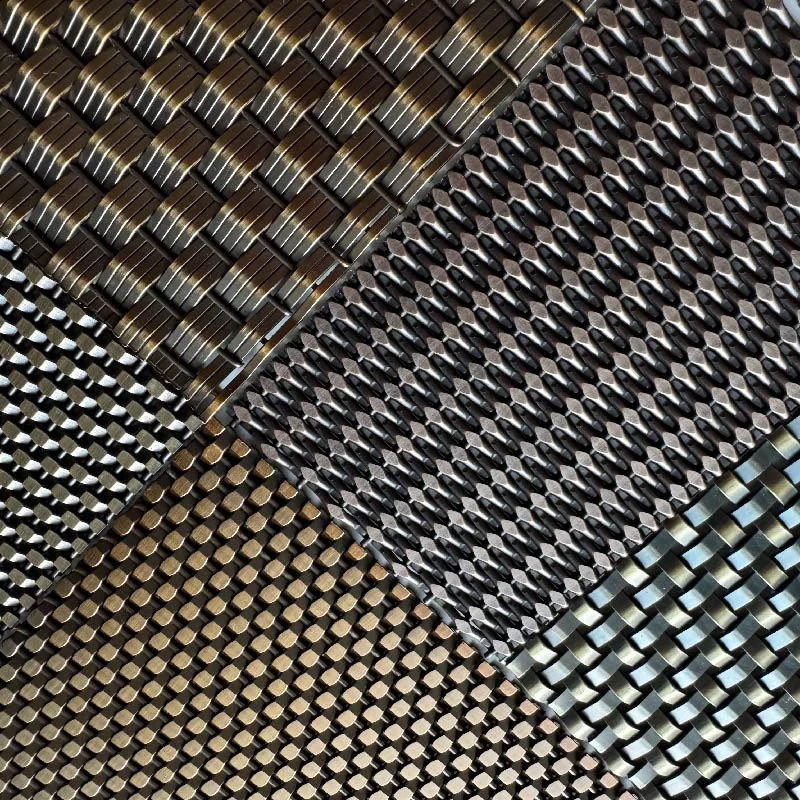

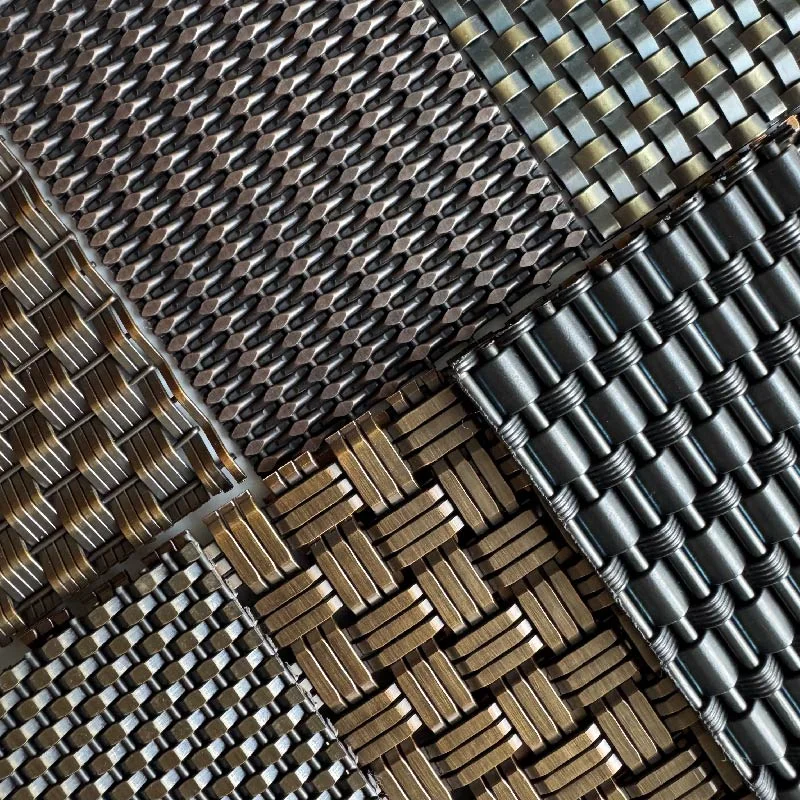

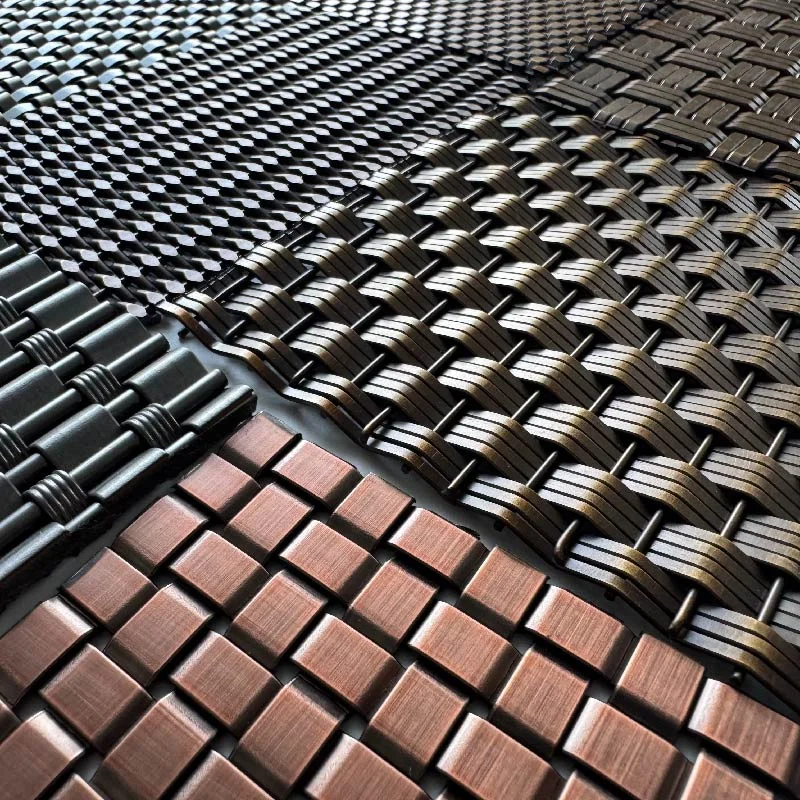

We offer a series of classic metal grating styles, including but not limited to the following 6 patterns.
# Pattern 1
Open Area: 5%
Wire diameter: 2.4x1mmx 3 wires
Mesh opening size (Aperture/Hole):2x2mm
Fabric thickness: 2.1mm
Approximate weight: 11.9kg/m2
Material: 304 or 316 stainless steel optional
Surface: antique brass plated
# Pattern 2
Open Area: 0%
Wire diameter: 1.95mm + 1.45mm
Mesh opening size (Aperture/Hole):0mm
Fabric thickness: 4.5mm
Approximate weight: 14kg/m2
Material: 304 or 316 stainless steel + real brass
Surface: mill finish

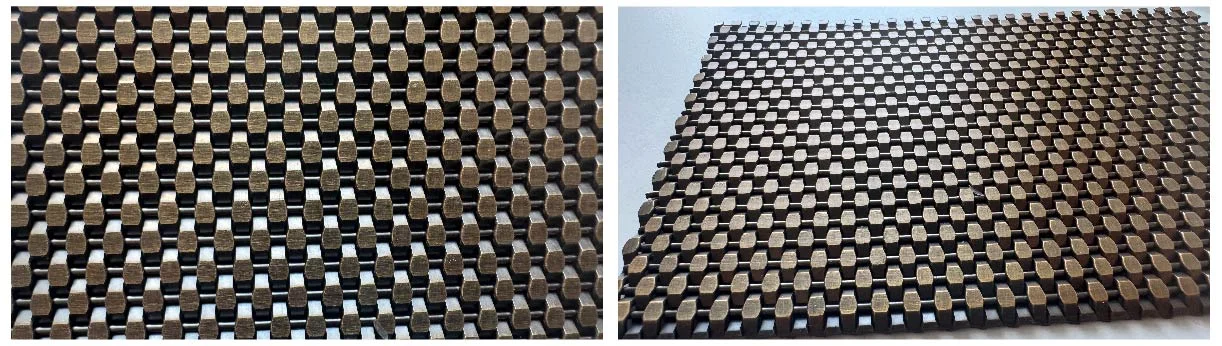

# Pattern 3
Open Area: 6%
Wire diameter: 7x1mm
Mesh opening size (Aperture/Hole):2.3×2.3mm
Fabric thickness: 1.94mm
Approximate weight: 11.6kg/m2
Material: 304 or 316 stainless steel optional
Surface: antique copper plated

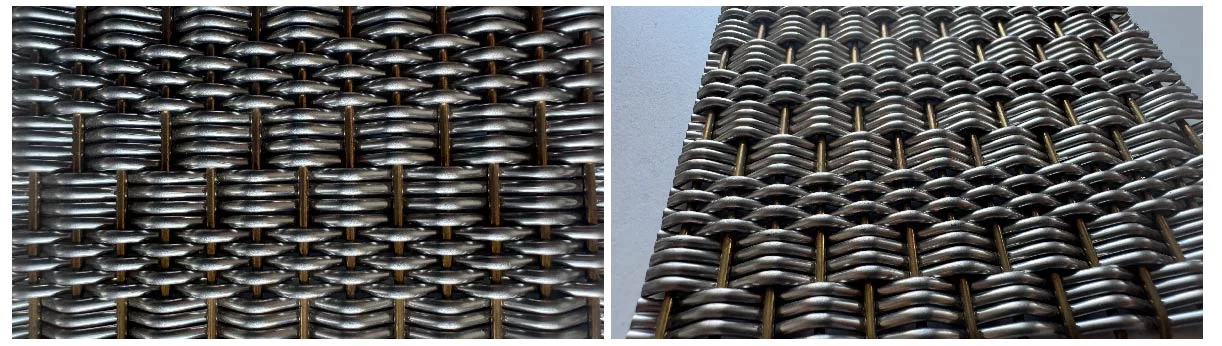

# Pattern 4
Open Area: 0%
Wire diameter: smooth strips 10x1mm+grooved strips 5x1mm+ wire rod 3mm
Mesh opening size (Aperture/Hole):0mm
Fabric thickness: 4.9mm
Approximate weight: 17kg/m2
Material: SS304 , SS316 or SS201 stainless steel optional
Surface: PVD titanium plated

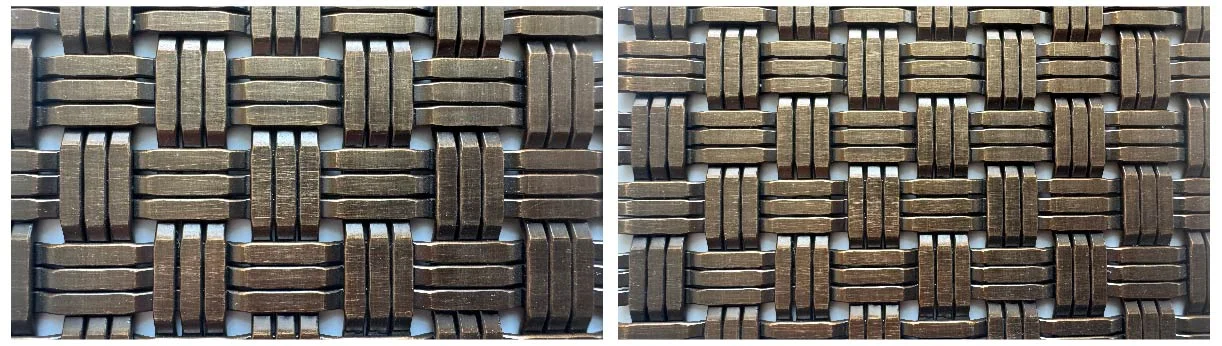

# Pattern 5
Open Area: 0%
Wire diameter: flat SS strip 3×1.5mm+ wire rod 1.45mm
Mesh opening size (Aperture/Hole):0mm
Fabric thickness: 3mm
Approximate weight: 12.6kg/m2
Material: SS304 , SS316 or SS201 stainless steel optional
Surface: antique bronze finish

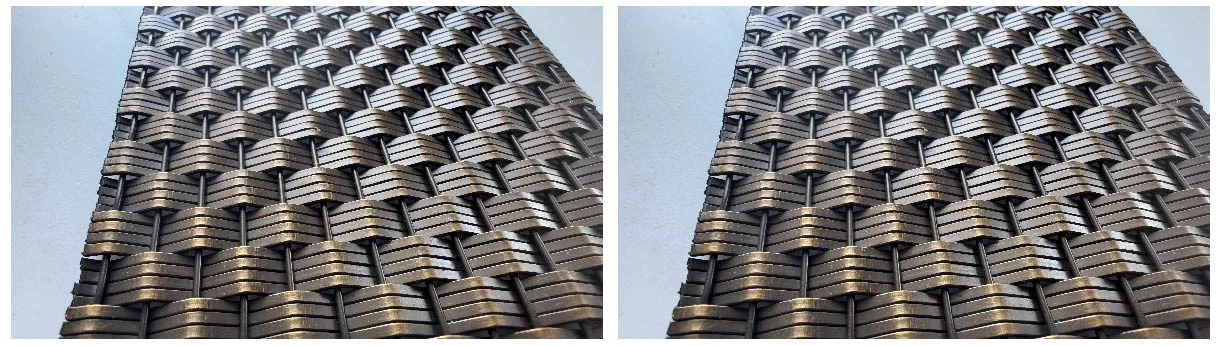

# Pattern 6
Open Area: 0%
Wire diameter: Warp wire strips(4 wires) 2x1mm+ weft wire 1.2mm
Mesh opening size (Aperture/Hole):0mm
Fabric thickness: 3.1mm
Approximate weight: 8.4kg/m2
Material: SS304 , SS316 or SS201 stainless steel optional
Surface: antique bronze finish
Advantages And Disadvantages Of Different Stainless Steel Materials
201 stainless steel offers the lowest cost and high performance, making it a common choice for projects with limited budgets. It has high strength and hardness, suitable for structural or large-area decorative mesh. Its disadvantages include low nickel content, moderate corrosion resistance, and a tendency to lose luster or develop spots in outdoor or humid environments. It is unsuitable for harsh environments such as high salt spray and high humidity. It is suitable for interior decoration, dry environments, and budget-sensitive decorative projects.
304 stainless steel offers the most balanced overall performance and is the most widely used material for decorative mesh. It has good corrosion resistance, processing performance, and weldability. It can be used stably in most indoor and outdoor environments. Its corrosion resistance may be insufficient in coastal areas or strong acid/alkali environments. It is suitable for mid-to-high-end indoor and outdoor decoration, commercial spaces, curtain walls, and ceilings.
316 stainless steel contains molybdenum (Mo), resulting in significantly stronger corrosion resistance than 304, with excellent resistance to salt spray and chloride corrosion. It is suitable for harsh environments such as beaches, swimming pools, and chemical plants. It has the highest cost, and if the project itself has a good environment, it may not need to use this material, thus reducing its cost-effectiveness. It is suitable for long-term exposure environments such as seaside buildings, outdoor curtain walls, swimming pool areas, and high-end commercial spaces.
Applications
These designer metal mesh panel is ideal for a variety of commercial façade and interior applications, including:
1.Elevator cabins and lobby wall cladding
2.Hotel wall surfaces, where decorative metal mesh enhances aesthetics and luxury.
3.Commercial interior partitions or space dividers
4.Railing infill panels with a high level of privacy protection.
Sampling
We offer free standard samples in natural metal finishes.
If you require samples with colored or special surface treatments, a small fee will apply.
To request a sample, please contact our sales team and provide the product code, material, and preferred surface finish.
Please note that customized finishes or special weave patterns may require additional preparation time.
Ordering
To place an order:
1.Confirm your chosen mesh type, material, and finish.
2.Provide detailed panel sizes and quantity.
3.Receive a quotation and sample confirmation.
4.Production begins upon deposit and order confirmation.
5.Final inspection, packaging, and shipment follow production completion.
