Detailed Introduction of Black Wire Mesh
Material: Q195 and Q235,ect.
Mesh Count: 8–150 mesh, depending on the selected weaving pattern.
Type: Industrial woven wire mesh.
Wire Diameter: 0.7-0.18mm.
Width: 914mm,1000mm,1220mm,(Max 6000mm,according to specifications).
Length: 30m and custom sizes.

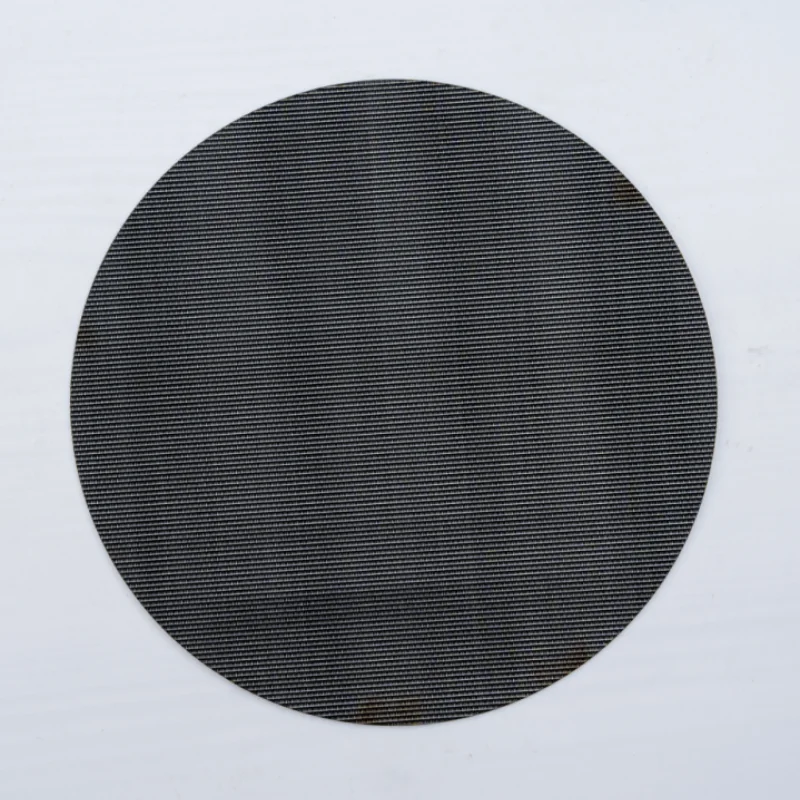

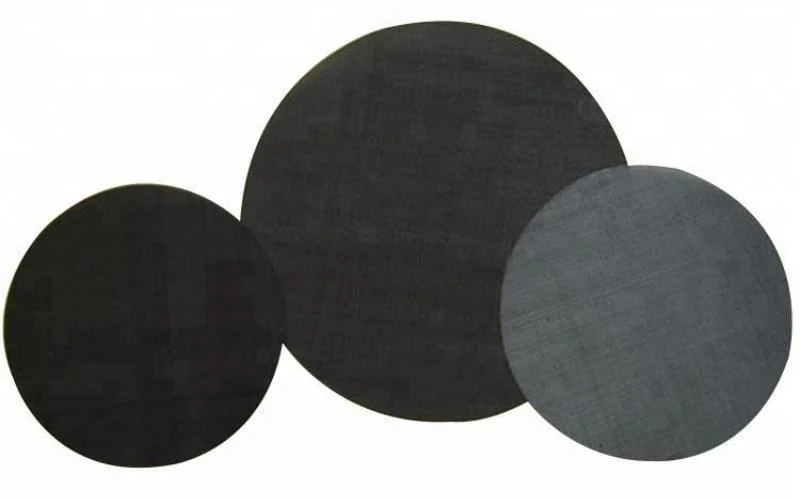

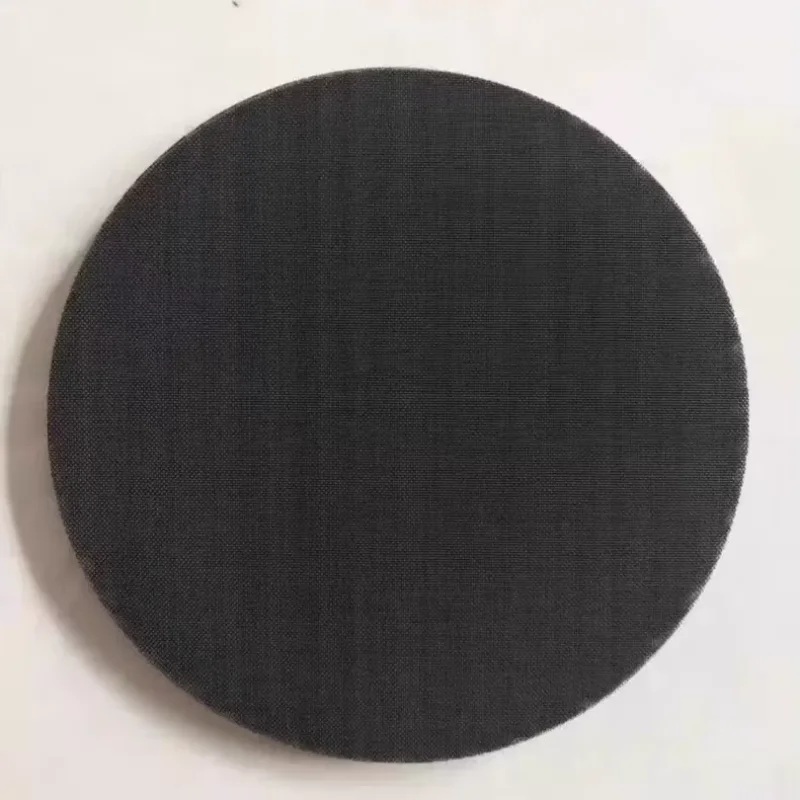

Shapes: Our mesh can be cut into various shapes, including round, rectangular, square, and oval. In addition, we also supply woven wire cloth, providing greater flexibility and versatility for different applications.

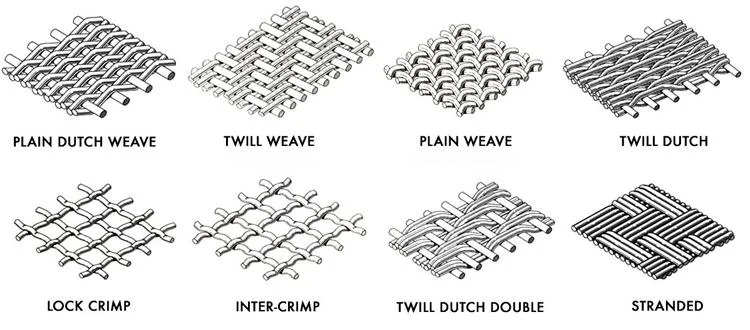

Weave Type: Plain weave, twill weave, dutch weave.
Mesh/Inch | Opening (mm) | Wire Diameter (mm) | Reference weight (kg/sq. meter) |
10 mesh × 10 mesh | 1.94 | 0.6 | 1.8 |
10 mesh × 10 mesh | 1.98 | 0.56 | 1.56 |
12 mesh × 12 mesh | 1.52 | 0.6 | 2.16 |
12 mesh × 12 mesh | 1.56 | 0.56 | 1.88 |
18 mesh × 18 mesh | 0.96 | 0.45 | 1.82 |
18 mesh × 18 mesh | 1 | 0.41 | 1.52 |
18 mesh × 18 mesh | 1.04 | 0.37 | 1.23 |
18 mesh × 18 mesh | 1.06 | 0.35 | 1.1 |
20 mesh × 20 mesh | 0.86 | 0.41 | 1.68 |
20 mesh × 20 mesh | 0.9 | 0.37 | 1.38 |
22 mesh × 22 mesh | 0.74 | 0.35 | 1.33 |
22 mesh × 22 mesh | 0.79 | 0.3 | 0.99 |
24 mesh × 24 mesh | 0.7 | 0.35 | 1.5 |
26 mesh × 26 mesh | 0.63 | 0.35 | 1.66 |
28 mesh × 28 mesh | 0.6 | 0.31 | 1.36 |
30 mesh × 30 mesh | 0.64 | 0.31 | 1.46 |
32 mesh × 32 mesh | 0.5 | 0.29 | 1.36 |
34 mesh × 34 mesh | 0.47 | 0.28 | 1.3 |
36 mesh × 36 mesh | 0.47 | 0.28 | 1.3 |
38 mesh × 38 mesh | 0.41 | 0.26 | 1.1 |
40 mesh × 40 mesh | 0.39 | 0.25 | 1.2 |
40 mesh × 40 mesh | 0.41 | 0.23 | 1.06 |
40 mesh × 40 mesh | 0.43 | 0.21 | 0.88 |
42 mesh × 42 mesh | 0.365 | 0.24 | 1.1 |
44 mesh × 44 mesh | 0.347 | 0.23 | 1 |
46 mesh × 46 mesh | 0.332 | 0.22 | 1 |
48 mesh × 48 mesh | 0.319 | 0.2 | 0.96 |
50 mesh × 50 mesh | 0.318 | 0.19 | 0.91 |
50 mesh × 50 mesh | 0.338 | 0.17 | 0.72 |
56 mesh × 56 mesh | 0.248 | 0.17 | 0.81 |
60 mesh × 60 mesh | 0.27 | 0.15 | 0.68 |
60 mesh × 60 mesh | 0.27 | 0.15 | 0.68 |
Different Mesh Counts of Black Wire Mesh
The mesh count determines the mesh size; the higher the mesh count, the finer the mesh.
0.3–20 Mesh Black Wire Mesh
Features large openings and good airflow, suitable for coarse filtration, material separation, and primary screening applications.
20–60 Mesh Black Wire Mesh
Medium openings that offer a good balance between strength and filtration performance, widely used in the rubber and plastic industries.
80–120 Mesh Black Wire Mesh
Fine openings, ideal for applications requiring more precise filtration and improved filtering efficiency.
150–200 Mesh Black Wire Mesh
High mesh count, specially designed for fine and precision filtration, commonly used in pharmaceutical, rubber, and food processing industries for critical filtration.
Key Characteristics of Black Wire Mesh
High Strength and Good Flexibility
Made from high-quality low carbon steel wire, black wire mesh offers reliable mechanical strength and flexibility, reducing the risk of breakage or deformation during use.
Limited Corrosion Resistance, Coating Available
With an untreated surface, black wire mesh is not inherently corrosion-resistant. Additional coatings such as painting or plastic coating can be applied to improve durability in corrosive environments.
Magnetic Property
As an iron-based material, black wire mesh has magnetic characteristics, making it suitable for applications requiring magnetic separation or compatibility with magnetic equipment.
Easy to Cut and Flexible in Use
The mesh is easy to cut and further process, allowing it to be fabricated into various sizes and shapes for convenient installation and use.
Cost-Effective Solution
Compared with stainless steel wire cloth, black wire mesh provides a more economical option while meeting general application requirements, making it ideal for large-scale industrial use.
Applications of Black Wire Mesh
Industrial Filtration: Used in chemical, petroleum, and related industries for filtering and separating liquids, gases, and powders.
Food and Grain Filtration: Suitable for grain processing, raw material screening, and basic filtration in food production.
Machinery and Equipment: Applied as filter elements or support materials in various industrial machines and systems.
Isolation and Protection: Used for temporary barriers, simple fencing, and area protection applications.
Black Wire Mesh Packaging Method

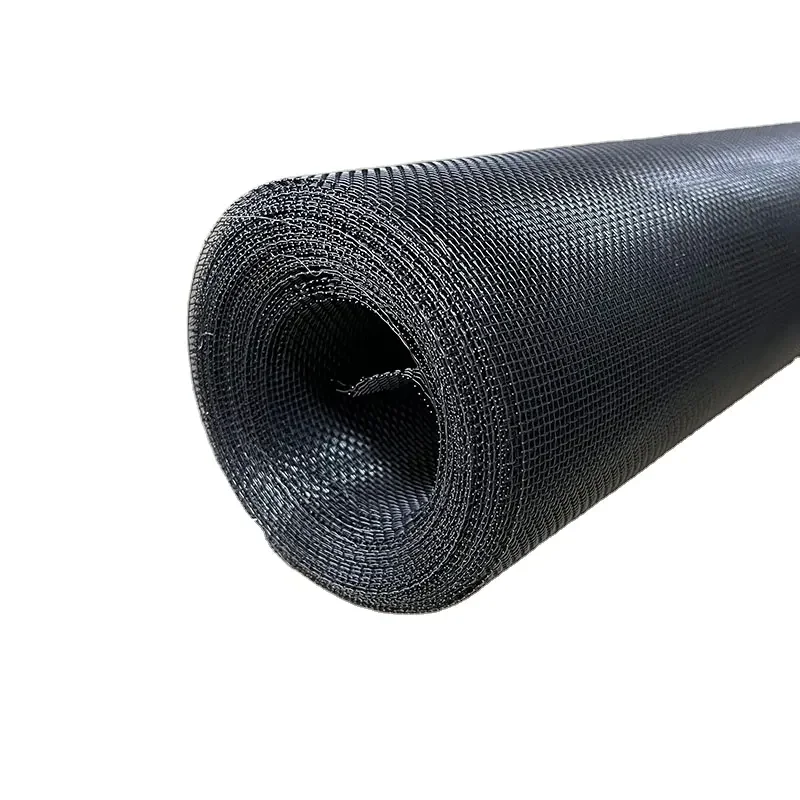

Standard Roll Packing: Each roll is wrapped with waterproof paper or packed in a plastic bag, then placed into cartons or secured on pallets for moisture and dust protection.
High Mesh Count Black Wire Mesh: A paper tube is inserted inside the roll, covered with waterproof paper, and finally packed in wooden cases or on pallets to prevent deformation during export transportation.
Low Mesh Count Black Wire Mesh: Supplied in rolls, wrapped with waterproof materials and reinforced with woven bags, then packed into wooden cases for easy handling and storage.
Sheet-Type Black Wire Mesh: Wrapped with plastic film inside and packed in small wooden boxes outside to protect the mesh during transportation.
Customized Packing Available: Customized packing solutions such as labeling, reinforcement, and special packing methods can be provided according to customer requirements.
FAQ
Q1: Why Choose Xiangguang?
A1: Hebei Xiangguang Metal Net Co., Ltd. is a leading manufacturer of low carbon steel wire, with over 30 years of production experience, adopting advanced cold drawing and annealing technology.
Q2: What Are The Advantages Of Low Carbon Steel Wire?
A2: With low carbon content, low carbon steel wire offers excellent flexibility, ductility, and plasticity, making it suitable for drawing, weaving, welding, and other processing methods. It can also be treated with galvanizing, PVC coating, or phosphating to enhance rust resistance and corrosion protection. Moreover, its low raw material cost and high production efficiency make it a cost-effective and widely used wire material.
Q3: What Are The Advantages Of Black Wire Mesh Compared With Stainless Steel Wire Mesh?
A3: Compared to stainless steel wire mesh, black wire mesh has advantages in cost, processing performance, and flexibility.
