Material Specification of 321 Stainless Steel Wire Mesh
Mesh Count Range: 2 mesh – 400 mesh
Covers applications from coarse filtration to precision filtration, and can be customized according to specific filtration accuracy and operating conditions.
Wire Diameter Range: 0.02 mm – 3.0 mm
Suitable for different strength, heat resistance, and service life requirements, making it applicable to various high-temperature environments.
Weave Types:
Plain Weave;Twill Weave;Dutch Weave
Mesh Width & Length:
Available in customized widths and lengths based on customer equipment dimensions and application needs, suitable for different installation methods and operating conditions.
Processing Options:
Supplied in rolls, with additional services including cutting, fixed-length processing, and various fabrication options, allowing for convenient installation and direct use.
Chemical Composition of 321 Stainless Steel Wire Mesh (%) |
Chemical Composition | C | Si | Mn | S | P | Cr | Ni | Ti |
Content | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.030 | ≤ 0.045 | 17.00–19.00 | 9.00–12.00 | ≥ 5 × C |
Mechanical Properties of 321 Stainless Steel Wire Mesh |
Mechanical Properties | Tensile Strength
σb (MPa) | Conditional Yield Strength
σ0.2 (MPa) | Elongation
δ5 (%) | Reduction of Area
Ψ (%) | Hardness |
Index | ≥ 520 | ≥ 205 | ≥ 40 | ≥ 50 | ≤ 187 HB
≤ 90 HRB
≤ 200 HV |
Characteristics of 321 Stainless Steel Wire Mesh
Corrosion Resistance: AISI 321 stainless steel maintains its mechanical strength, surface quality, and overall performance in harsh environments and across a wide range of temperatures. It exhibits excellent resistance to both atmospheric and intergranular corrosion. However, environments containing sulfur compounds may reduce its corrosion resistance.
Heat Resistance: AISI 321 stainless steel demonstrates reliable performance under both elevated and low-temperature conditions. The recommended service temperature range is 600–900°C, depending on the surrounding environment, while the melting point is approximately 1400°C. When exposed to temperatures of 1000–1100°C, the material undergoes natural softening, becoming more ductile and easier to deform, similar to other stainless steels.
Weldability: This grade offers excellent weldability using various welding methods. In most cases, preheating of the material prior to welding is not required.
Machinability: AISI 321 stainless steel is easy to process and fabricate. It can be readily machined through grinding, drilling, milling, and other standard metalworking operations.
Magnetic Properties: The material exhibits weak magnetic behavior in its untreated state and becomes non-magnetic after appropriate heat treatment.

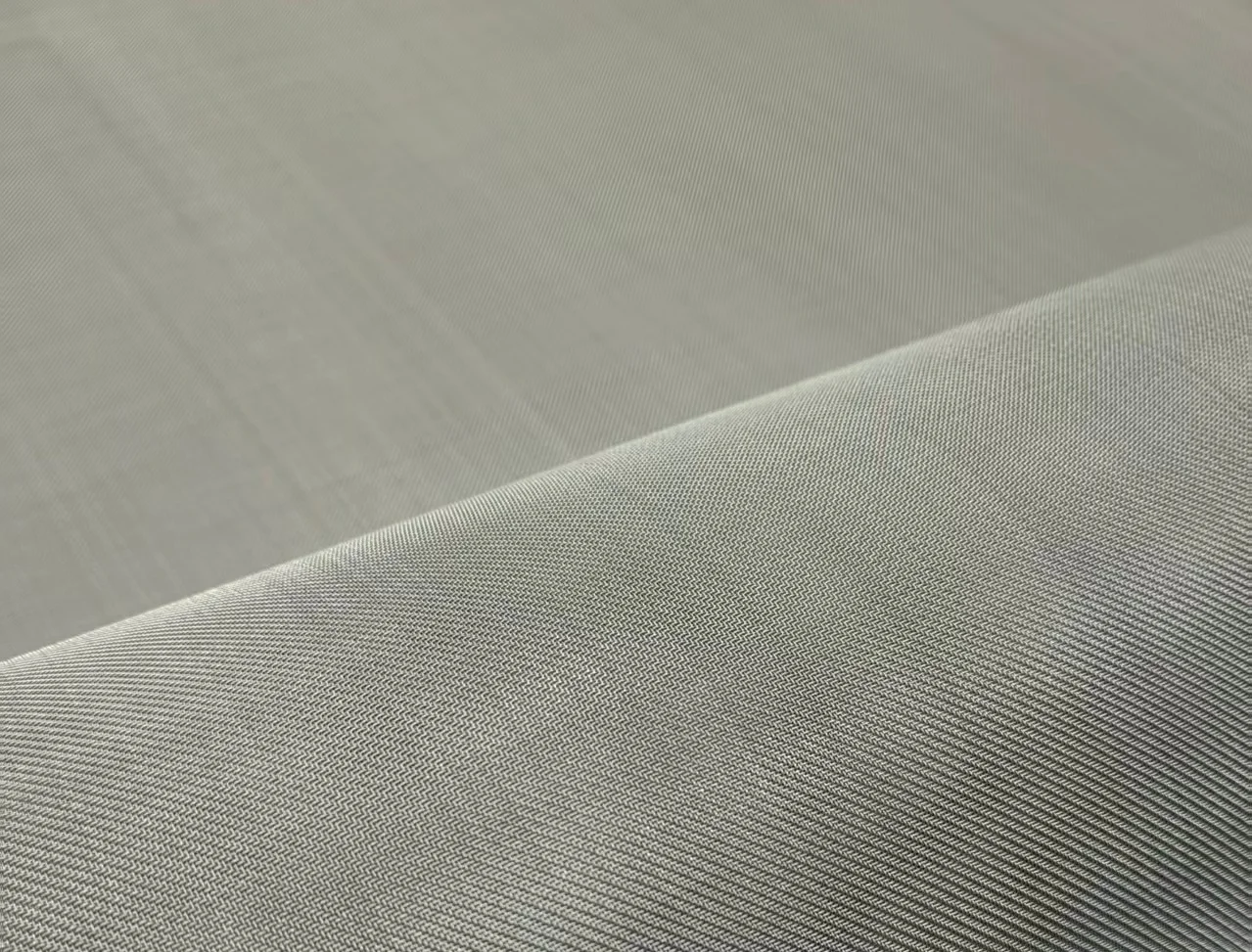

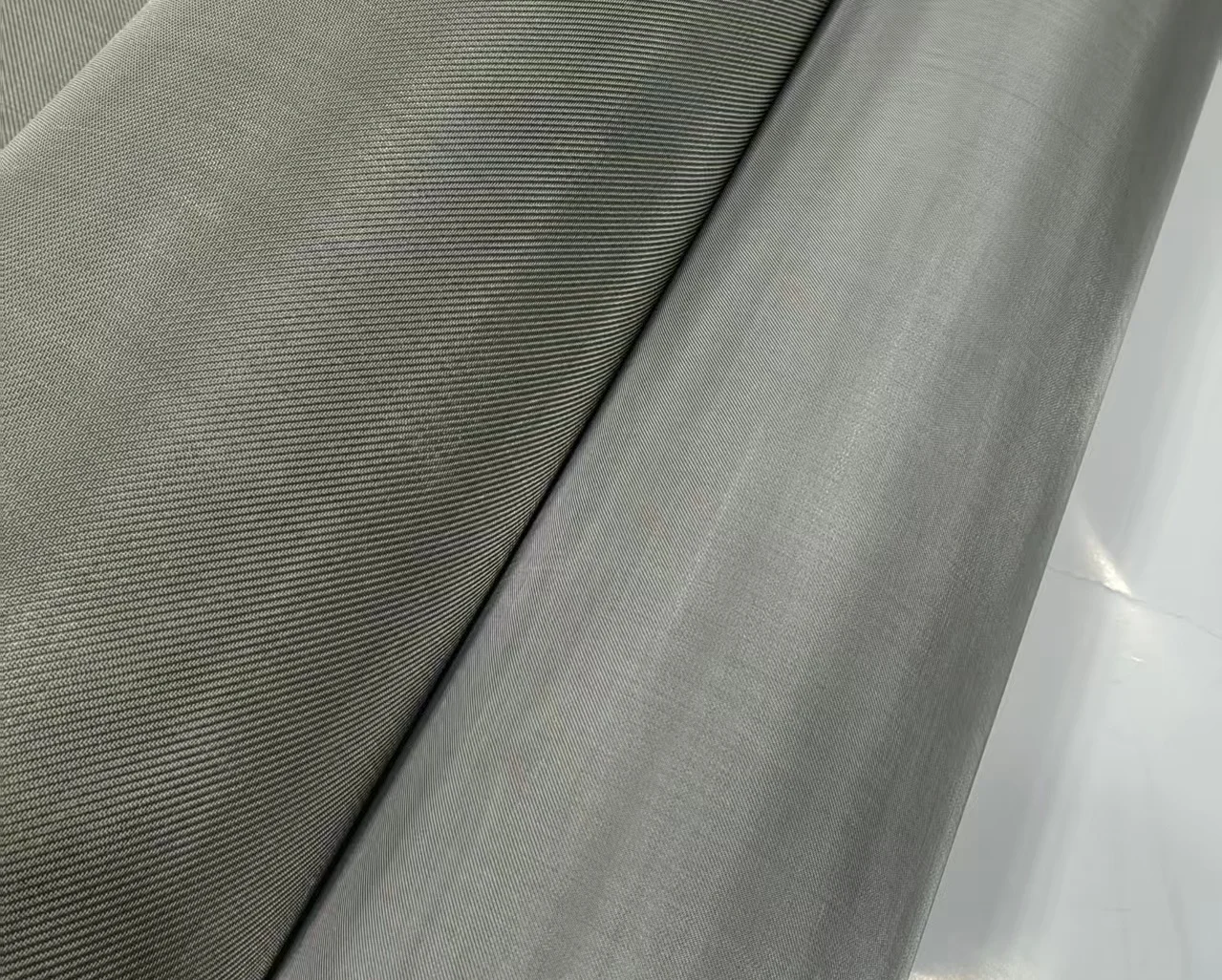

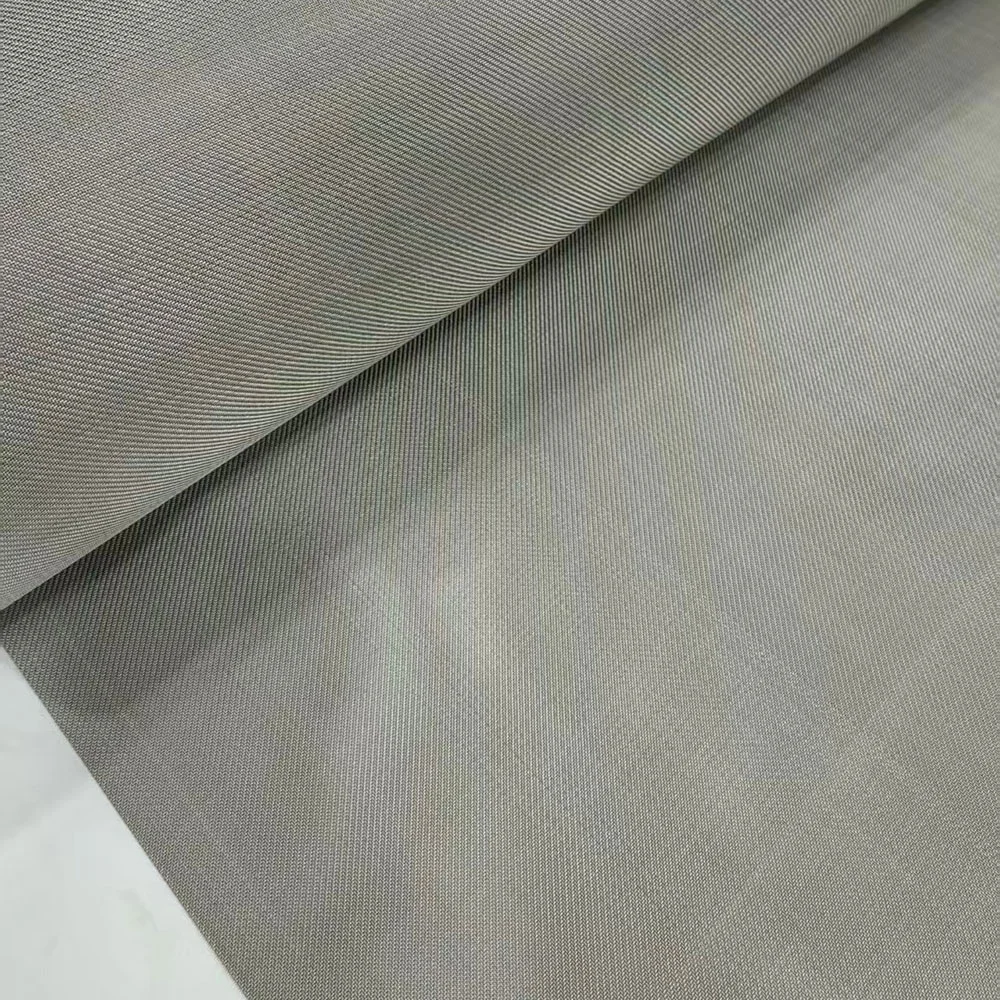

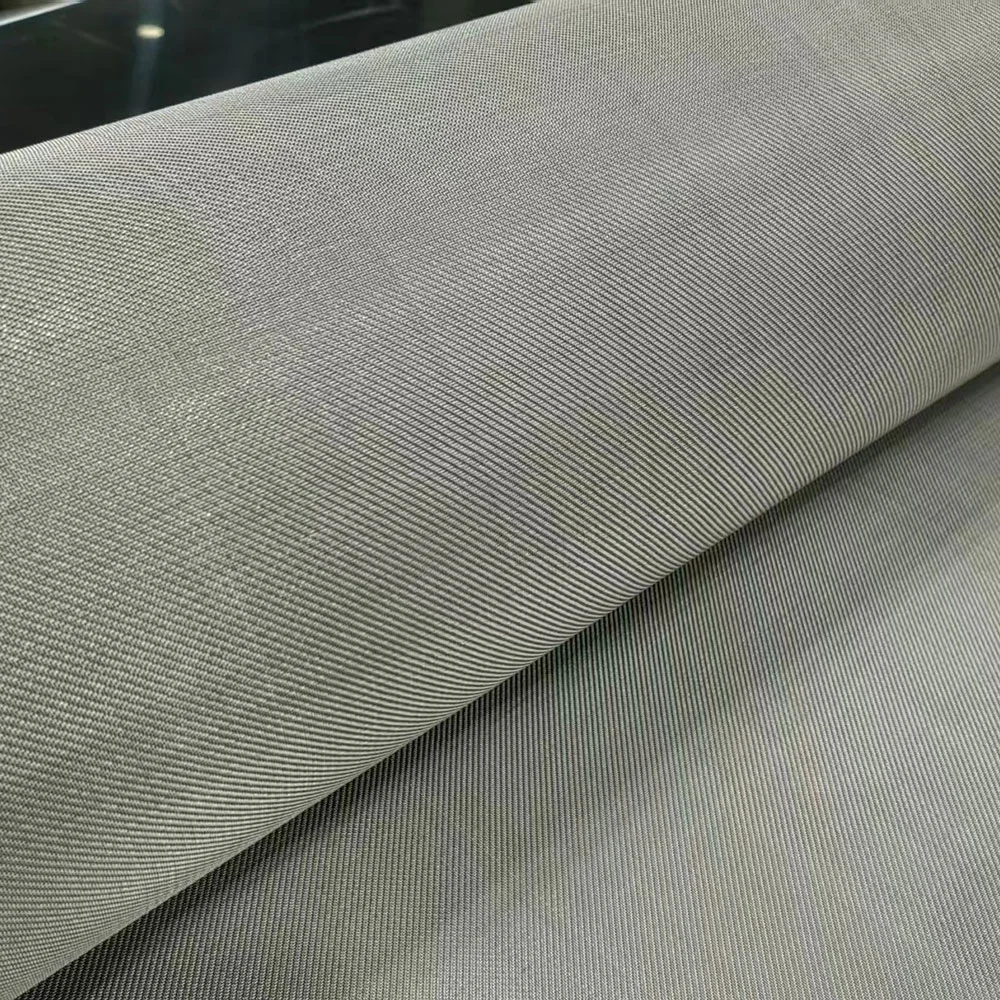

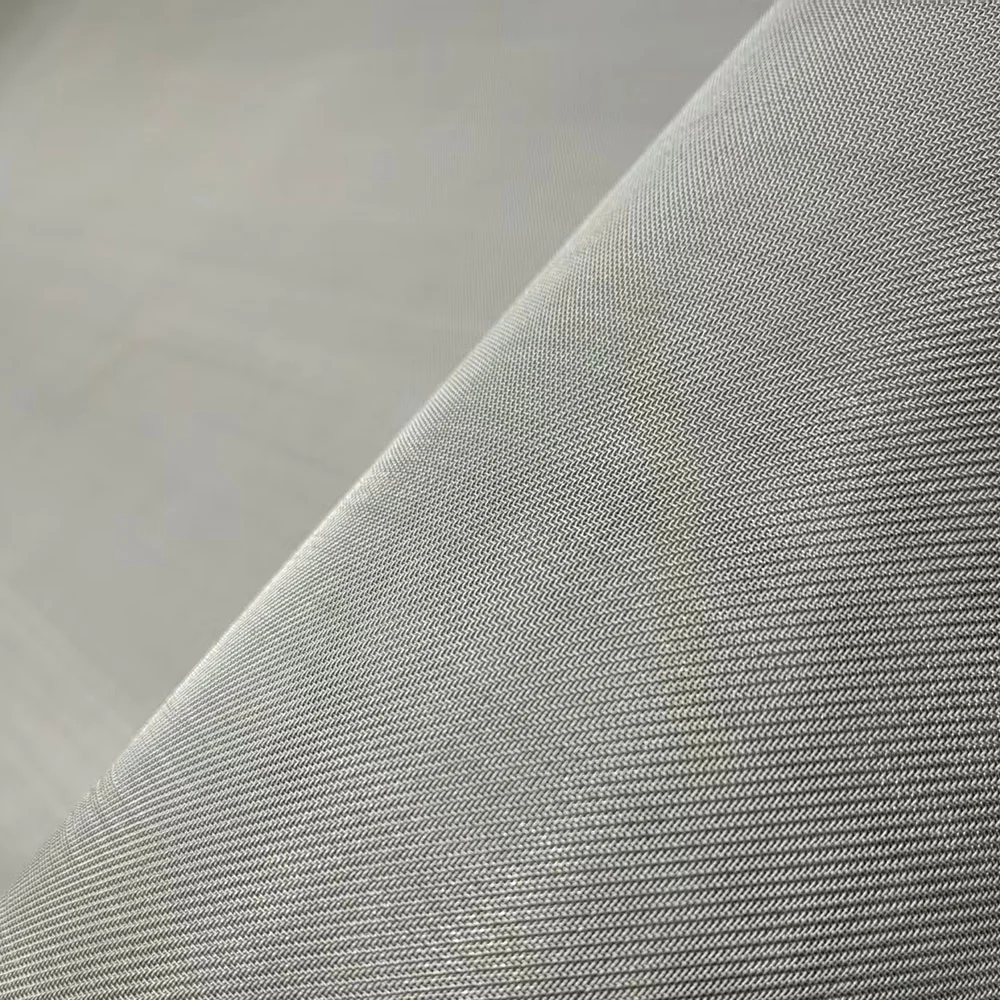

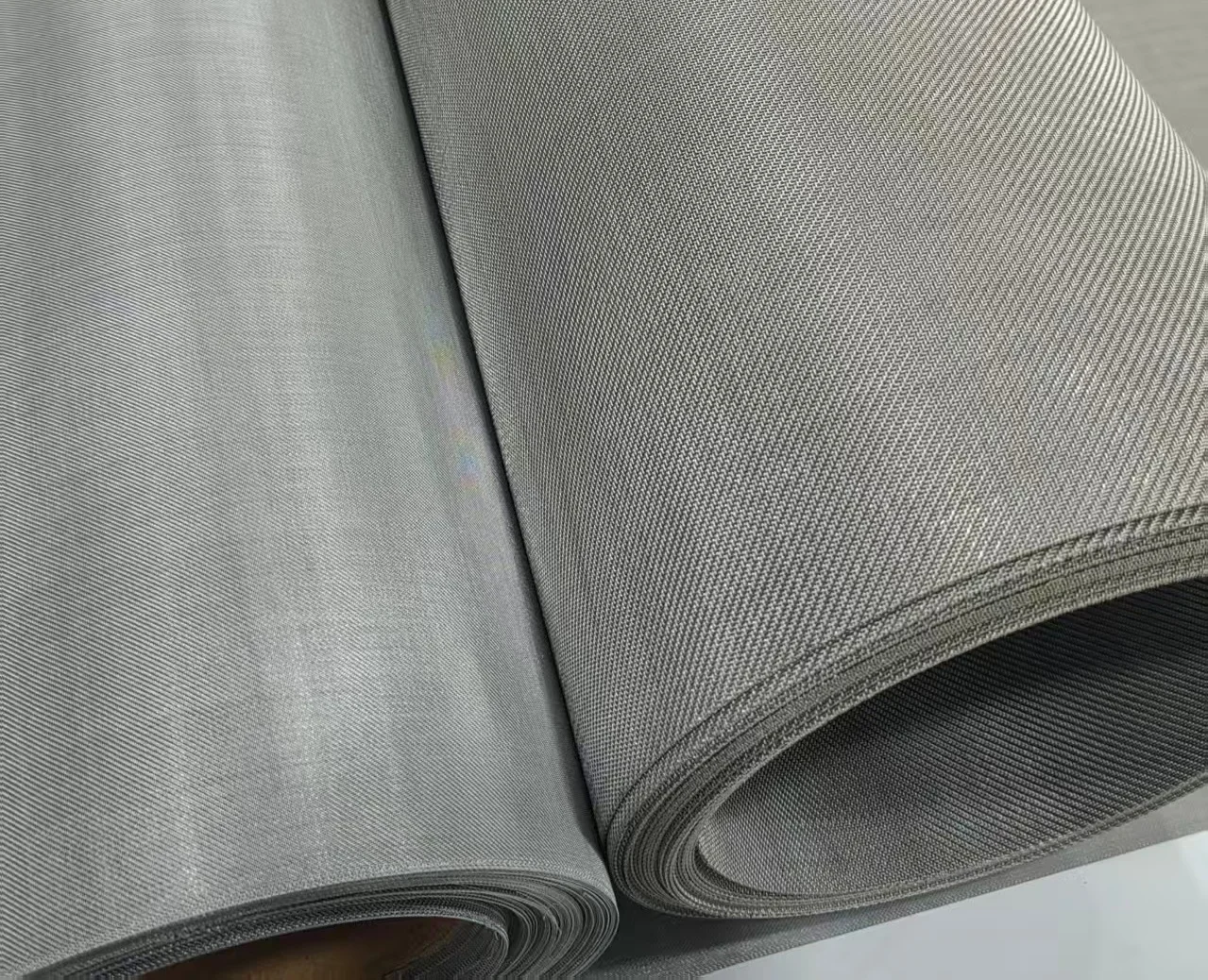

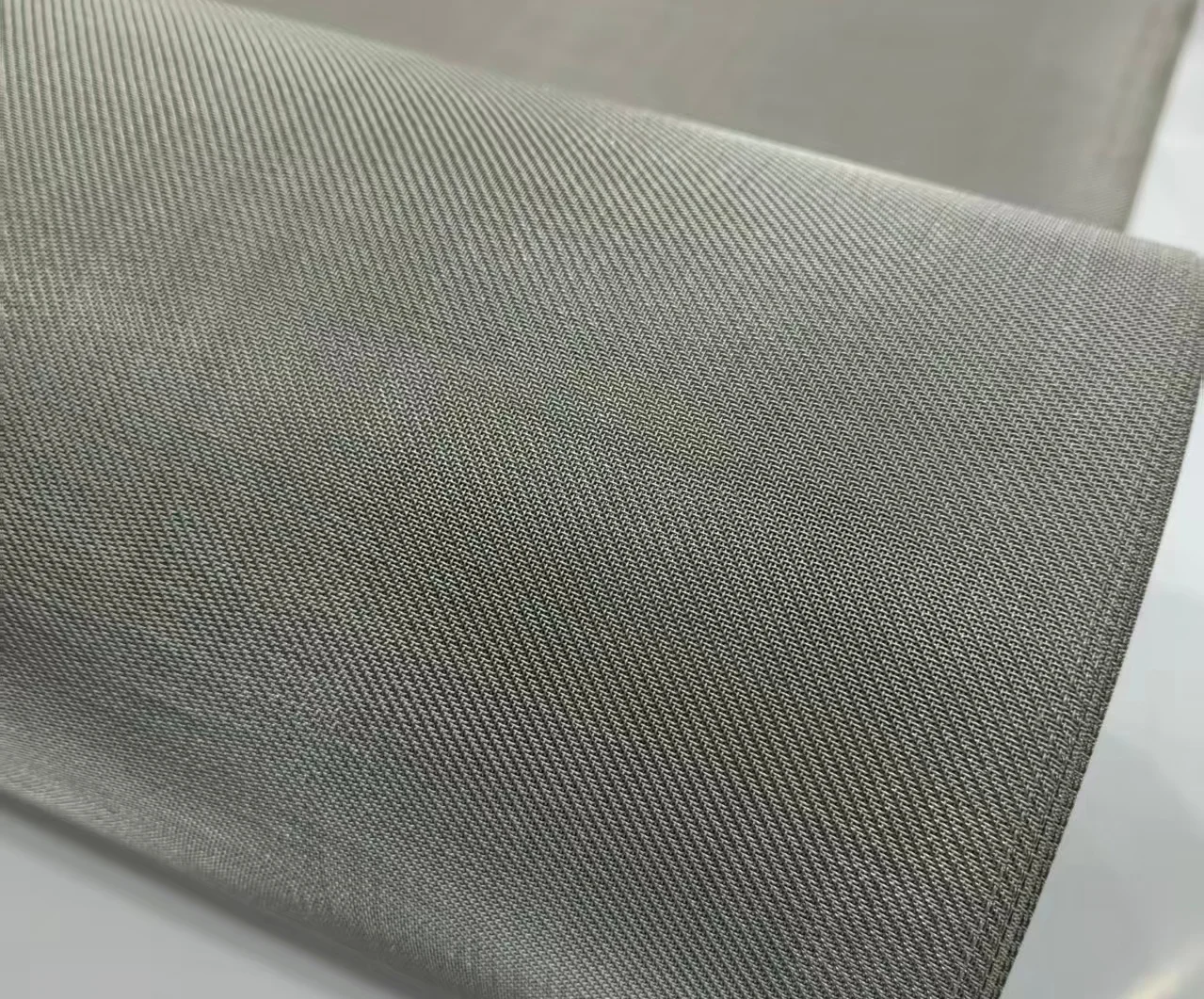

Photos Display of 321 Stainless Steel Wire Mesh
Applications of 321 Stainless Steel Wire Mesh
321 stainless steel wire mesh is widely used in medium to high temperature environments due to its excellent heat resistance, oxidation resistance, and resistance to intergranular corrosion. With stable structure and reliable filtration performance, it is suitable for long-term continuous operation. Typical applications include:
High-Temperature Filtration and Separation: Used for filtering and separating high-temperature gases, fumes, and particles in demanding thermal conditions.
Petrochemical Industry: Applied in reactors, pipelines, and high-temperature media filtration systems, maintaining stable performance in aggressive chemical environments.
Heat Treatment and Furnace Equipment: Used as protective screens, support meshes, and filtration components in industrial furnaces, ovens, and heat treatment systems.
Aerospace Applications: Suitable for filtration, protection, and structural support in high-temperature aerospace components where material stability is critical.
Food Processing and Pharmaceutical Industries: Used for screening, filtration, and protection in processes requiring heat resistance, corrosion resistance, and ease of cleaning.
Machinery Manufacturing and Industrial Equipment: Applied in ventilation systems, protective covers, and screening components operating under high-temperature conditions.

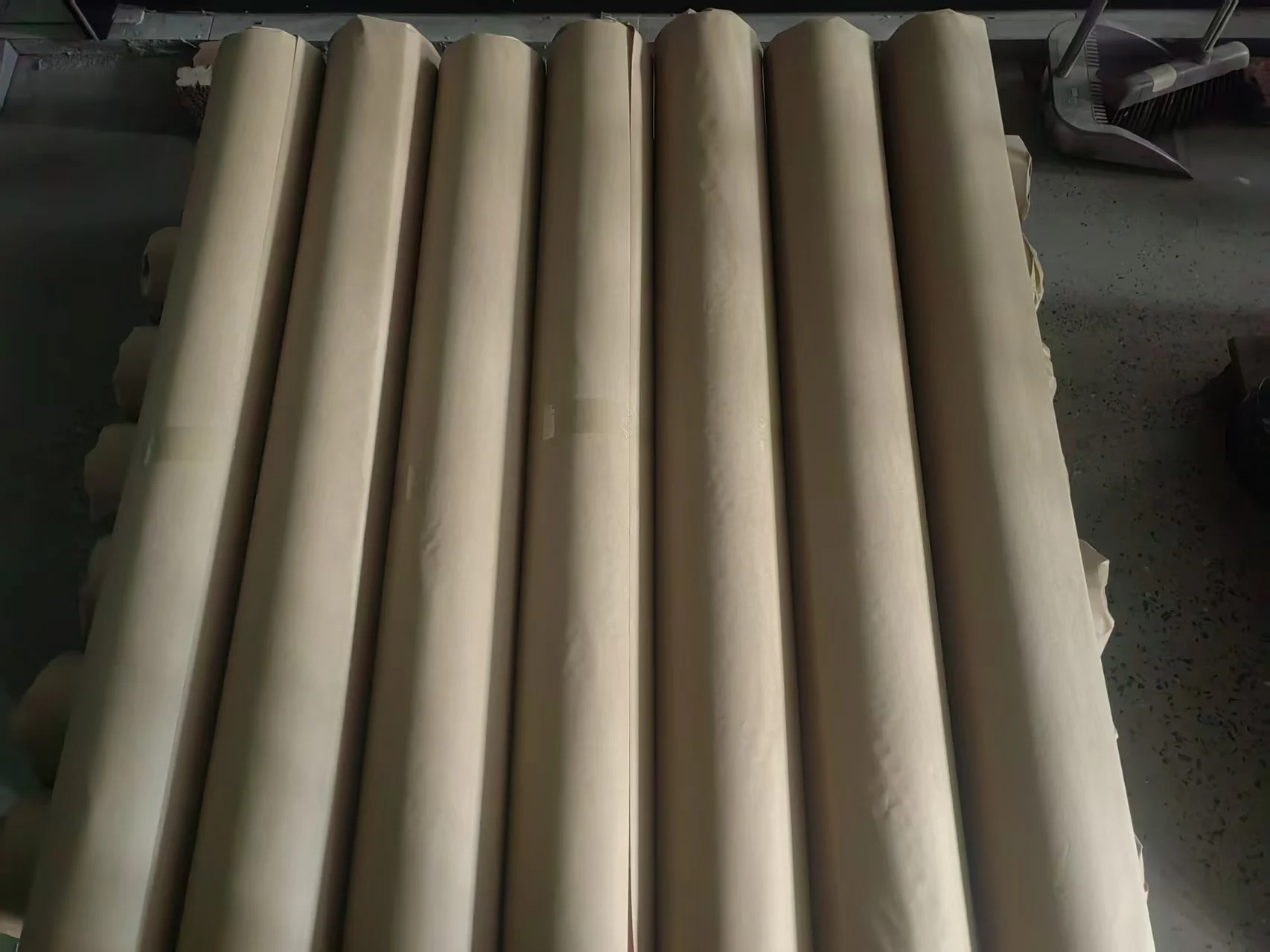

Packaging of 321 Stainless Steel Wire Mesh

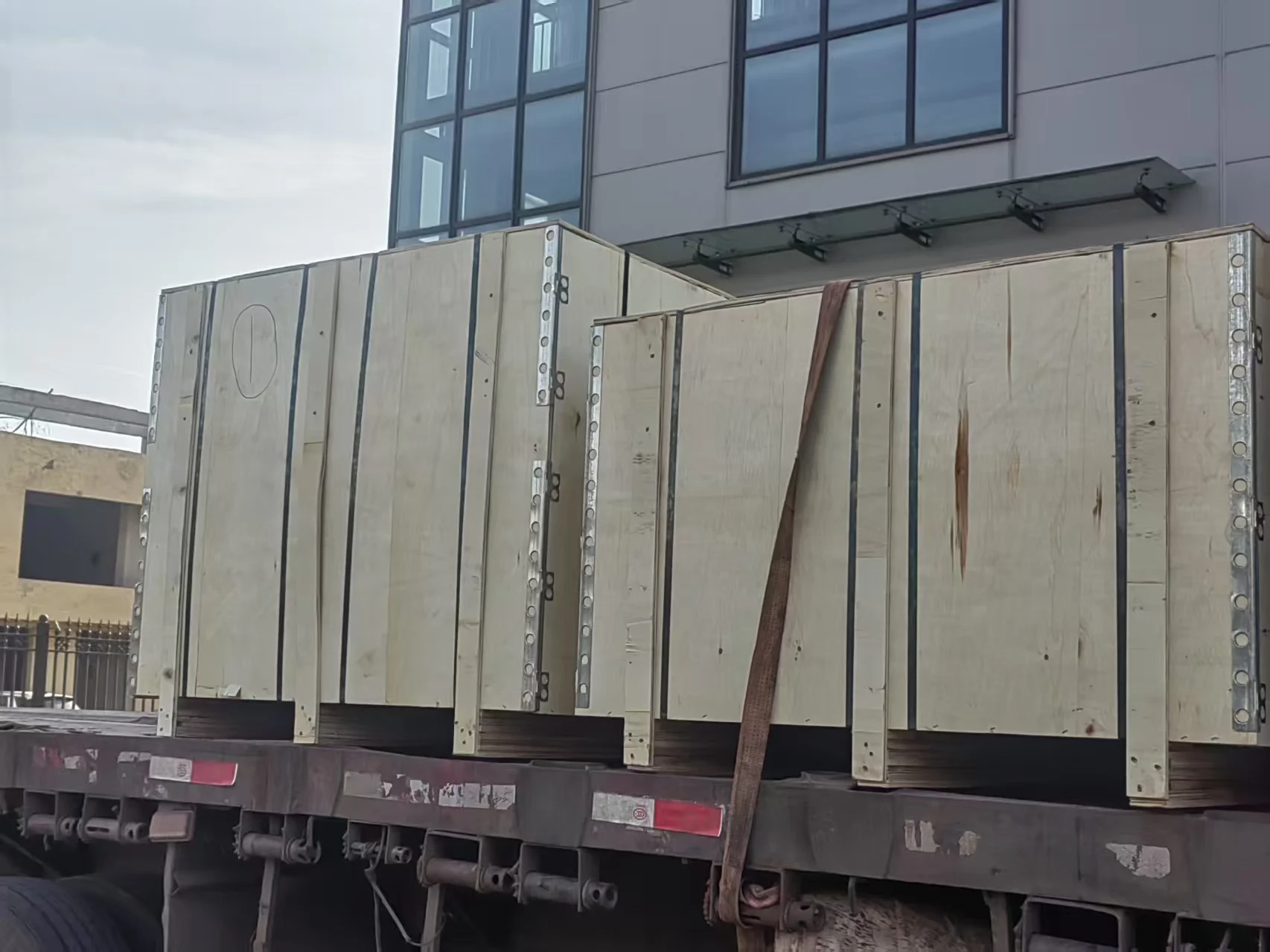

321 stainless steel wire mesh is carefully packed prior to shipment according to its specifications and transportation requirements. The mesh is typically protected with moisture-resistant and anti-corrosion materials, and wrapped with plastic film or waterproof paper to prevent damage from humidity, dust, and external impact during storage and transportation. Products can be packed in rolls or cut-to-size sheets based on customer requirements, with outer packaging using strong cartons or wooden cases suitable for both domestic and export shipping. Pallet packaging and customized packing solutions are also available upon request to ensure the product remains in excellent condition during long-distance transportation.
