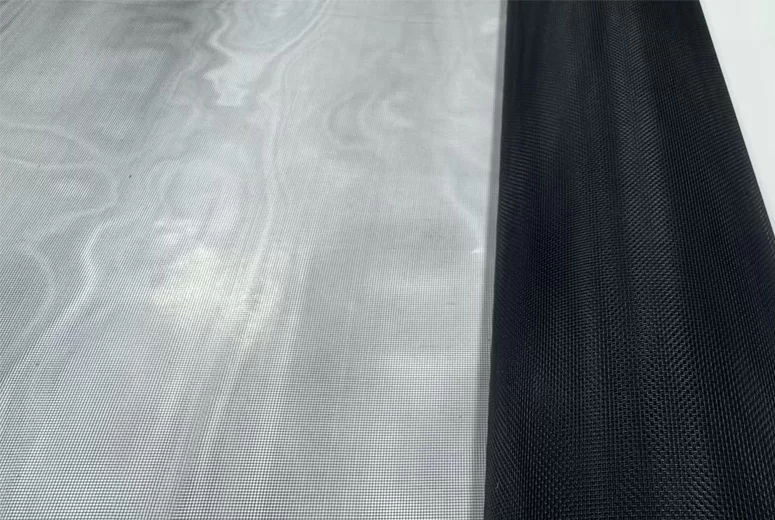

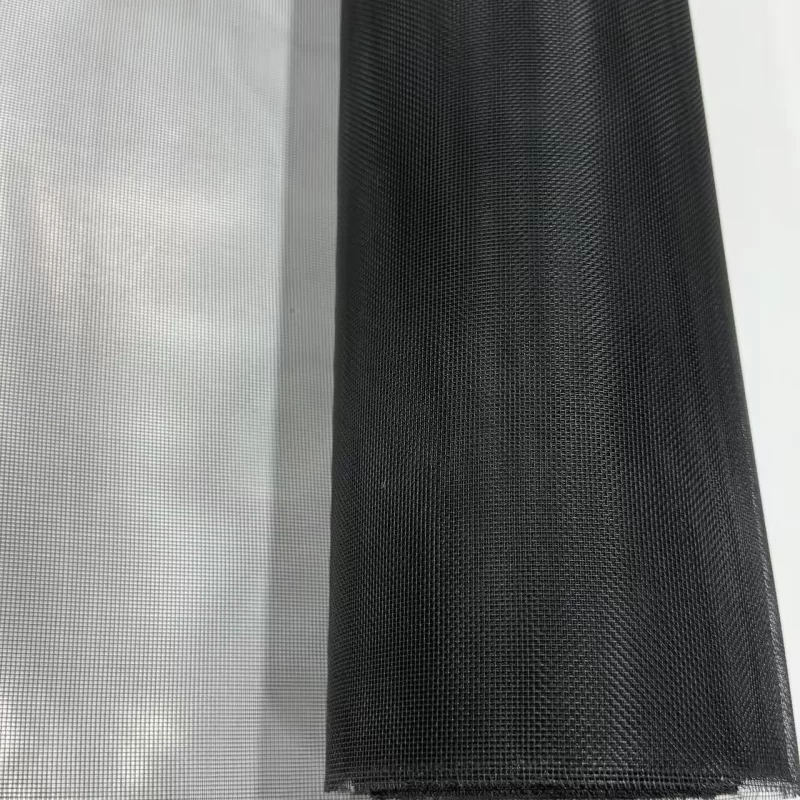

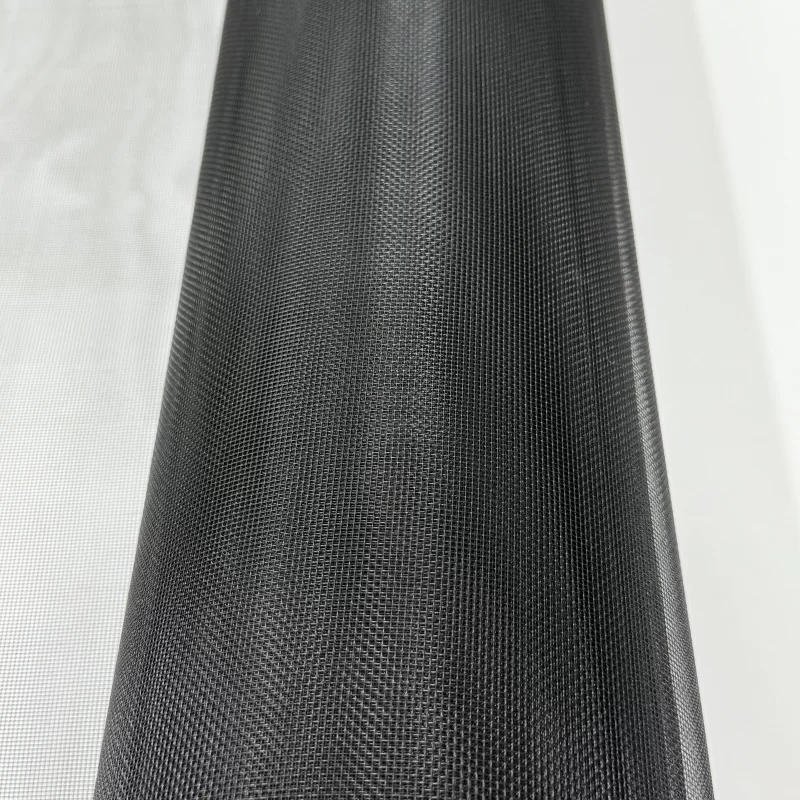

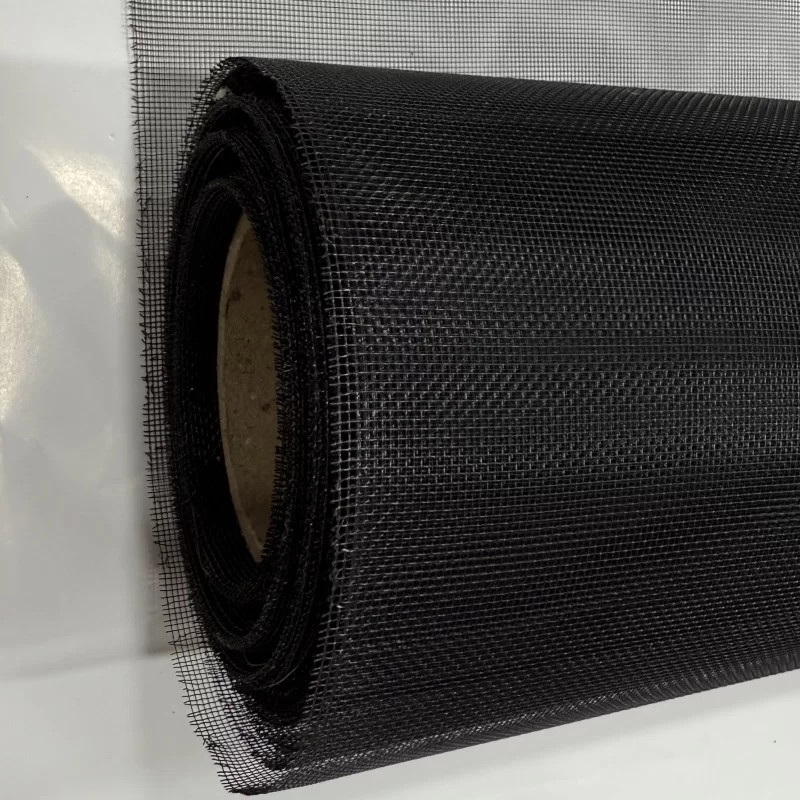

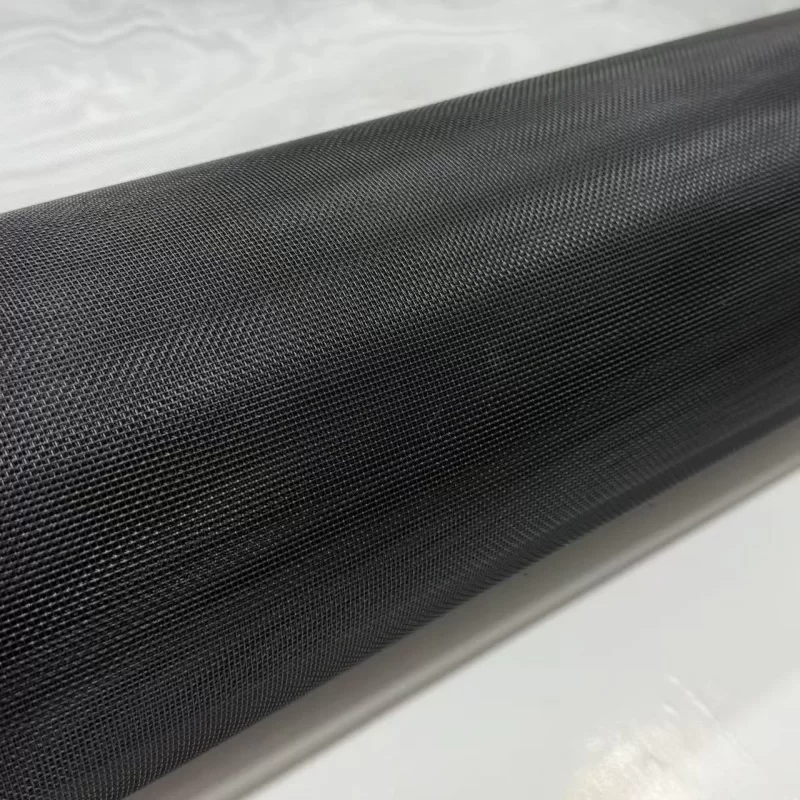

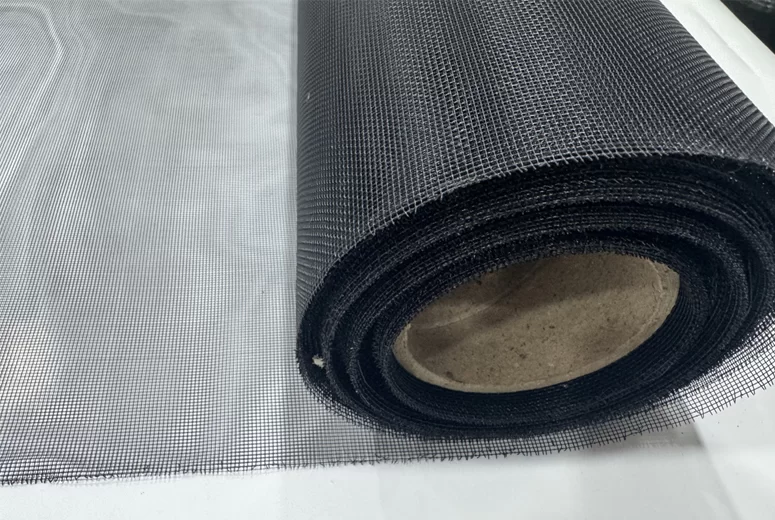

18 Mesh Marine Grade 316 Stainless Fly Screen Mesh

Name: 18 Mesh Grade 316 Stainless Steel Fly Insect Screen Mesh Supplier
Availability: InStock
Rating: 4.5 (89 reviews)

Our 18 mesh marine grade 316 stainless fly screen mesh is meticulously designed for unmatched durability and functionality. It offers superior corrosion resistance—outperforming 304 stainless steel in resisting salt spray, chemical erosion, and acidic or alkaline environments. Its marine-grade quality makes it the ideal choice for pest control in extreme conditions such as high humidity, coastal zones, or areas exposed to acid rain. Even with prolonged outdoor exposure, the mesh remains clean and rust-free. The unique open-weave design ensures optimal airflow and clear visibility, while the mesh is easy to cut and install, making it perfect for both residential and commercial applications.

Send Email Download

Why Use 316 Material

316 stainless steel is commonly used in marine environments due to its exceptional corrosion resistance, especially against seawater, chemicals, and other corrosive substances. Compared to 304 stainless steel, 316 offers superior resistance to acids and alkalis, ensuring long-term stability in harsh environments. With a nickel content of 10% to 14%, 316 stainless steel provides excellent corrosion resistance. For window and door screens, we require a more durable material to ensure years of use, making 316 the top choice.

How Do We Produce

18 mesh marine grade 316 stainless fly screen mesh is made by weaving high-quality 316 stainless steel wire into a mesh structure through high-precision weaving equipment, and then going through processes such as cleaning and powder coating.

Specifications

Material: 316 marine grade stainless steel wire

Wire Diameter: 0.19mm

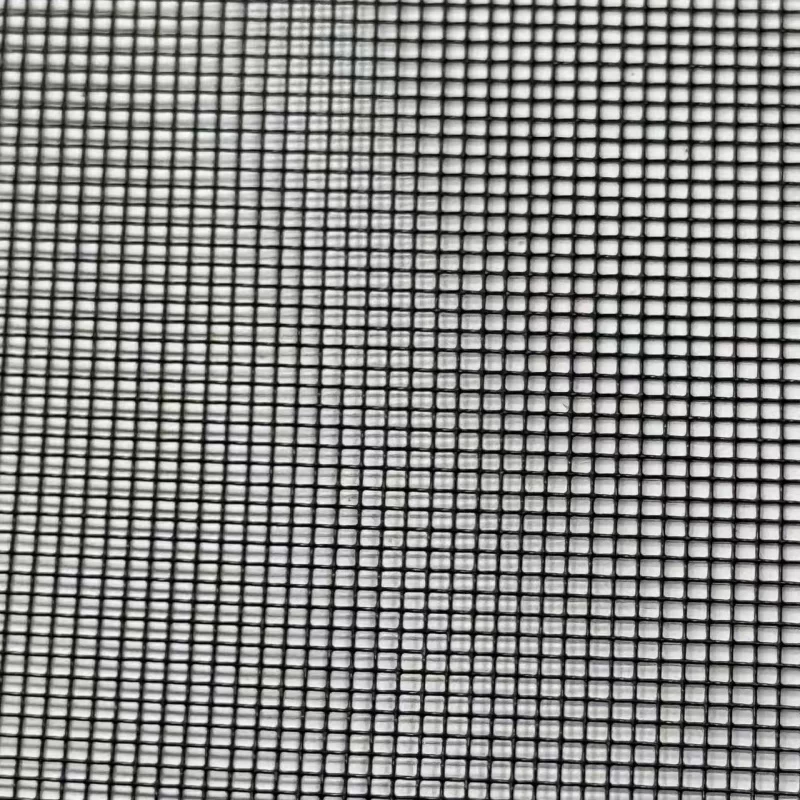

Mesh Count: 18×16

Finish: Black polyester coated

Color: Black

Standard Sizes:

914mm x 30M

1220mm x 30M

Other size can be customized

Packing: Each roll is packed in a cardboard box and then placed in a plywood wooden box

Features

Ease of Use and Versatility:Despite its robust composition, the Marine Grade Stainless Insect Mesh is surprisingly easy to handle and install. It can be cut effortlessly with standard kitchen scissors, a testament to its user-friendly nature. This ease of manipulation makes it perfect for DIY projects and professional installations alike, offering flexibility in use across domestic and commercial settings.

Superior Protection: Effectively keeps insects out while allowing natural light and fresh air to pass through.

High Durability: Built to last with marine-grade stainless steel that resists corrosion and wear.

Aesthetic Appeal: Offers a neat and unobtrusive appearance that does not detract from the aesthetic of a building.

Flexibility: Easy to customise and fit into various frames and structures, accommodating a wide range of applications.

Low Maintenance: Requires minimal upkeep due to its high resistance to environmental factors.

316 Marine Grade Stainless Steel Mesh Characteristics

Offers maximum strength and long-lasting durability.

Provides excellent ventilation and visibility.

The black epoxy coating enhances corrosion resistance.

Features uniform apertures and clarity, ensuring unobstructed views.

The security screen blocks up to 60% of harmful UV rays.

Comes with a 10-year warranty.

What's The Difference Between 316 Marine Grade And 304 Grade Stainless Steel Mesh?

Both 304 and 316 stainless steel contain similar amounts of chromium, which helps protect against rust and corrosion. However, 316 stainless steel includes an additional 2–3% molybdenum, a tough, silver-white element that significantly enhances its resistance to salt spray and chloride corrosion.

When exposed to seawater, salty air, or coastal humidity, the added molybdenum gives 316 stainless steel outstanding corrosion resistance. Like 304, it is durable, easy to fabricate, weld, and maintain—but it offers superior protection in harsh and corrosive environments.

When it comes to installing safety screens or security mesh for your home, it’s often a one-time job. Choosing marine-grade 316 stainless steel mesh ensures longer-lasting durability and better protection, making it the more reliable and worthwhile choice.

Installation And Maintenance

Installation: The 316 marine-grade stainless steel mesh is typically installed using hanging or tensioning methods, making it adaptable to different structures and requirements.

Maintenance: While 316 stainless steel is highly corrosion-resistant, regular cleaning and inspection of the mesh are necessary. Any damage should be promptly repaired to ensure its long-term performance.

Applications

One-Way Vision Privacy: Designed based on the optical principle that, under correct lighting conditions, people outside cannot see inside clearly, while those inside have an unobstructed view outside.Perfect for high-rise buildings, offices, and residential homes to ensure privacy without blocking natural light.

Residential Windows and Doors: Ideal for fly screens, insect-proof doors, and security windows.Provides ventilation, daylight, and insect control without compromising visibility.

Marine and Coastal Environments: Made from marine grade 316 stainless steel, offering superior corrosion and rust resistance in salt-laden coastal air.Commonly used in seaside homes, resorts, hotels, and yachts to ensure durability and long service life.

Security & Privacy Enhancement: Strong woven 316 stainless steel wire offers extra resistance to cutting or tampering, enhancing property security.Can be combined with limited vision designs for added daytime privacy.
