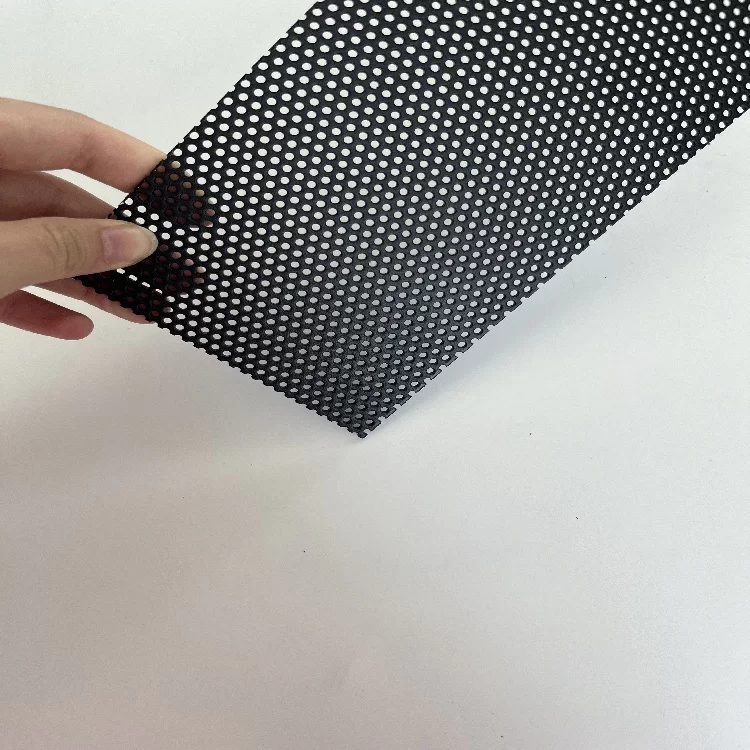

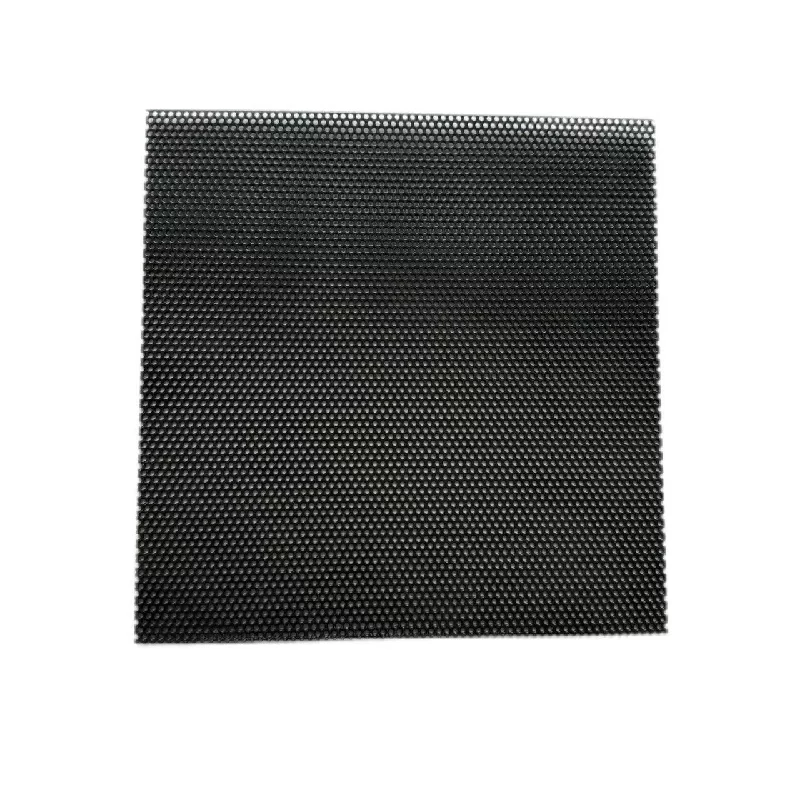

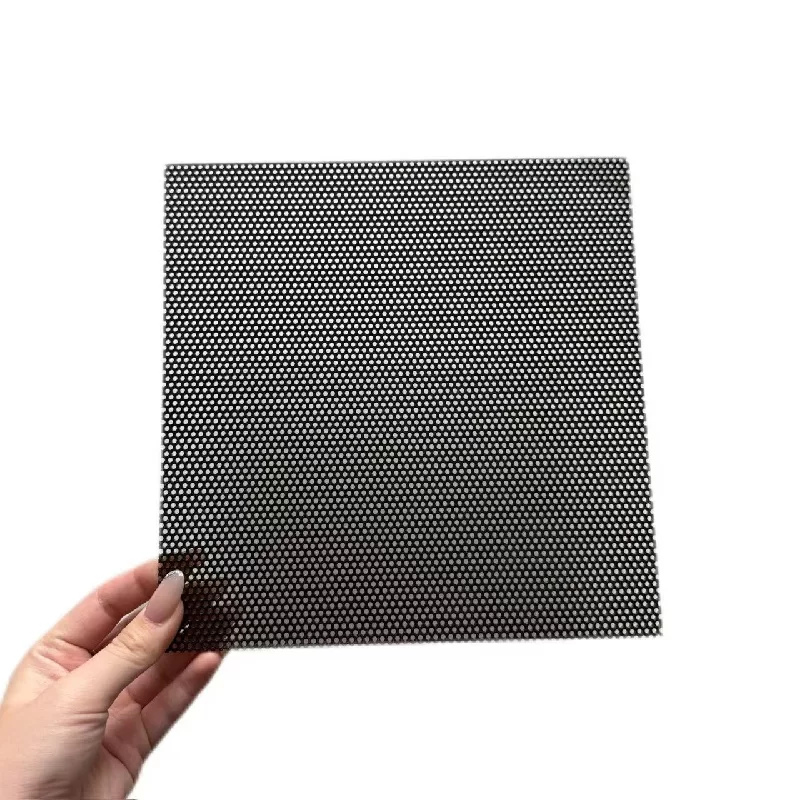

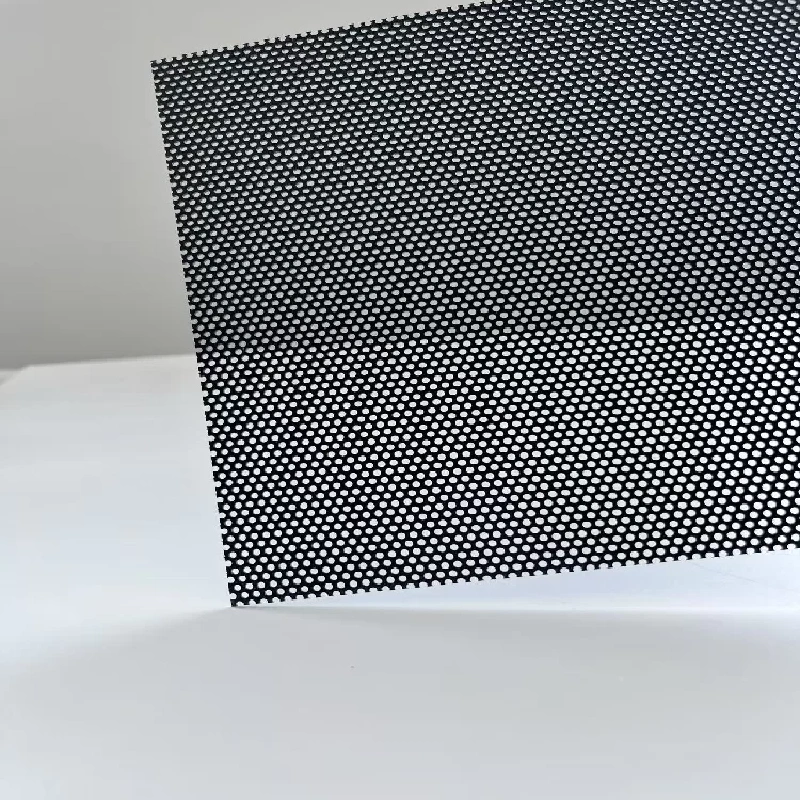

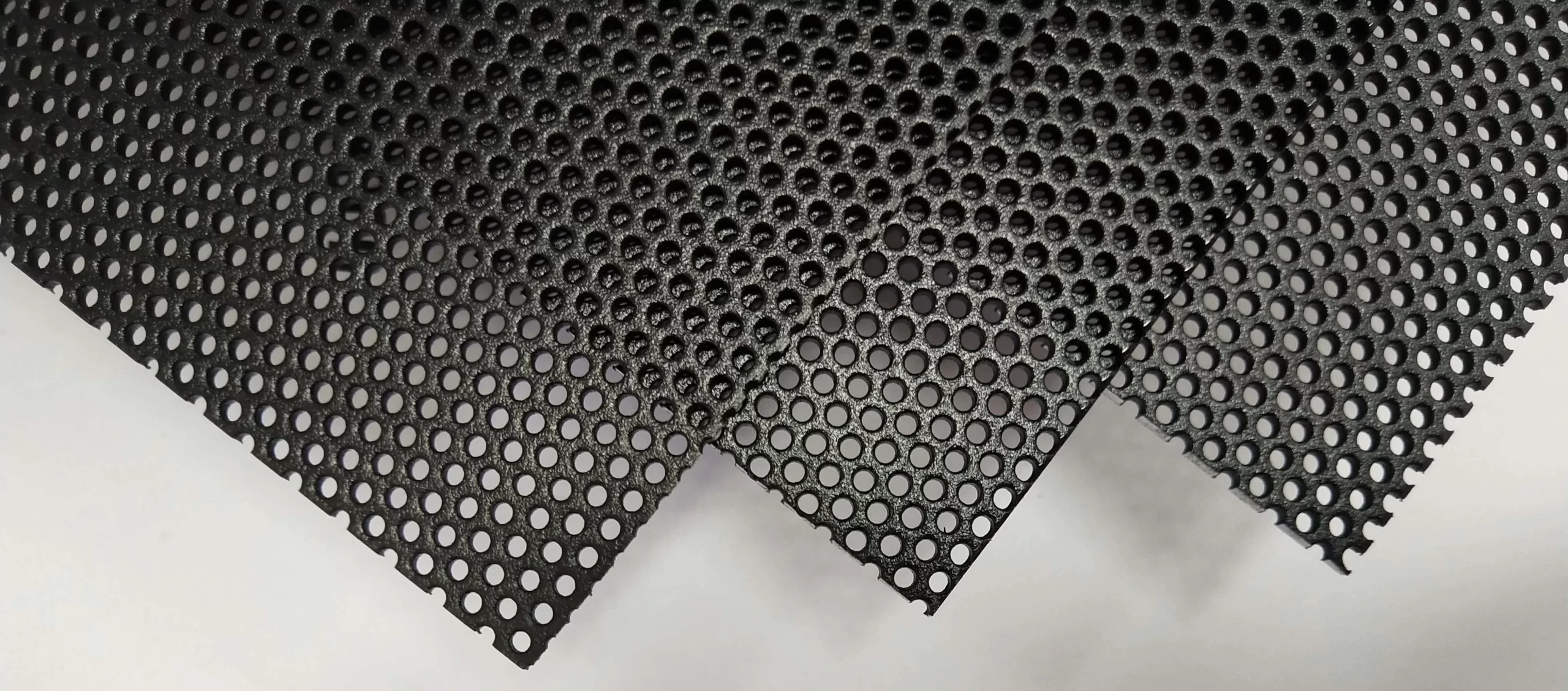

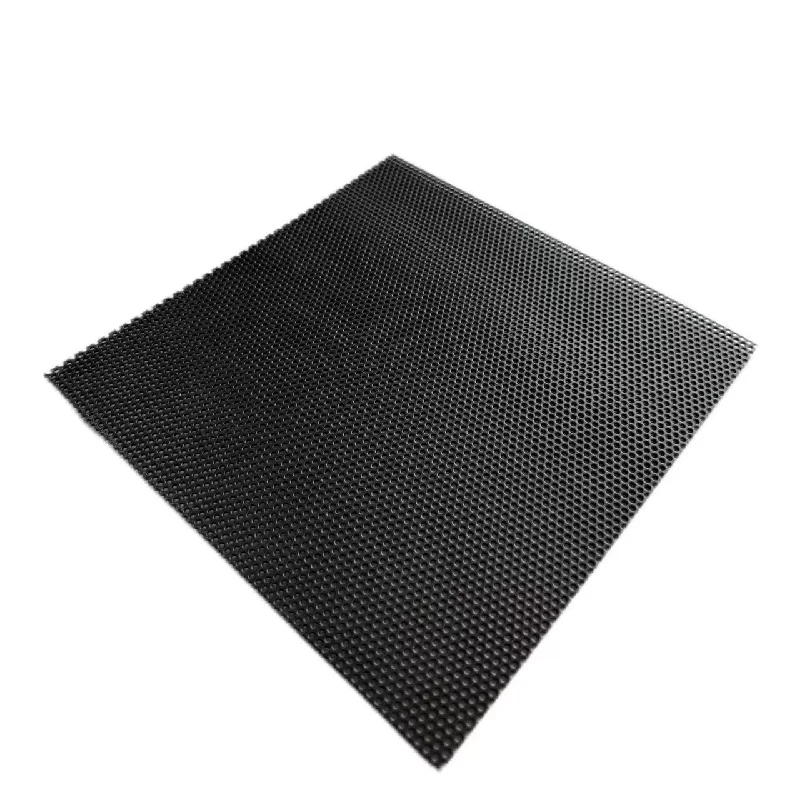

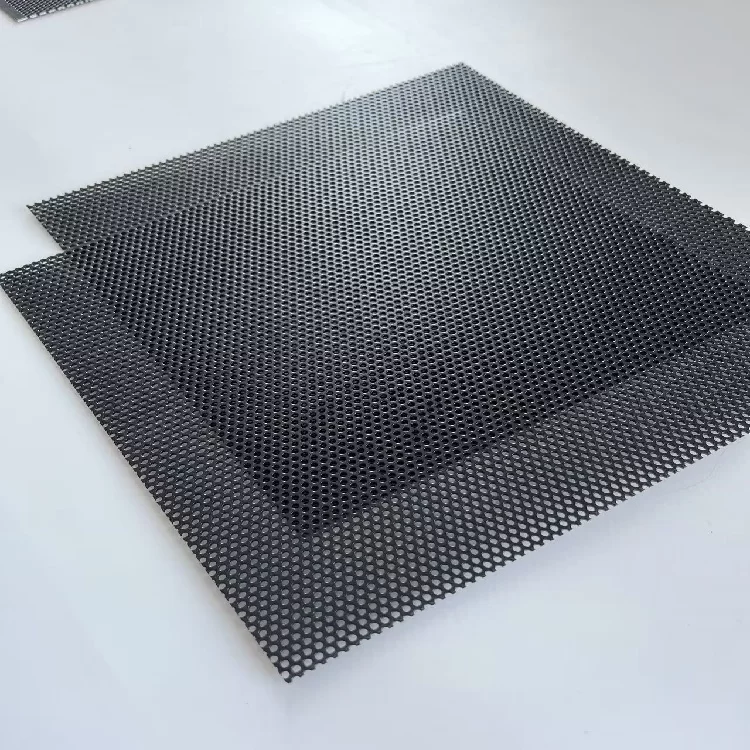

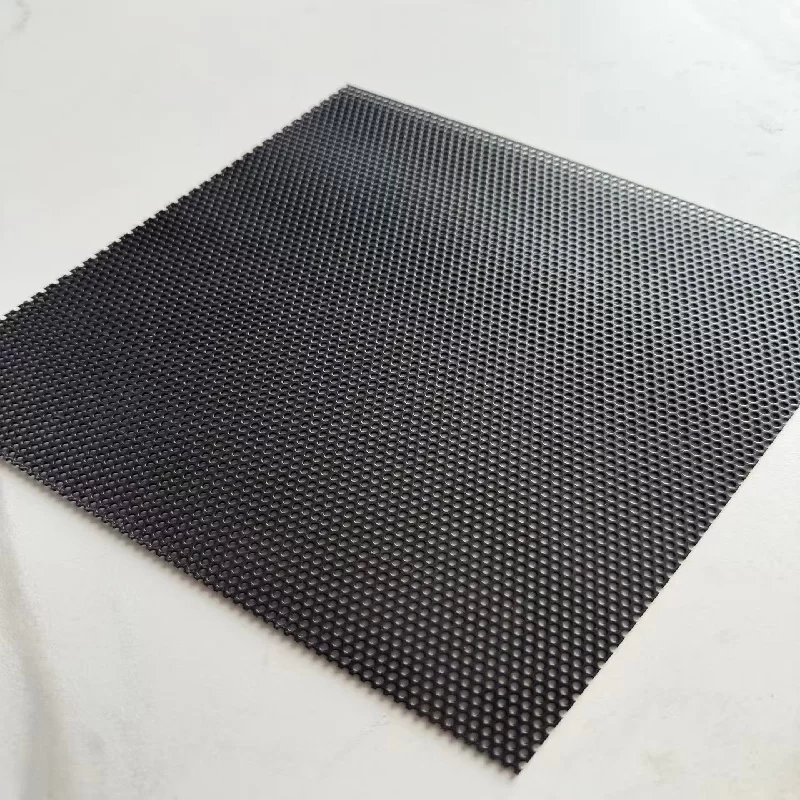

1.8mm Perforated Aluminium Security Mesh

The 1.8mm perforated aluminum security mesh is a high-strength protective product made from premium aluminum sheets using precise perforation technology, followed by a durable outdoor-grade powder coating. It is widely used in security screen doors, windows, architectural ventilation panels, and protective partitions.


This mesh is produced using either standard 1.6mm thick 1060-grade solid aluminum or marine-grade 5052 aluminum alloy. After perforation and powder coating, the final sheet thickness reaches approximately 1.75 to 1.8mm. Please note that minor dimensional tolerances may occur during production and measurement. Perforated aluminum mesh offers good corrosion resistance overall—1060-grade aluminum is the most cost-effective option, providing reliable durability at an economical price. For more demanding environments, the marine-grade 5052 aluminum mesh delivers superior performance under harsh weather conditions, making it an ideal choice where long-term resilience is essential.


Specifications


Material: Aluminium

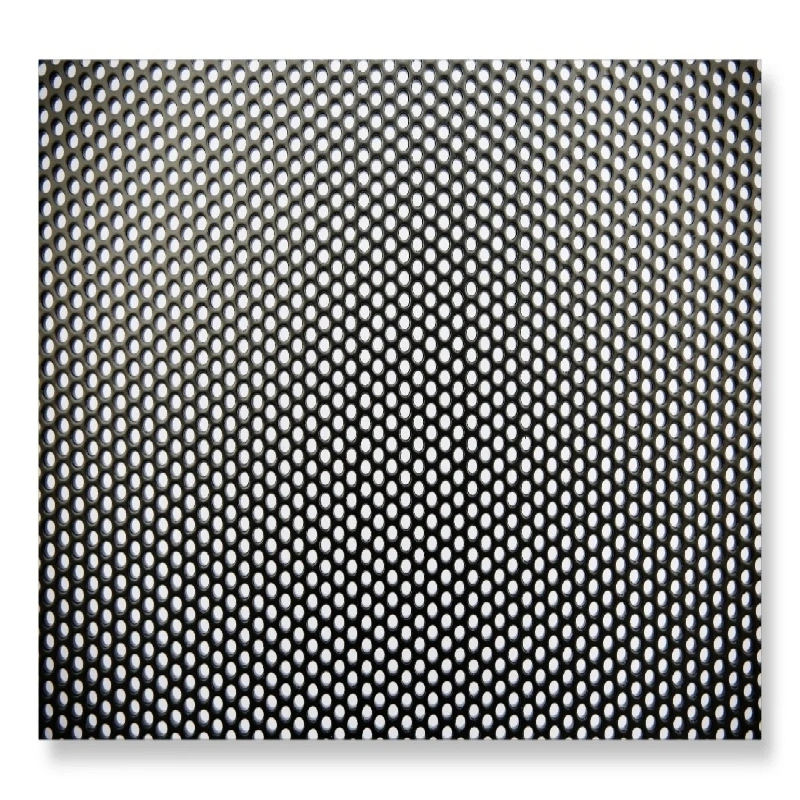

Pattern: 60° staggered pattern

Material Options: Regular 1060 grade aluminium panels and Marine grade 5052 aluminium panels

Thickness Before Powder Coated: 1.6mm,

Thickness After Powder Coated: 1.75-1.8mm

Hole Dia/Centers: 2mm/3mm or 2.3mm/3.7mm, opening: 40% or 35%

Standard Sheet Sizes:

750 x 2000mm / 750x2200mm / 750x 2400mm

900 x 2000mm / 900x2200mm / 900 x 2400mm

1200 x 2000mm / 1200x2200mm / 1200 x 2400mm

Other sizes can be customized.

Surface Treatment: Powder coating

Finish: Powder coated matte black, other colors can be customized

Packing: Export standard plywood crate

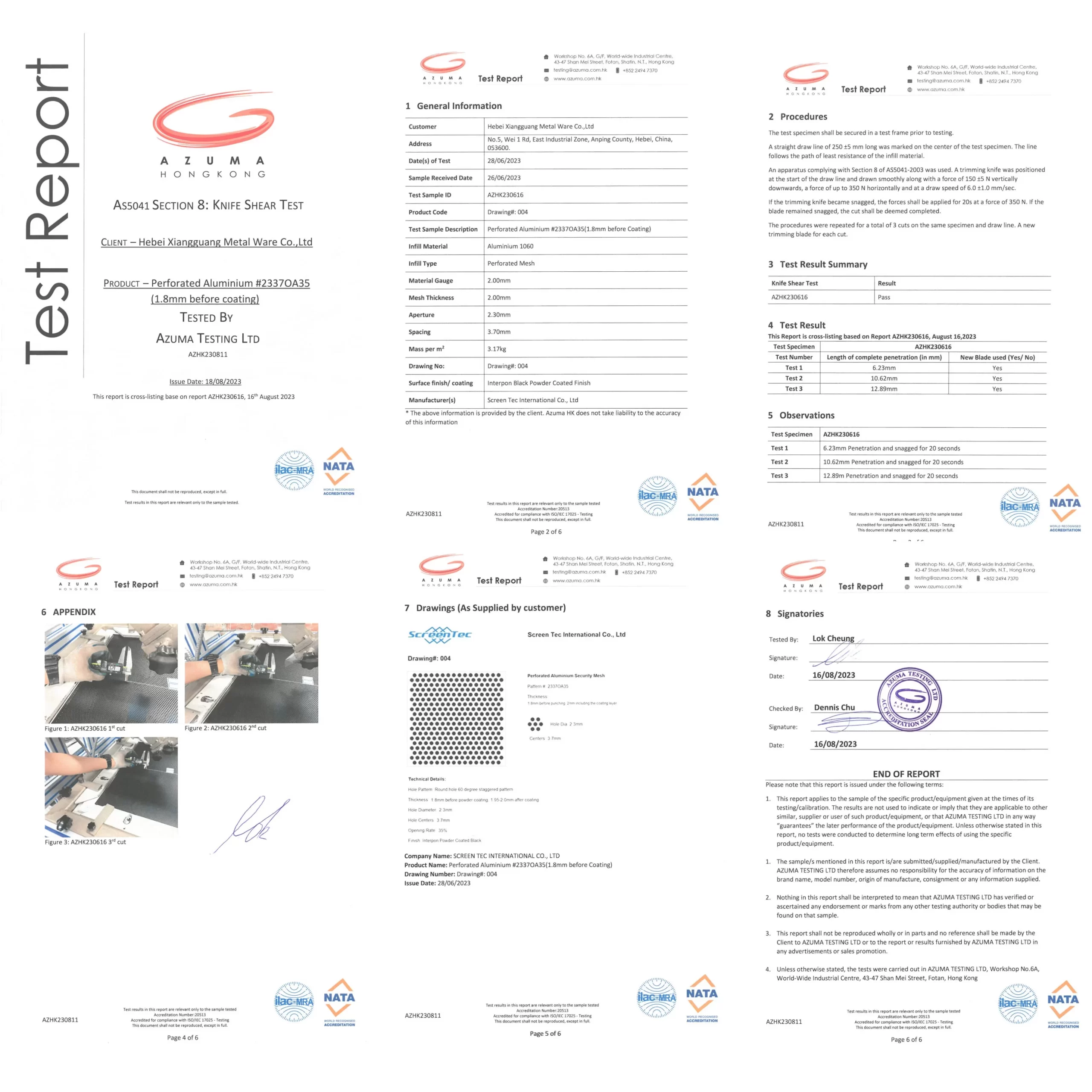

Knife Shear Test: Pass

Major Characteristics


Attractive Appearance: The surface features a vibrant, glossy finish with rich color depth, enhancing the aesthetic appeal for modern architectural applications.

Excellent Corrosion Resistance: Highly resistant to corrosion, acids, and alkalis, making it ideal for use in harsh or coastal environments.

Long Service Life: The powder coating is firmly bonded to the aluminum surface, making it highly durable, resistant to peeling, and less prone to cracking or flaking over time.

Insulated Outer Layer: The coated surface provides insulation, reducing the risk of surface conductivity in specific applications.

Eco-Friendly: Aluminum is a fully recyclable material, aligning with sustainable development and environmental protection standards.

Good Ductility: Offers excellent tensile and forming properties, allowing it to be shaped or curved without compromising strength.

Easy Installation: Lightweight and smooth-surfaced panels are easy to handle, transport, and install, reducing labor and time costs.

Customizable Options: Available in various materials, thicknesses, and perforation patterns to suit different design and functional needs.


Benefits


Various Applications: This mesh can be used in a wide range of scenarios, including security screen doors and window panels, making it a practical solution for both residential and commercial properties.

Enhanced Privacy: The unique perforated pattern of the 1.8mm aluminium mesh offers a degree of visual privacy, allowing residents to see outside while preventing outsiders from seeing in—perfect for street-facing doors and windows.

Ensure Proper Air Circulation: Thanks to its perforated design, the mesh allows air to circulate freely, even during rainy weather, while helping to keep rainwater from entering indoors.

Attractive Appearance: Perforated aluminium mesh can be powder-coated in a variety of colors to match different architectural styles and enhance the overall aesthetic of the building.

Higher Cost Performance: Compared to stainless steel mesh, perforated aluminium offers a more affordable and economical security screen option with a high performance-to-price ratio.

Anti-Intrusion Protection: With its strong and rigid structure, the mesh acts as a physical barrier that helps prevent unauthorized entry and enhances the overall safety of the home.


Care & Maintenance


1.Regular Cleaning
 It is recommended to clean the mesh monthly or quarterly.
 Use a soft cloth or sponge with a mild neutral detergent (such as dish soap) to clean the surface.
 Avoid using strong acids, alkalis, or abrasive cleaners, as they may damage the surface coating.
 After cleaning, rinse thoroughly with clean water and wipe dry with a soft cloth.

2.Coating Inspection
 Regularly inspect the mesh for scratches, corrosion, or peeling paint.
 If any issues are found, repair the coating promptly or contact the manufacturer for assistance.

3.Removal of Surface Residue
 If substances such as paint, tree sap, or other residues adhere to the surface, clean them off as soon as possible to prevent staining or corrosion.


Applications

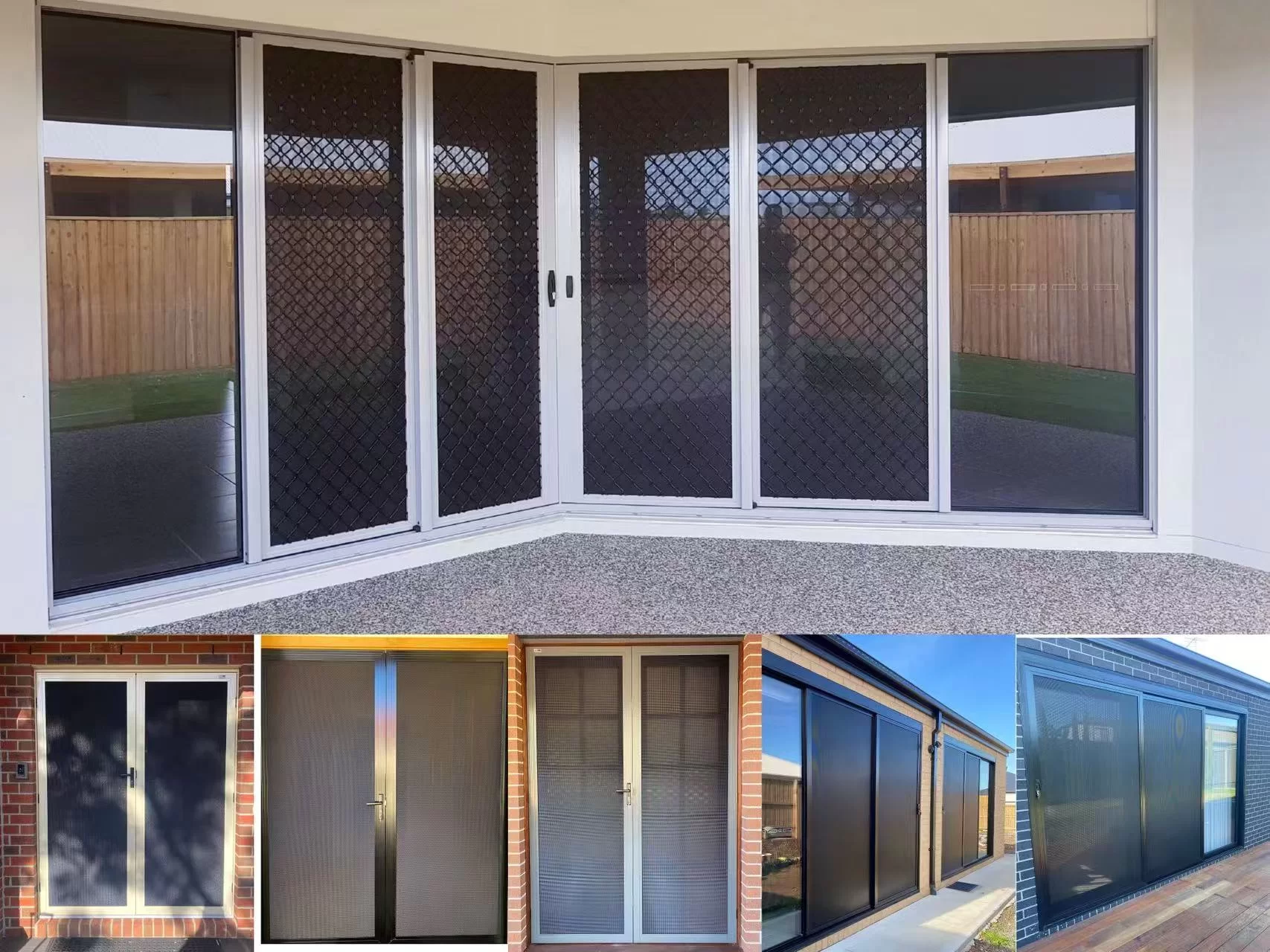

Used for Security Doors and Windows: Widely applied in the door and window systems of residential homes, apartments, villas, and commercial buildings, the mesh serves as a security screen door or insect-proof window screen, offering a combination of protection, ventilation, visibility, and privacy.

Street-Facing or Public-Area Windows: Perfect for windows and doors facing streets, neighbors, or public corridors, it blocks external views and enhances indoor privacy, protecting your family from being seen or disturbed.

Balcony and Patio Enclosures: Ideal for enclosing balconies, patios, and outdoor living spaces, the mesh helps prevent wind and insects, increases safety, and still maintains airflow and a sense of openness.

Ventilation Windows in Kitchens, Bathrooms, and Toilets: Suitable for windows in humid areas like kitchens and bathrooms, it helps block insects and rainwater, prevents privacy exposure, and ensures proper ventilation and air circulation.
